Puma 20 - Mounting the Kerb Climber (RWD)

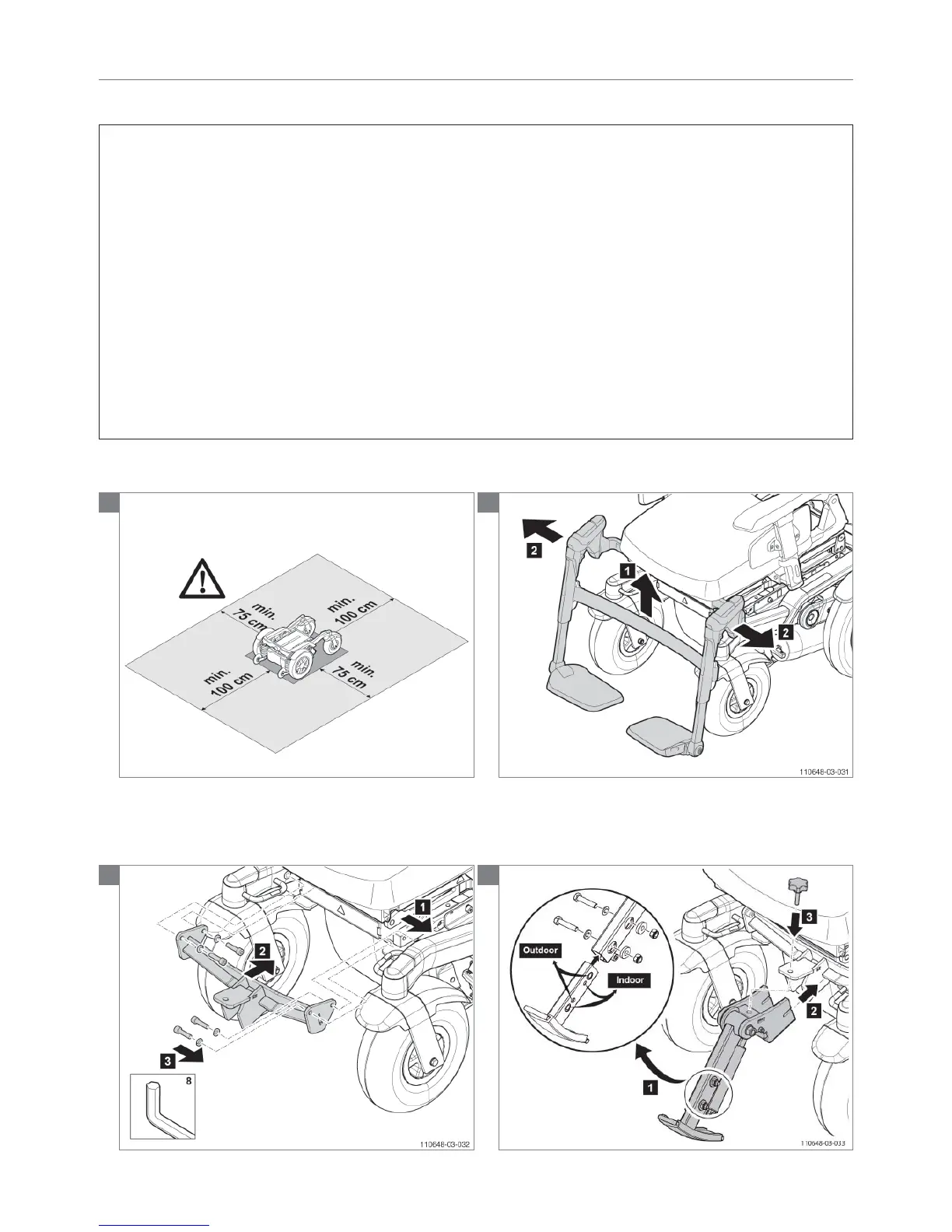

5.2.3 Mounting the kerb climber (RWD)
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
• Remove the legrests.
• Mount the mounting bracket of the kerb climber on the
castor arms.
• Adjust the kerb climber shoe in the right position:
• Indoor use: mounting in the lower holes
• Outdoor use: mounting in the upper holes
• Mount the kerb climber on the mounting bracket.
• Put back the legrests.
Notice
The kerb climber can only be mounted on a RWD!
Relevant article numbers
9007864 Kerb climber Puma 20/40
Tools used
Allen key, 8 mm
Icons
N.a.
1
Note! Suitable work area required!
2
3 4
