Puma 20 - Replacing Anti-Tip Wheels & Bracket

5.2.18 Replacing the anti-tip wheels and bracket
Preparation
Switch off the wheelchair via the remote control.
Instructions

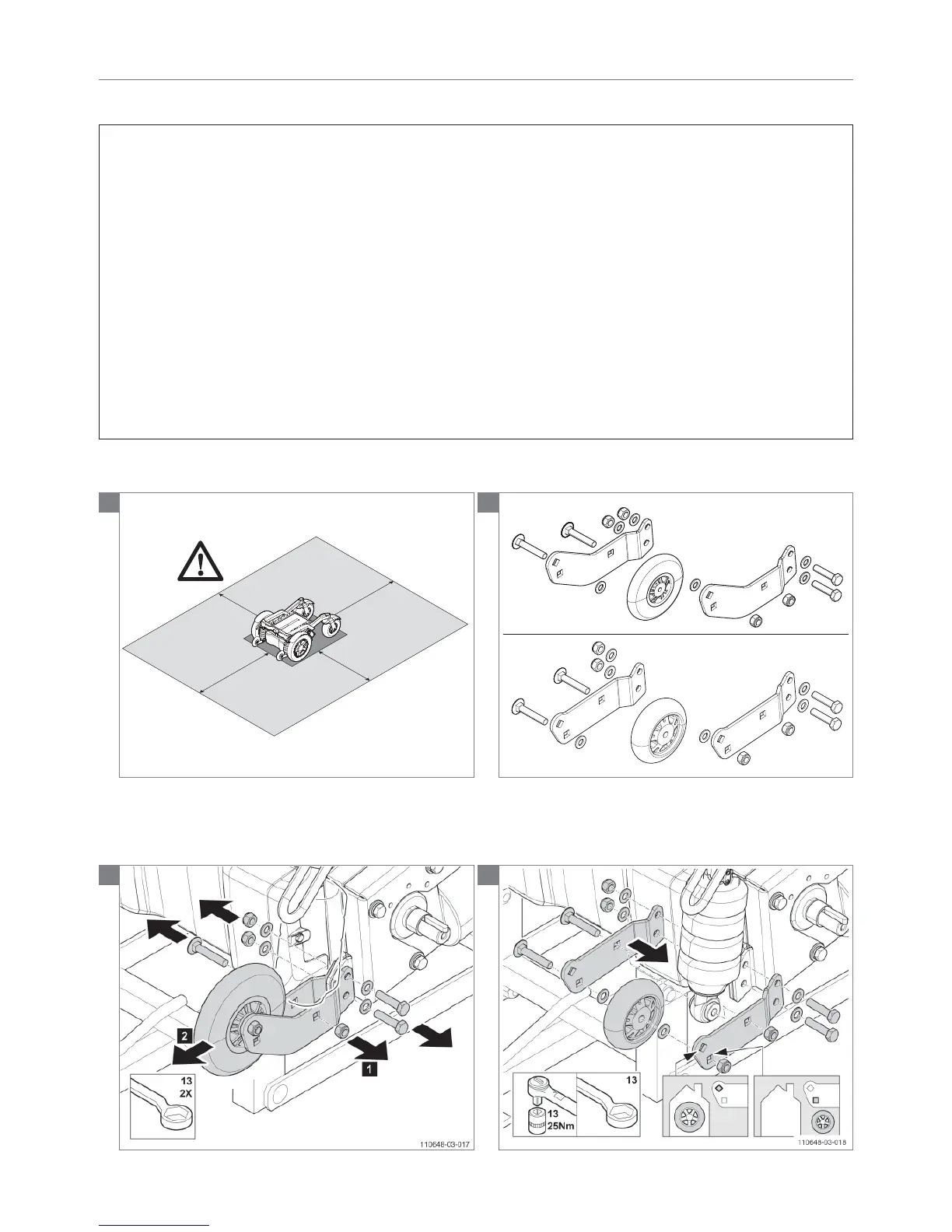

Follow the illustrated instructions.
Relevant article numbers
9005962 P2040 Anti-Tip RWD Complete Service
9005963 P2040 Anti-Tip FWD Complete Service
Tools used
• Open ended or ring spanners, 13 mm, 2x
• Torque wrench, socket, 13 mm
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648 03 001
2
RWD
FWD
3
Note! Replace the anti-tip wheels and brackets!
4
Note! Use top mounting holes for Indoor anti-tip wheel!
Note! Use bottom mounting holes for Outdoor anti-tip wheel!
Note! Tighten the bolts of the anti-tip wheels and brackets with 25 Nm!
94 | Service instructions Puma 20/40/6094 | Service instructions
