Puma 20 - Page 47

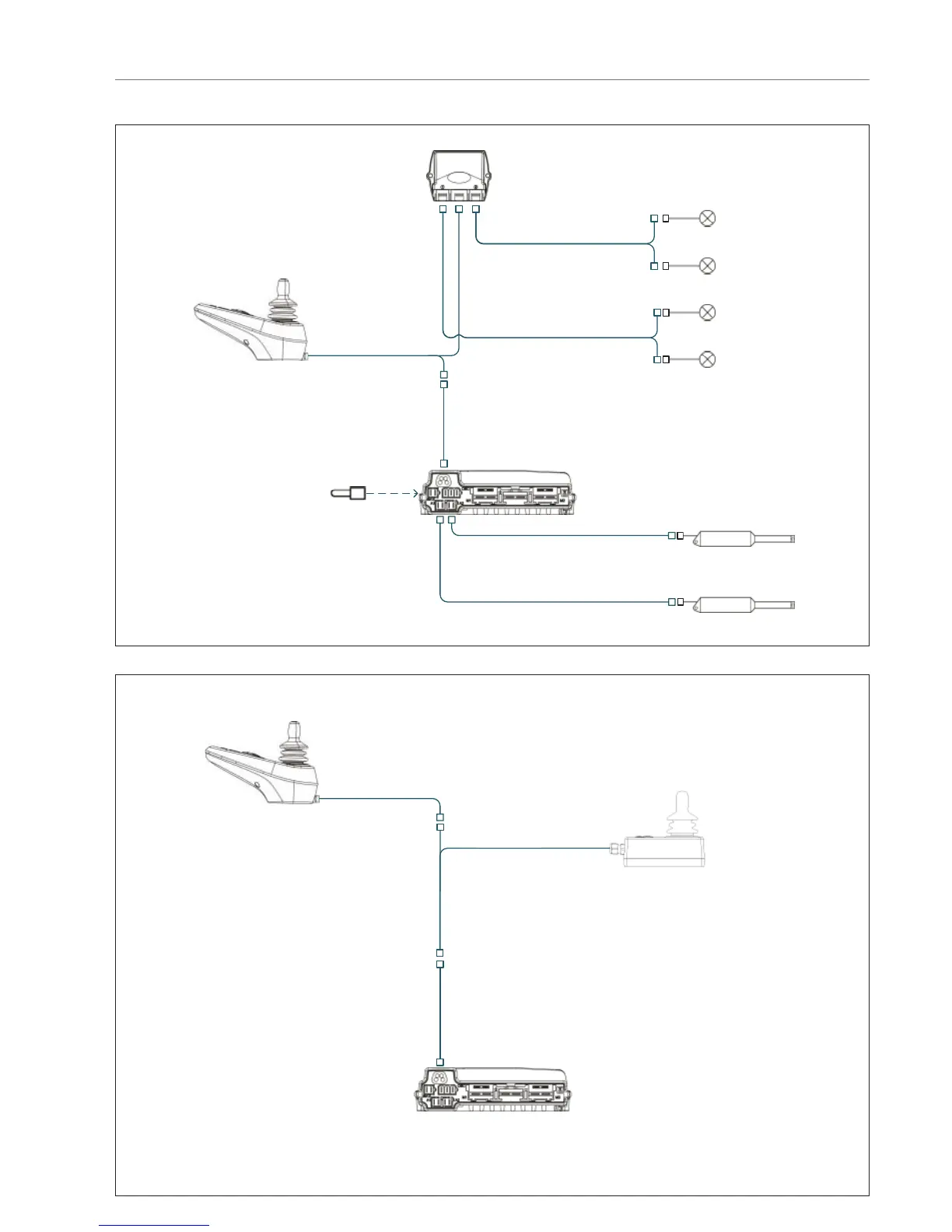

Electric diagrams VR-2 (4)
JSM
ACU
DO: 90 06853 (1.0m)
FWD: 9006 854 (1.5m)
RWD: 9006 855 (2.0m)
VR2 with Attendant Control
Cable lenghts are not drawn to scale
1007210 (ACU)
VR2 8 Puma2040
PM
VR2 with Legrests (Lights optional)
Cable lenghts are not drawn to scale
VR2 7 Puma2040
Legrest
Lighting
6000038
6000039
6000038
6000039
PM
JSM
FWD: 9006854 (1.5m)
RWD: 9006 855 (2.0m)
LM
9006333
9006333
9006321
9006321
FB-Term
9006327
Legrest
Puma 20/40/60
Spare parts | 47
