8

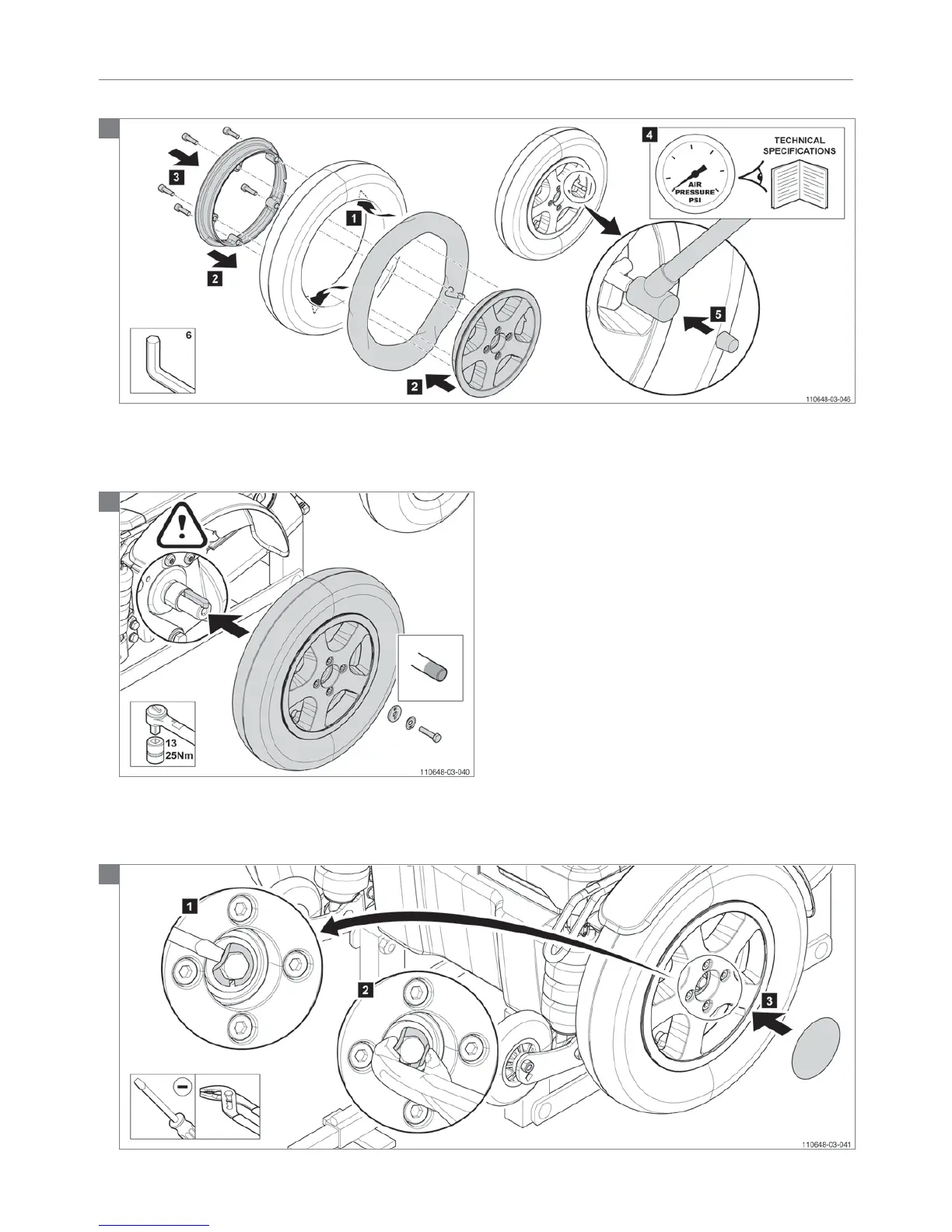

Caution! Ensure tube and tyre are properly positioned on the rim!
Caution! Make sure the tube is not jammed between the two rim halves!
Note! Infl ate the tube to the correct pressure! (See: ‘Technical specifi cations’)
9
Note! Check the key is still in place!
Note! Tighten the bolts of the drive wheels with 25 Nm!
Note! Bolts are provided with Loctite thread locker!
10
72 | Service instructions Puma 20/40/6072 | Service instructions
