2> Parameters of the port mapping is listed in the following table,
Table 6.
Items
Description
Device IP
The IP of the device connected to the LAN port.
PC IP
The IP of PC connected to the WAN port of AC200/1000.
Port
A single port or a range of ports.
3> Set the PC's IP to 192.168.30.10, which is in the same subnet as the AC200 WAN port, and connect the PC
to the AC200's WAN port.
4> Map port 22 or 23 to check if it's possible to use SSH or telnet to log into the device by accessing the IP.

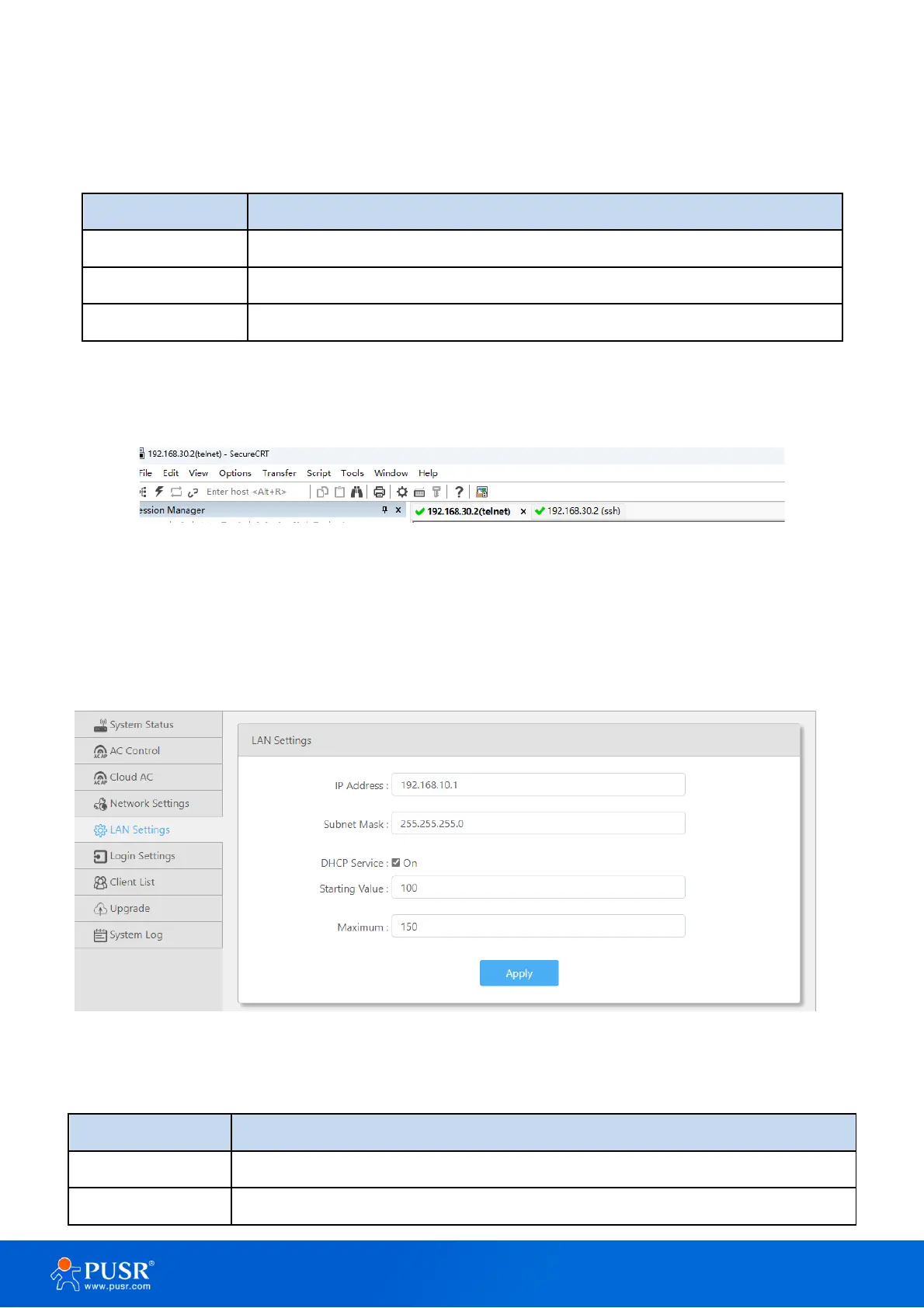

Figure 24. Telnet & SSH
3.5. LAN network settings
This function block is used to set the LAN IP address of the 520X, with the setting options as shown in the
following diagram, and the configuration instructions as in Table 3.
Figure 25. LAN network settings
Table 7. Parameters details of LAN network settings
Items
Description
IP address
The LAN IP of the AP(NR)520X. The default is 192.168.10.1
Subnet Mask
Subnet Mask of AP(NR)520X LAN port.
