Figure 16. Mode selecting

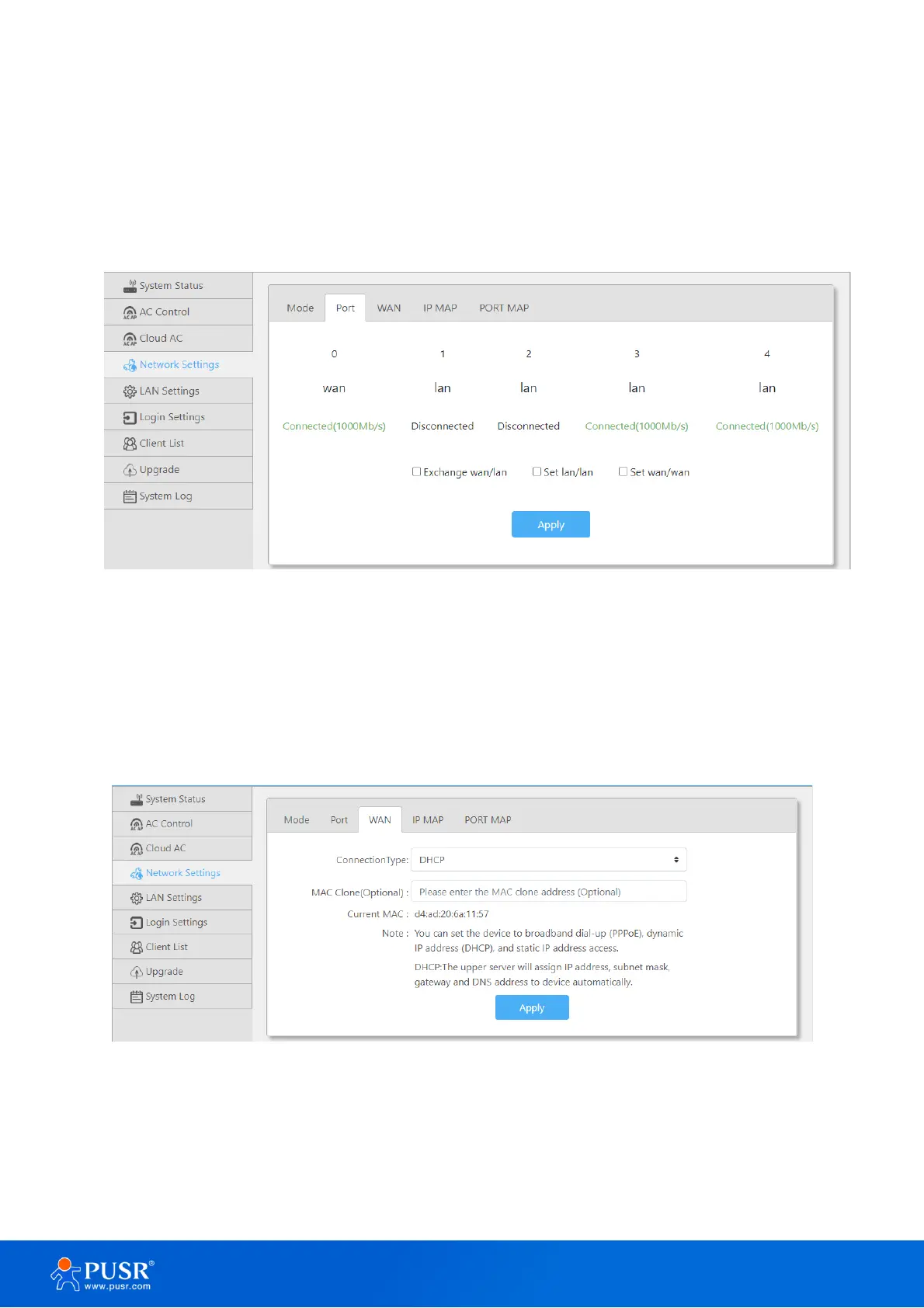

3.4.2. Ethernet port setting
In this function block, users can implement WAN/LAN switching, and can monitor whether the Ethernet port
is connected to a device.
Figure 17. Ethernet port setting
3.4.3. WAN settings
On this page, users can set parameters of WAN port to get access to Internet, including DHCP client, static IP,
and PPPoE.
MAC clone: Replace the AC's MAC address with this MAC.
Figure 18. WAN settings
3.4.4. IP mapping
Connect the device to the LAN port, and the IP of the device is mapped to the WAN port. Users can directly
access the device using the mapped IP on the WAN port. After specifying the communication host IP, the device
To Next Page
