Pyle PLINTBL7 - Wiring - Back Panel; Connector A Pinout; Connector B Pinout; Connector C Pinout

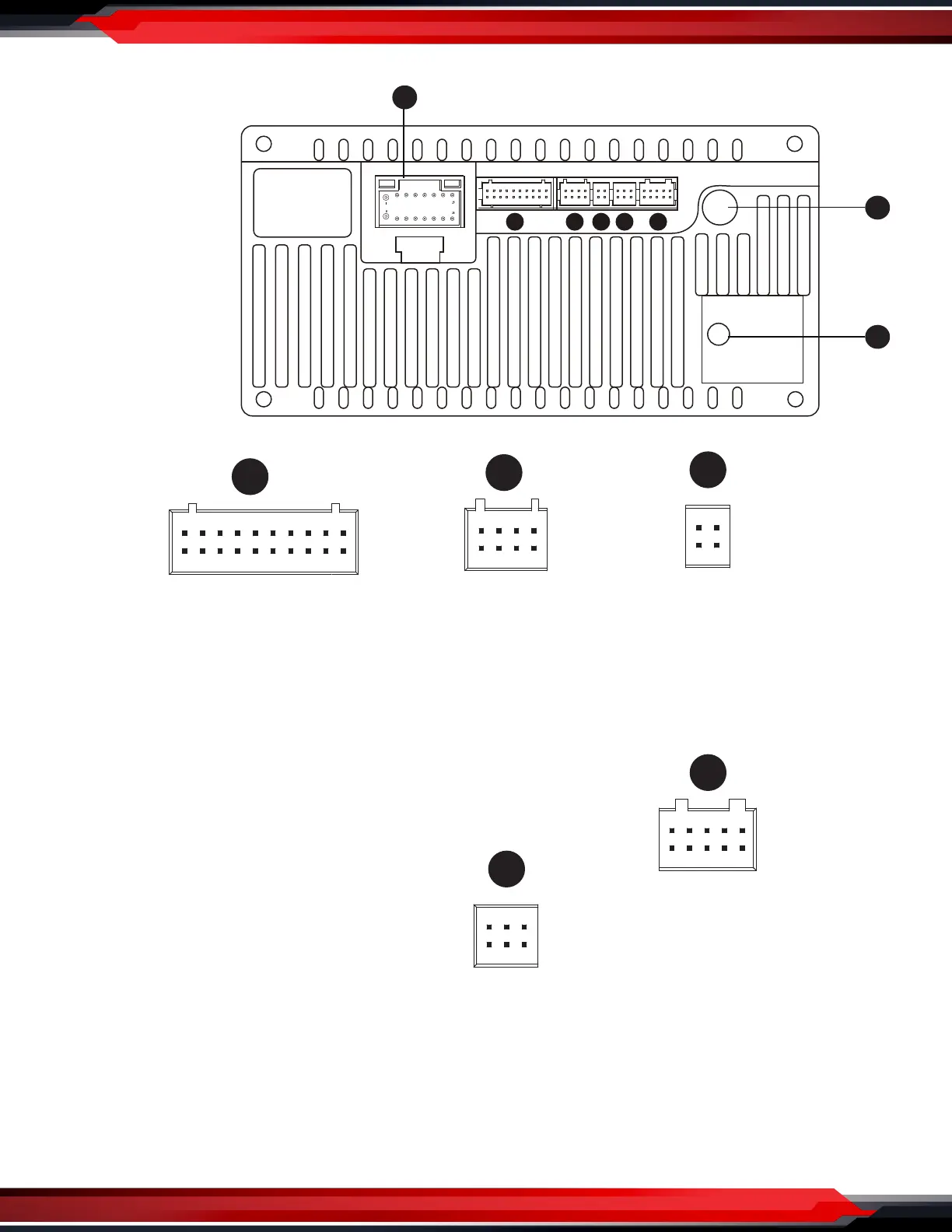

Wiring - Back Panel:
1. For power cable
2. For radio antenna
3. For GPS antenna
www.PyleUSA.com
9
1
2
3
A
B
C D
E
1. AMP_+12V
2. R_AXU_R
3. R_AXU_L
4. NC
5. NC
6. NC
7. NC
8. NC
9. DVR_CVBS
10. MIC-
11. GND
12. RCA_FL
13. RCA_FR
14. GND
15. GND
16. GND
17. CVBS_OUT1
18. SUB_OUT
19. AUXINCVBS
20. MIC+
A
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
B
1 2 3 4
5 6 7 8
C
1 2
3 4
D
1 2 3
4 5 6
E
1 2 3 4 5
6 7 8 9 10
1. GND
2. RCA_RL
3. FRONT_IR
4. CAN_TXD
5. NC
6. RCA_RR
7. NC
8. CAN_RXD
1. USB_5V
2. GND
3. USB2- DM2
4. USB1+ DP1
5. USB1- DM1
6. USB2+ DP2
1. USB_5V
2. GND
3. USB0+ DP0
4. USB0- DM0
1. TXD_TPMS
2. RXD_TPMS
3. IR
4. CAM_12V
5. PBK
6. WIFI_ANT
7. GND
8. CAM_CVBS
9. GND
10. BT_ANT
