Setting / Unsetting with the Tag Reader (optional extras)

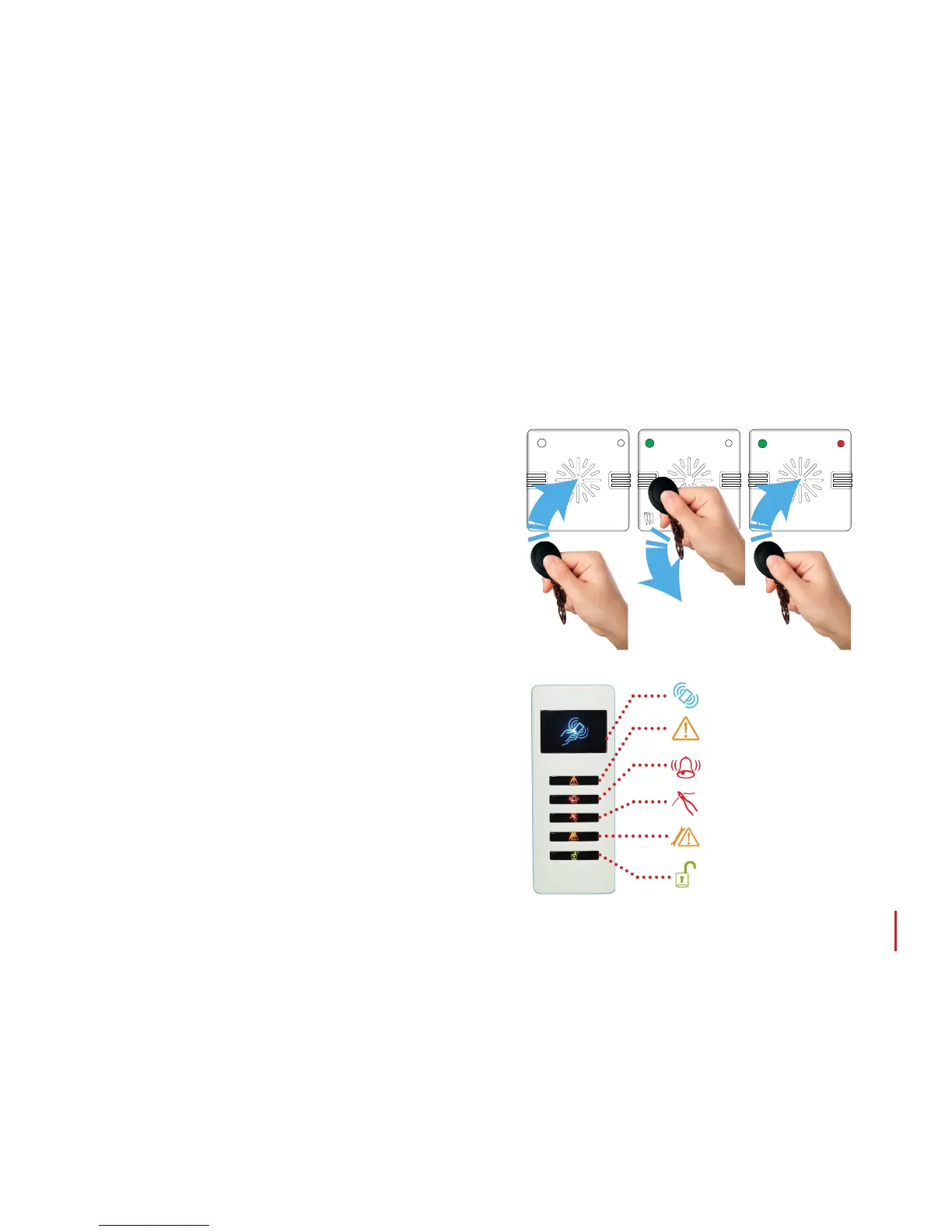

Setting (See diagram to the right):
i. Present a valid tag to the reader.
ii. The GREEN LED will illuminate on the external reader (or the
unset LED on the internal reader).
iii. Remove the tag.
iv. The door will unlock.
v. Present the same tag within 10 seconds and the system will set
and the door will lock displaying a RED LED.
Unsetting:
i. Present a valid tag to the reader and then remove it.
ii. The status will be shown (the alarm symbol will illuminate to
indicate that the system is set on the internal reader, or the
RED LED on the external reader).
iii. Present the same tag again within 10 seconds and the system
will be unset and the door will unlock.
Access Control/Entry Control:
The readers can also be used for opening doors only, without
the ability to set or unset. Please contact your installer for more
information on this feature.
NOTE: If the alarm system fails to set, a fault will display on the internal
tag reader or a ‘failed to set’ sound will activate on the external tag
reader buzzer.
Tag Area (present tag here)
Ready LED (ready to Set)
Alarm LED (shows alarms)
Tamper LED (shows tamper alarms)
Fault LED (shows system faults)
Unset LED (shows system is unset)
It is possible to set and unset your system using a tag wherever a reader is installed.
Internal Tag Reader LEDs
External Tag Reader LEDs (shown for system set)
