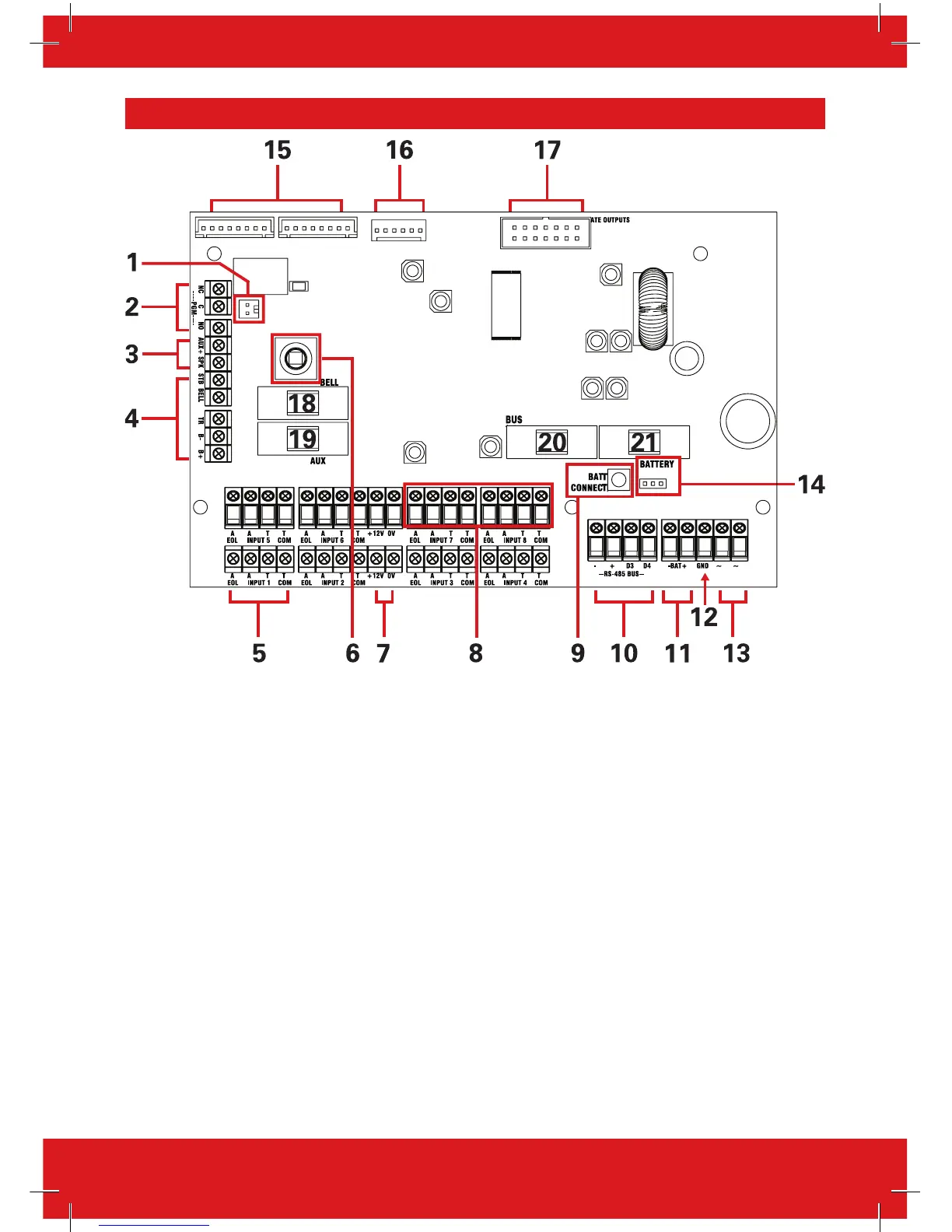

The Printed Circuit Board
1: Case tamper ‘Hold-Off’ jumper
2: PGM 1
3: Speaker connection
Connects a 16ohm speaker.
4: External sounder connections
Connects an external sounder.
5: Input connections
8 Fully programmable inputs.
6: Tamper switch
Optional tamper protection for the metal casing.
7: Auxiliary 12V power
12V power supply
8: Inputs or outputs
Inputs 7 and 8 may be programmed as outputs
if unused.
9: Battery connect ‘Kick-start’ switch
To power-up and program from battery power
(when there is no mains power available).
10: RS485 bus terminals
Connects peripherals.
11: Battery connection
For battery back up.
12: Earth connection
Connects the earth.
13: 17V connection
Connects the AC transformer 17V supply.
14: Battery charge capacity jumper
For battery back up.
15: Modem connections
The left connector (labelled ‘modem’) is for
signalling modems.
PLEASE NOTE: The right is ‘For Future Use’,
please do not use.
16: RS232 Connection
This connection is used for an RS232 lead that
will connect to a PC to allow uploading and
downloading of data using the InSite software.
17: Communication Outputs
Connects the supplied communication loom to
enable an additional 9 programmable outputs.
These are low current and would normally
be used when connecting a stand-alone
communicator to the panel.
18: Bell Fuse
19: Auxiliary Fuse
20: Bus Fuse
21: Battery Fuse
MODEM FOR FUTURE
USE
To Next Page
