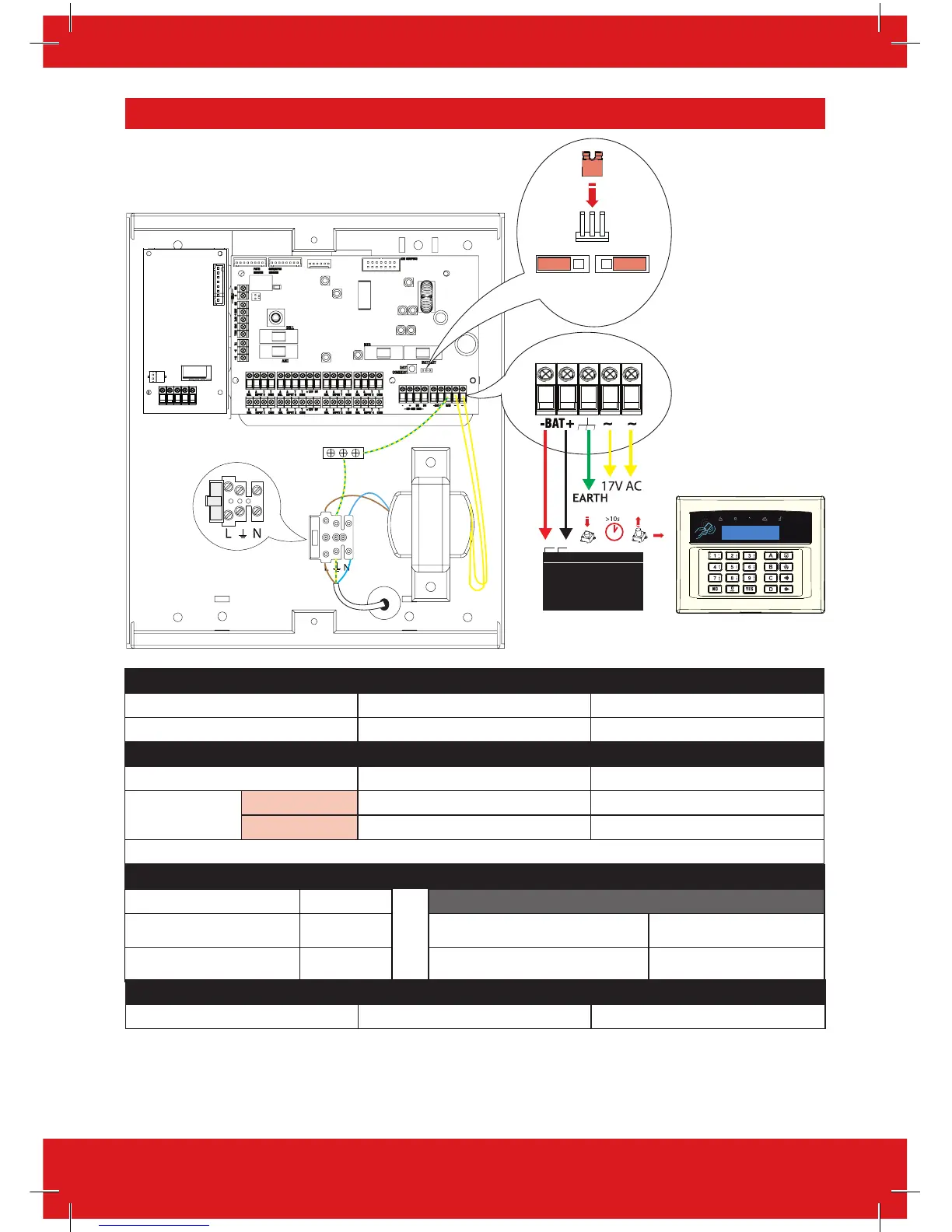

Power and Battery Connections
2-6Ah 7-17Ah
Panel Power Supply Input Nominal Range
Mains Supply Voltage AC 230V AC at 50Hz -15% +10%
Transformer Rating 18VA 18V at 1.0A
Panel Power Supply Output Nominal Range
Output Voltage 13.7V DC 10-15V DC
Output Current
Small Metal 1A Continuous 1.5A peak, during battery charging
Large Metal 1.5A Continuous 2.0A peak, during battery charging
Power Supply Type A.
Battery Charging Specification
Float Voltage 13.8v DC
Control Panel Type
Battery low voltage cut off 10.5v Standby battery capacity current 300mA (3Ah to 6Ah)
Recharge time <24 Hours Standby battery capacity current 700mA (7Ah to 17Ah)
Fuses Value Type
230V Mains Fuse for mains terminals T500mA H anti-surge slow blow 250V Ceramic
PLEASE NOTE: Ensure that the ‘battery jumper’ is in the correct position for the capacity of battery
that you have connected – otherwise the panel may under-charge a large battery or over-charge and
damage a smaller battery.
EURO 46
