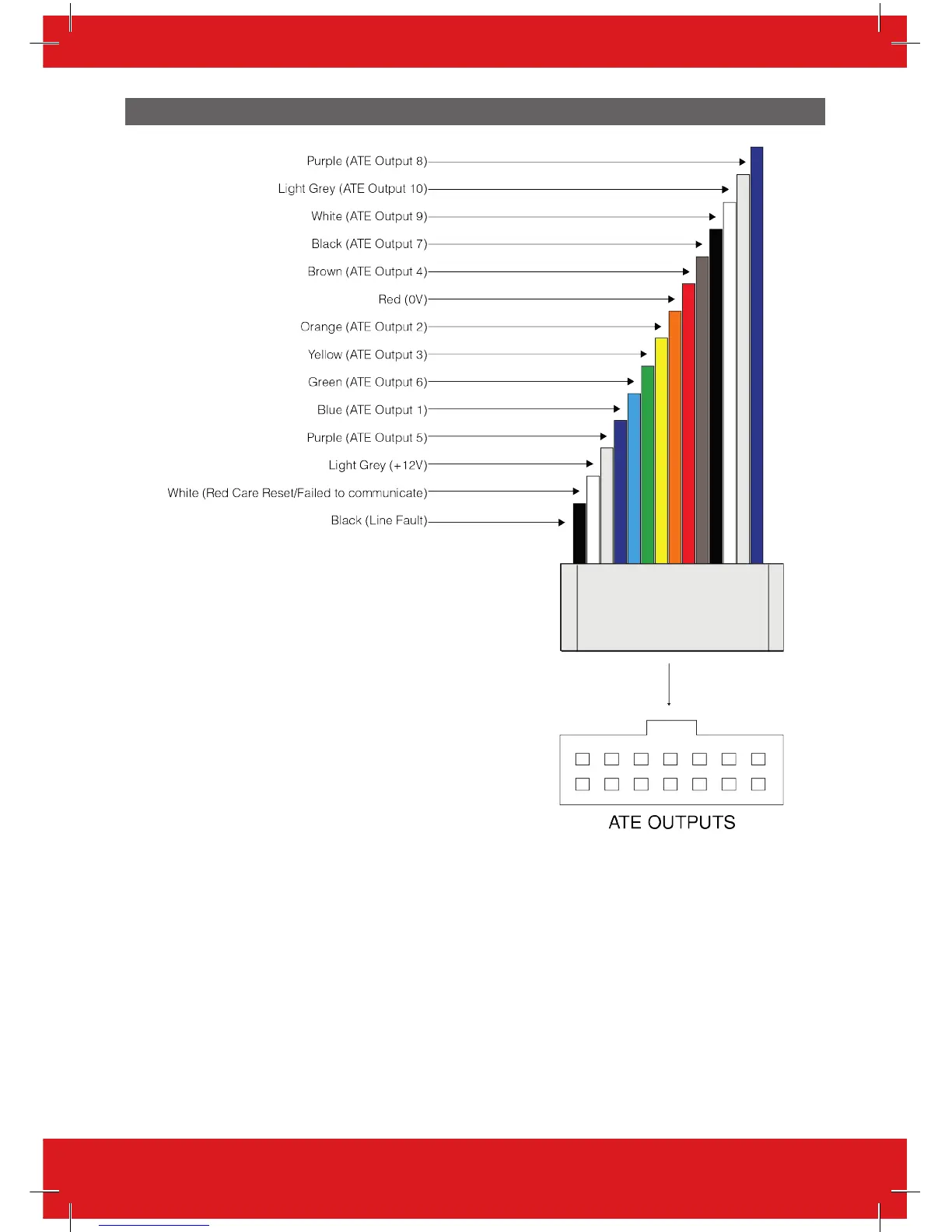

Communication Loom
PLEASE NOTE: The polarity of the ATE outputs can by changed in the Engineer Menu. The menu
option is named ‘Invert ATE O/Ps’ and can be found as a sub menu in ‘SYSTEM OPTIONS’ then
‘Site Options’. This will invert the polarity of all the programmable ATE outputs, they cannot be done
individually.
Normal Status: 5v
Active Status: 0v
Current: 2mA
The ATE (Alarm Transmission Equipment) outputs are programmed in the Engineer Menu. The
programming can be found in ‘CHANGE OUTPUTS’ then sub menu ‘Endstation Outputs’.
