EURO 46 V10 Installation Manual
Star and Daisy Chain Wiring
Cable Type Screened Cable Bus Range (m)
Wiring Format
Star Wiring Range Daisy Chain Range
4 core alarm cable
Use this type of cable
when the wiring of the
485 bus is located near
230VAC mains power
wiring
300
50 m 1 km
6 core alarm cable
(doubling D1 (0v) and
D2 (+12V))
1000
Twisted Pair 1000

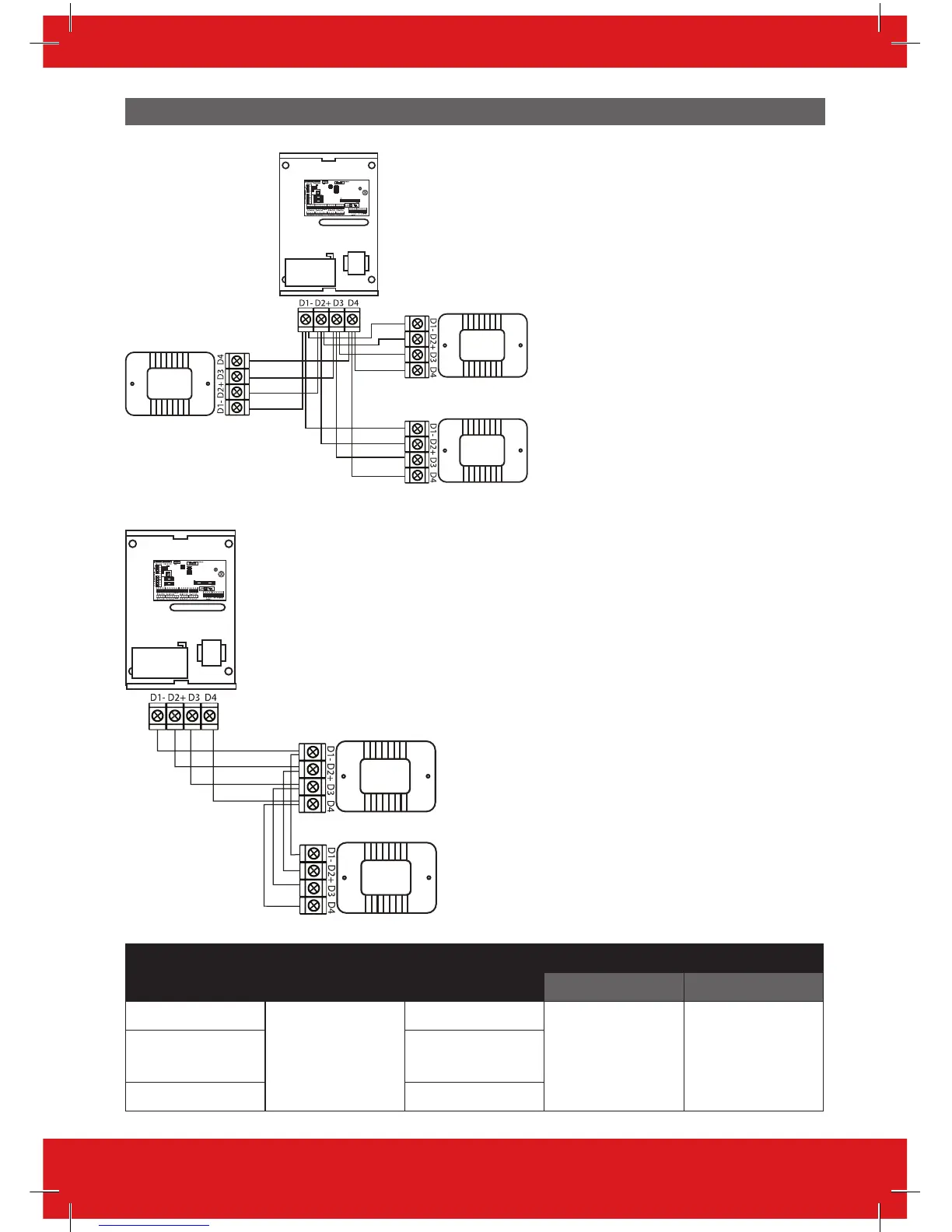

Star Wiring Example
Daisy Chain Wiring Example
