Pytes E-BOX Series - Page 19

Shanghai Pytes Energy Co., Ltd

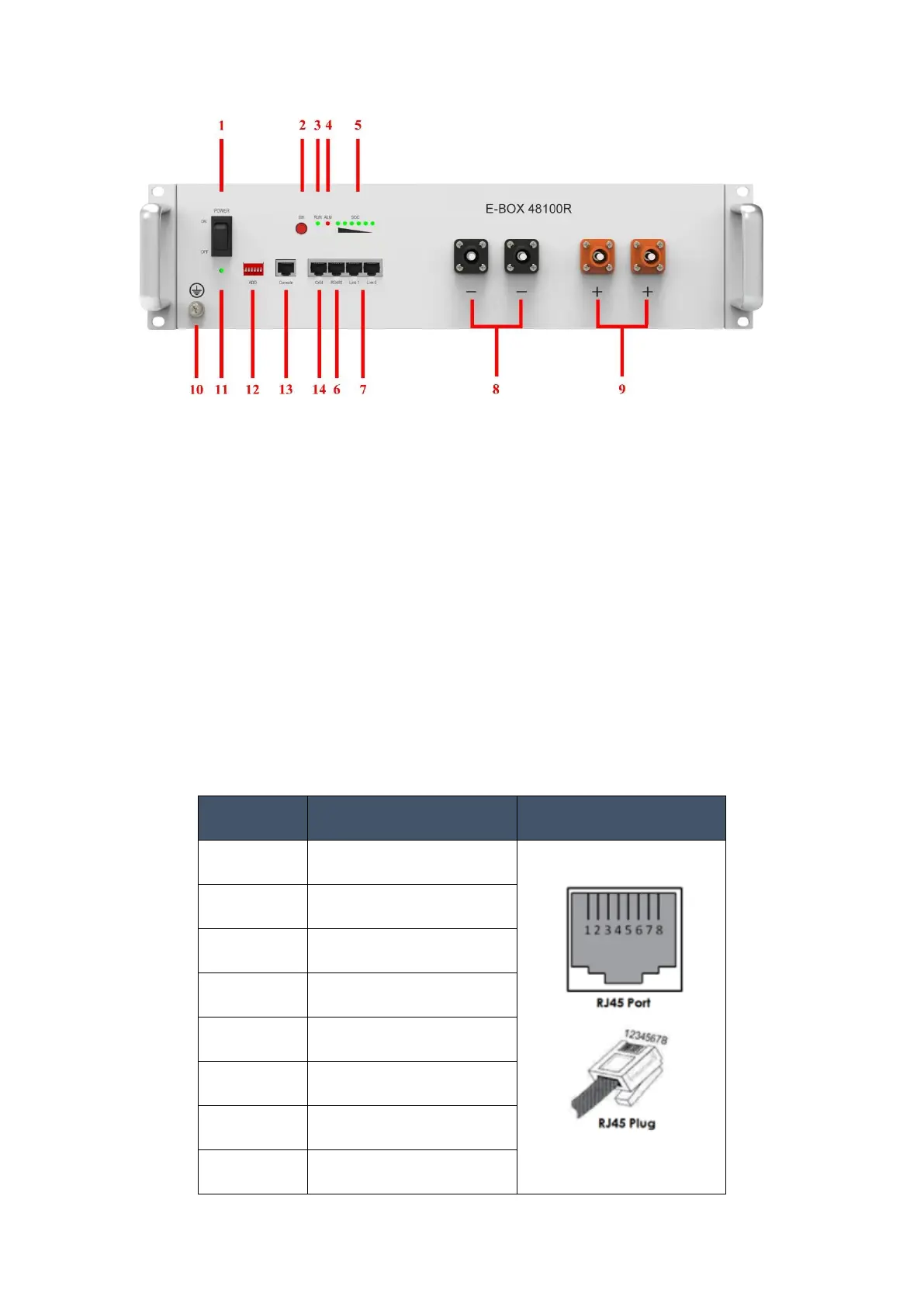

1
Power button
8
Negative terminal
2
Soft switch
9
Positive terminal
3
RUN indicator
10
Ground point
4
Alarm indicator
11
Power indicator
5
SOC indicator
12
DIP switch
6
RS485 port
13
Console port
7
Battery communication cascading
port
14
CAN port
Communication
There are RS-232C, RS485 and CAN communication ports on the battery. The battery
status and information can be monitored and modified via computer.
CAN
CAN communication terminal (RJ45 port) follow CAN protocol, to transfer battery data.
Pin number
CAN Pin
Remarks
1
2
GND
3
4
CANH
5
CANL
6
7
8
