Shanghai Pytes Energy Co., Ltd
⚫ Please note: External racks, brackets, cabinets are considered outside the scope of
battery certification.
4.4.1 Floor-Mounted Installation

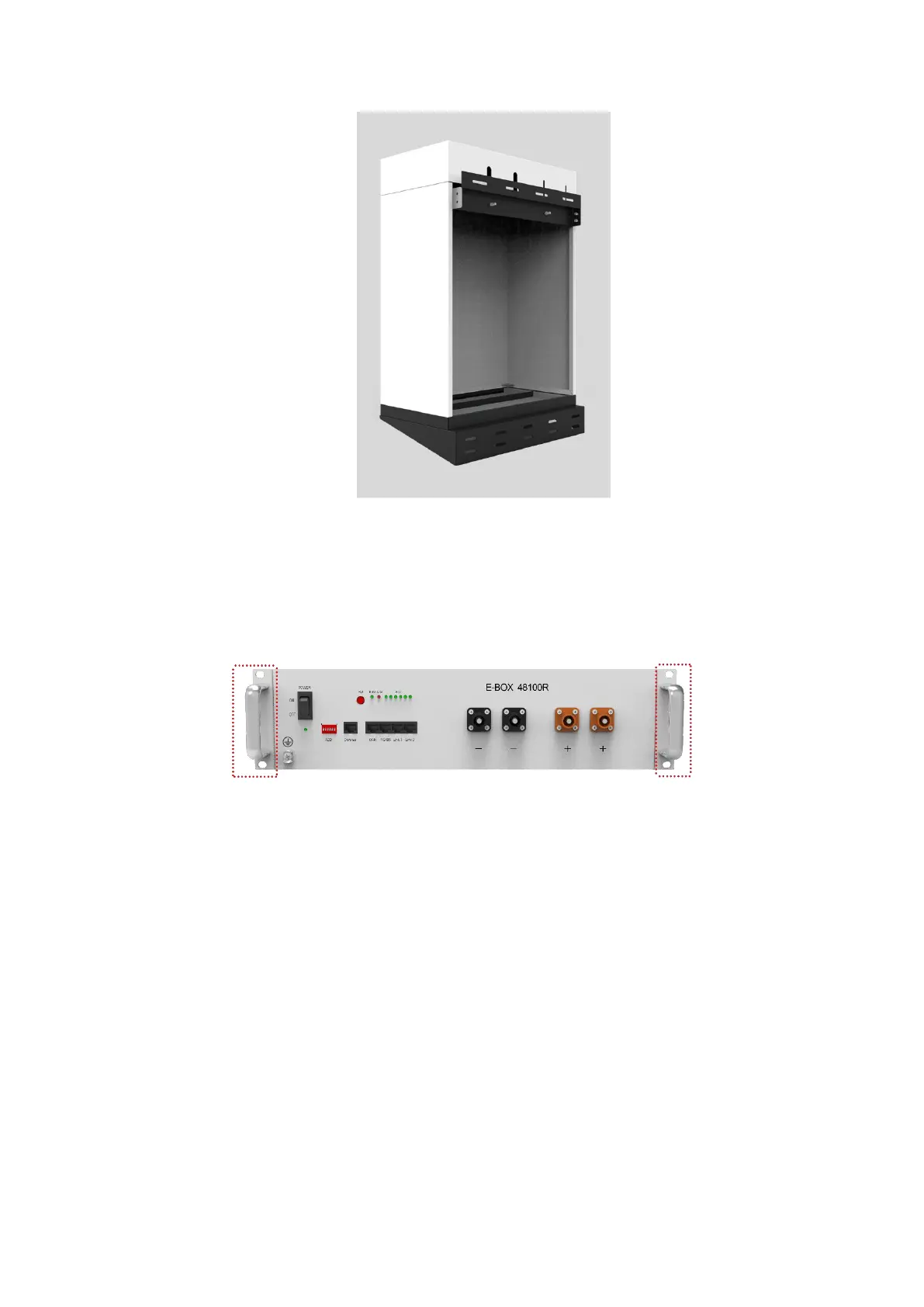

Step 1 Dismantle the 2 mounting ears from the battery.
Step 2 Push the Front rack from rear of the battery to the front.
Step 3 Mount the Rear rack on the battery rear.
Step 4 Repeat above 3 steps to mount another battery.
Step 5 Stack one battery on the other battery, and lock snaps on both sides of rack.
4.4.2 Wall-Mounted Installation
Step 1 Assemble the base components.
⚫ Connect the support base to the mounting plate with 8 screws.
