Shanghai Pytes Energy Co., Ltd

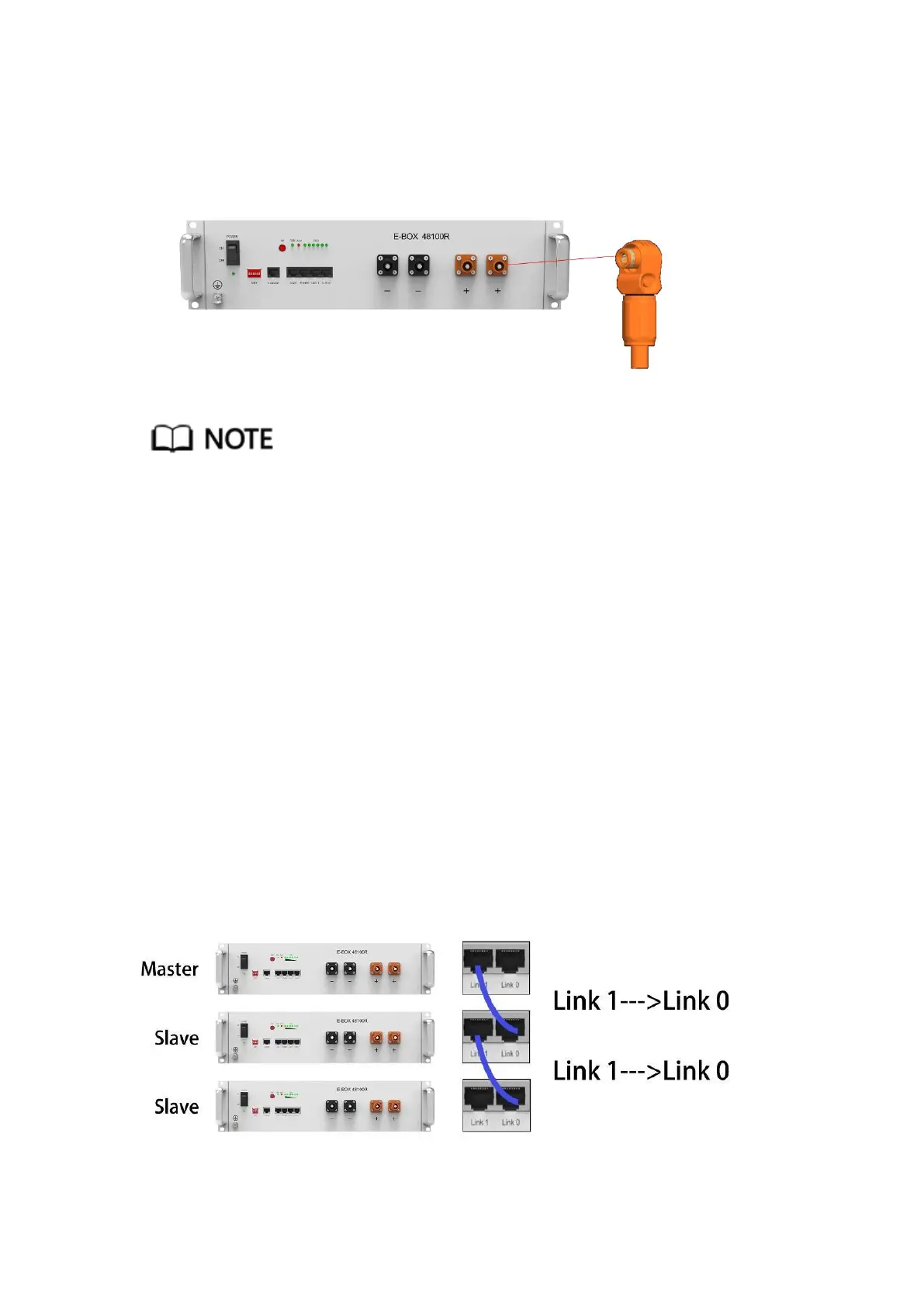

Step 5 Connect battery positive terminal (orange) with positive battery cable and connect
battery negative terminal (black) with negative battery cable.
Power cables use Amphenol connectors, when push in, a “Click” sound means fully connection.
Ensure the correct polarity of batteries before connecting to the battery.
When pull out the power cable, you must press the button as indicated below to loss the connector.
Step 4 Inverter side connection
⚫ Connect the inverter with Positive and negative busbars according to the Inverter
user manual and follow local installation regulations.
5.3 Communication connections of battery
Cascading batteries
Cascading cables are classic regular ethernet cable.
Step 1 Connect the battery through link ports. From “Link 1” port of first battery to “Link 0”
port of next battery. And connect battery one by one.
