Pytes E-BOX Series - 6.3 BMS commissioning Monitoring

Shanghai Pytes Energy Co., Ltd
Battery
status
RUN
ALM
SOC Indicator
Descriptions
●
●
●
●
●
●
●
●
ON
ON
ON
ON
ON
ON
ON
ON
Battery warning for barcode
missing
Protection
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Battery in Protection mode
Flash 1: 0.25 seconds ON, 3.75 seconds OFF.
Flash 2: 0.5 seconds ON, 0.5 seconds OFF.
Flash 3: 0.5 seconds ON, 1.5 seconds OFF.
Step 3 Switch on DC isolators between batteries and Busbars
Step 4 Switch on DC isolators between Busbars and Inverters.

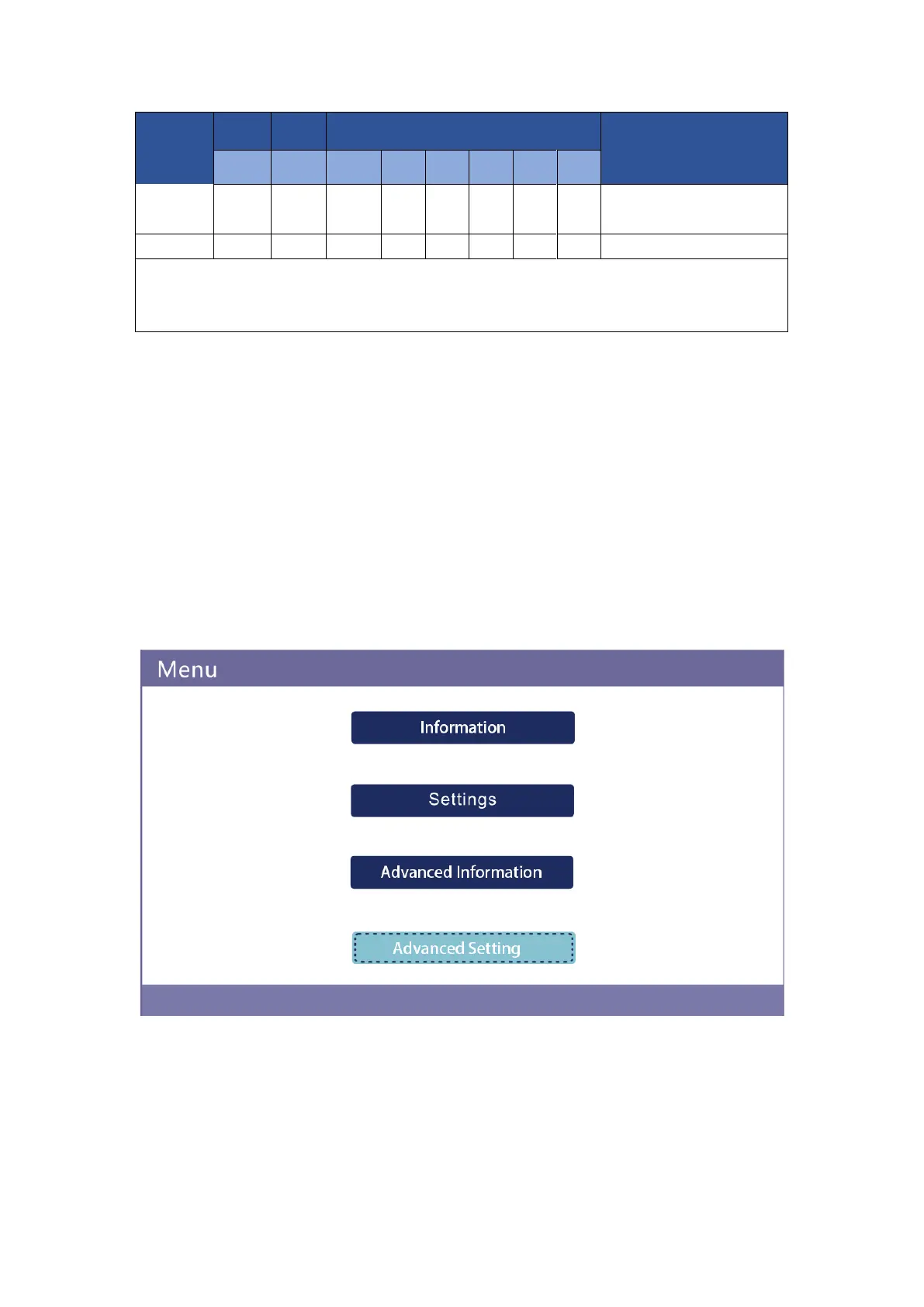

6.3 BMS commissioning Monitoring
Step 1 Press “ENT” on inverter and enter the main menu. Select “Advanced Settings”
from main menu, the LCD screen show the password is needed:
⚫ Press “DOWN” to move the cursor.
⚫ Press “UP” to change the number.
⚫ Press “ENT” to enter the restricted section.
