QNAP TL-D400S User Manual

TL-D1600S
4. Power on the JBOD enclosure.
5. Power on the NAS.
6. Verify that the JBOD enclosure is recognized by the NAS.
a. Log on to QTS as administrator.
b. Go to Main Menu > Storage & Snapshots > Overview > Storage .
c. Verify that the JBOD enclosure are listed.
Note
The NAS may take up to 30 seconds to detect the JBOD enclosure and the installed drives.
Connecting the JBOD Enclosure to a Computer
Important
QNAP JBOD enclosures cannot be connected to more than one host at a time.
1. Power off the computer.
2. Power off the JBOD enclosure

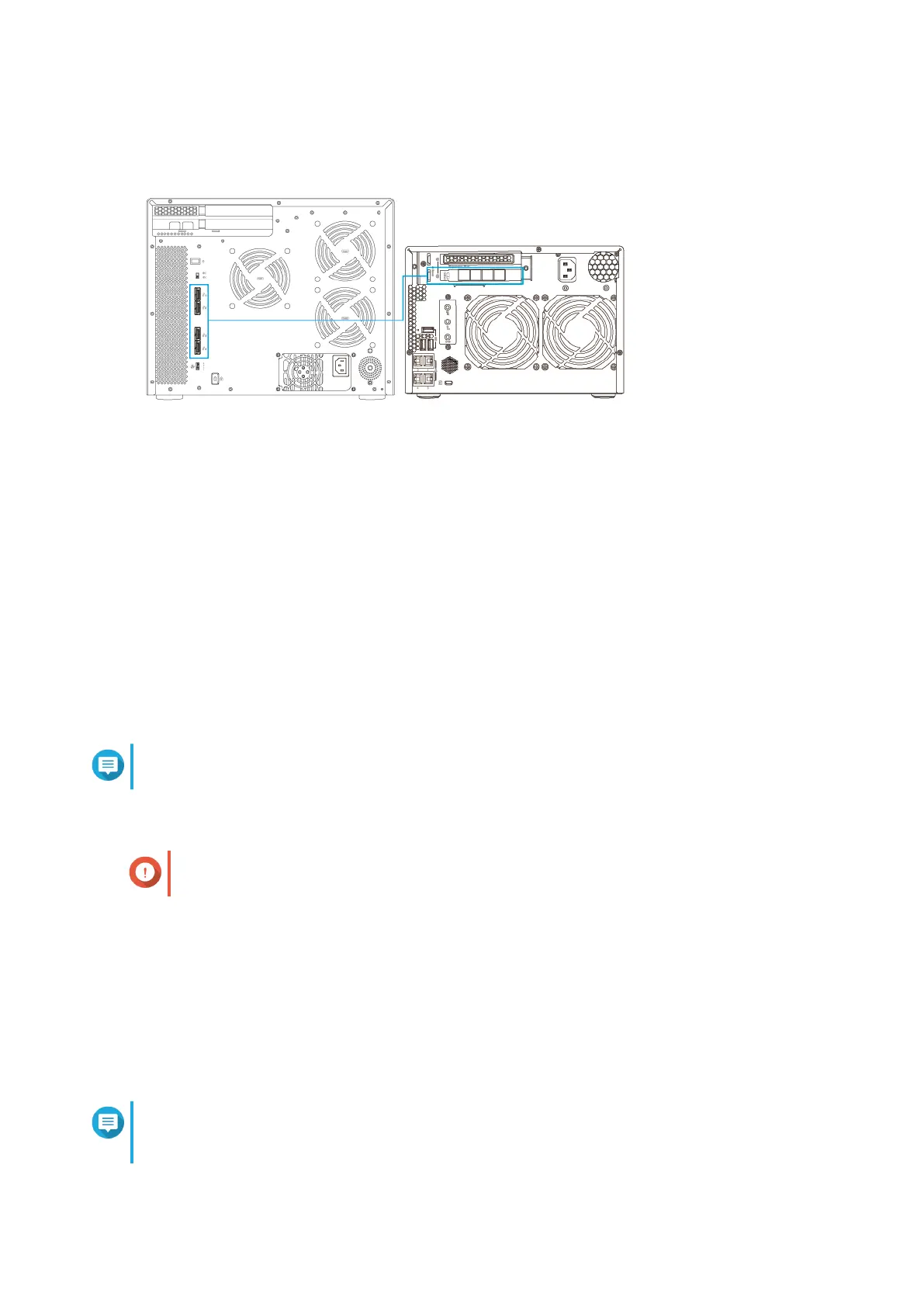

3. Connect the JBOD enclosure to the computer.
a. Connect one or more SFF-8088 connector cables to the SFF-8088 ports on the JBOD enclosure.
b. Connect one or more SFF-8088 connector cables to the SFF-8088 or SFF-8644 ports on the host
bus adapter installed in the computer.
Note
Refer to the hardware installation instructions for the computer for information on installing
expansion cards.
QNAP JBOD Enclosure User Guide
Hardware Installation 24

QNAP TL-D400S Specifications

General

Hot-swap	Yes
Storage drive size	2.5/3.5 \
Total installed storage capacity	0 TB
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
USB connectivity	No
Fan diameter	120 mm
Product type	HDD/SSD enclosure
Product color	Black, Grey
LED indicators	Fan fail, HDD, Link
Number of fans	1 fan(s)
Noise level	20.1 dB
Data transfer rate	6 Gbit/s
Power source type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	AC, MiniSAS
Harmonized System (HS) code	84733080

Weight and Dimensions

Depth	219 mm
Width	160.2 mm
Height	168.5 mm
Weight	3660 g
