No. Component No. Component
2 SAS link LED 6 Enclosure ID
Note
When the JBOD connects to the
OS, the device assigns the JBOD
a number. After 9, the number
becomes assigned a letter in
alphabetical order: A, b, c, d, E, F,
g.
3 Power port 1 7 3.5 mm line-out jack
Note
This port is for engineering
purposes only.
4 Power port 2 - -

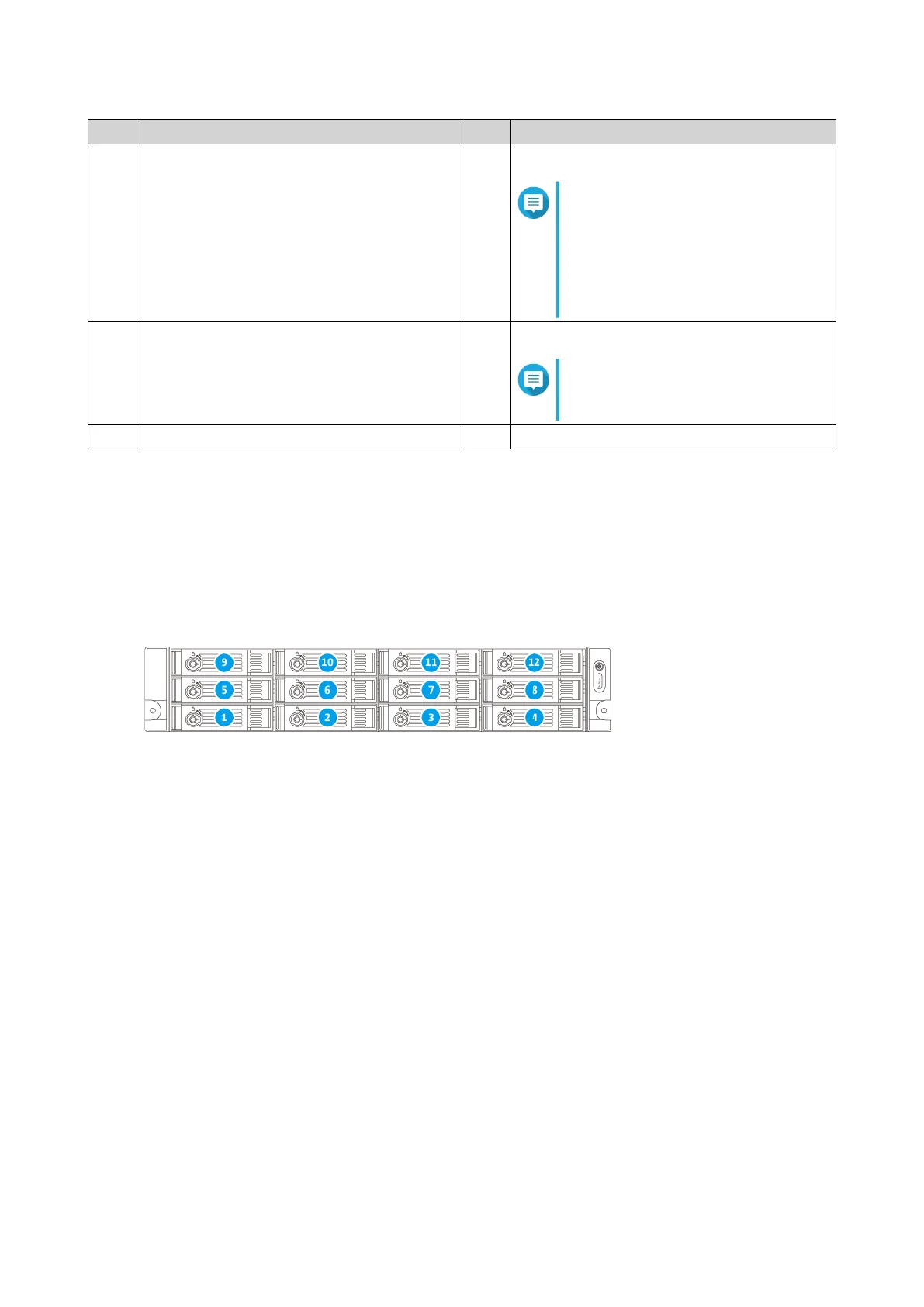

Drive Numbering
TL-R1220Sep-RP
