QNAP TS-410 User Manual

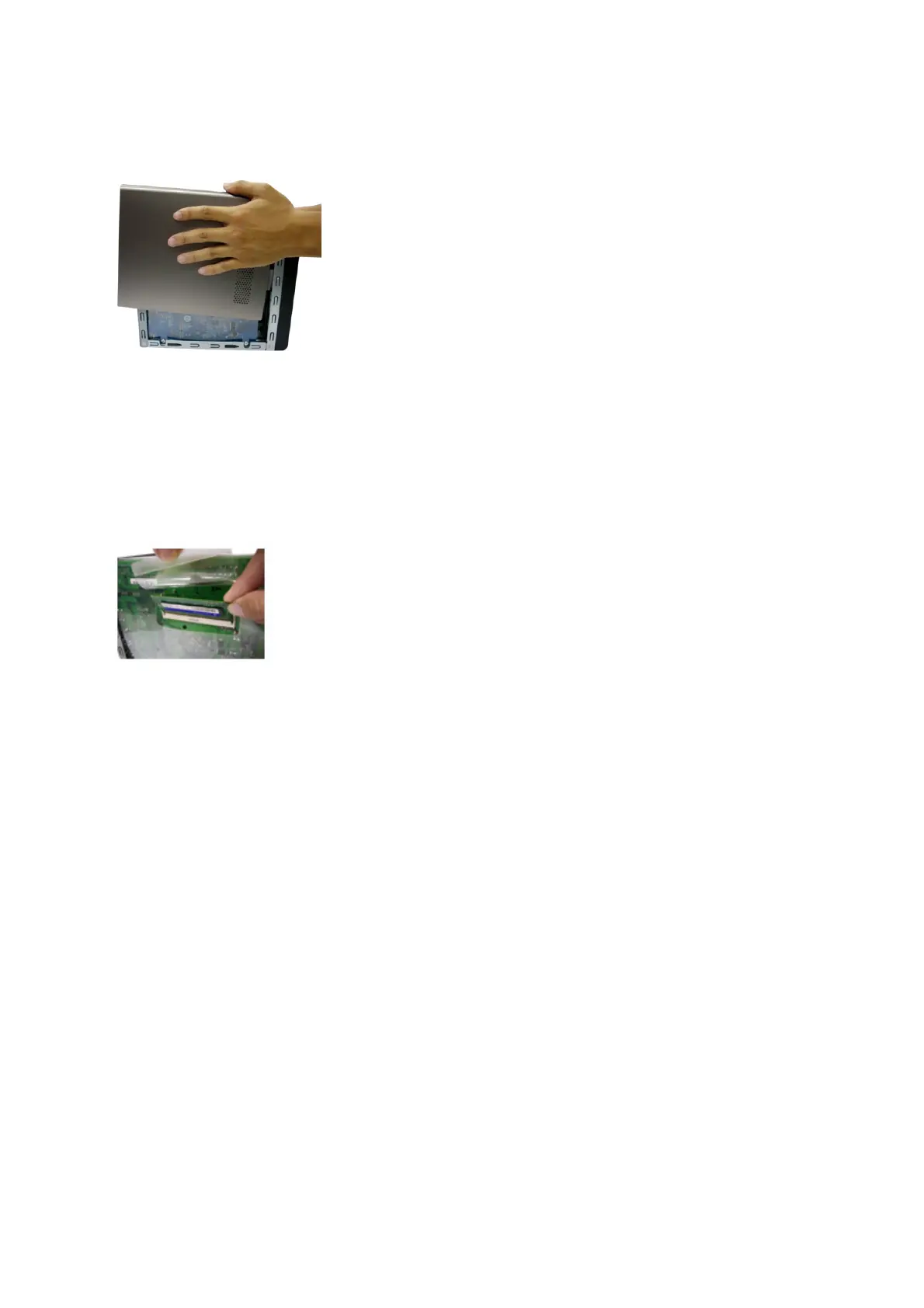

4. R
emove the case cover of the NAS gently.
5. Lift up the Mylar sheet. Locate the memory slot. Make sure the slot is empty.
6. Grasp the edge of the memory module. Align the notch on the gold edge of the
module with the notch in the memory slot. Slide the memory module to the slot at a
45-degree angle (approximately).
7. Gently press the memory module into the slot until it is seated fully.
25

QNAP TS-410 Specifications

General

CPU	Marvell 6281
CPU Frequency	800 MHz
Flash Memory	16 MB
Drive Bays	4
LAN Ports	1 x Gigabit RJ-45 Ethernet port
Dimensions	177 x 180 x 235 mm
Weight	3.6 kg
Hot Swappable	Yes
RAID Support	RAID 0, 1, 5, 6, JBOD
USB Ports	3 x USB 2.0
eSATA Ports	2
Maximum Internal Raw Capacity	16 TB (4 x 4 TB hard drives)
