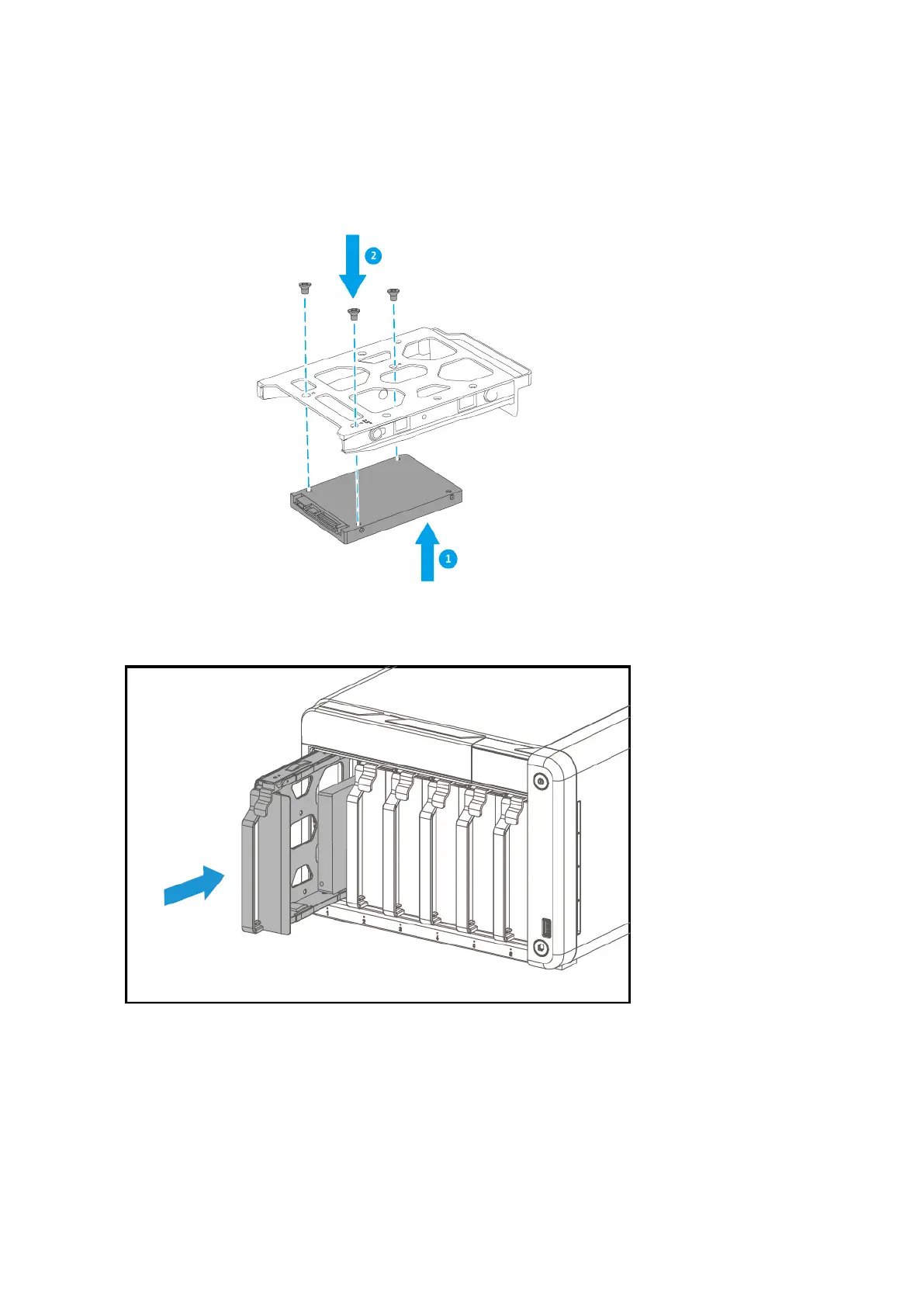

a. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes
on the bottom of the tray.
b. Attach the screws.
5. Insert the tray into the bay.
6. Attach the front cover.
a. Align the front cover with the grooves on the case and then slide to the right.
TS-AI642 User Guide
Installation and Conguration 13
