5
TD-001586-01-B

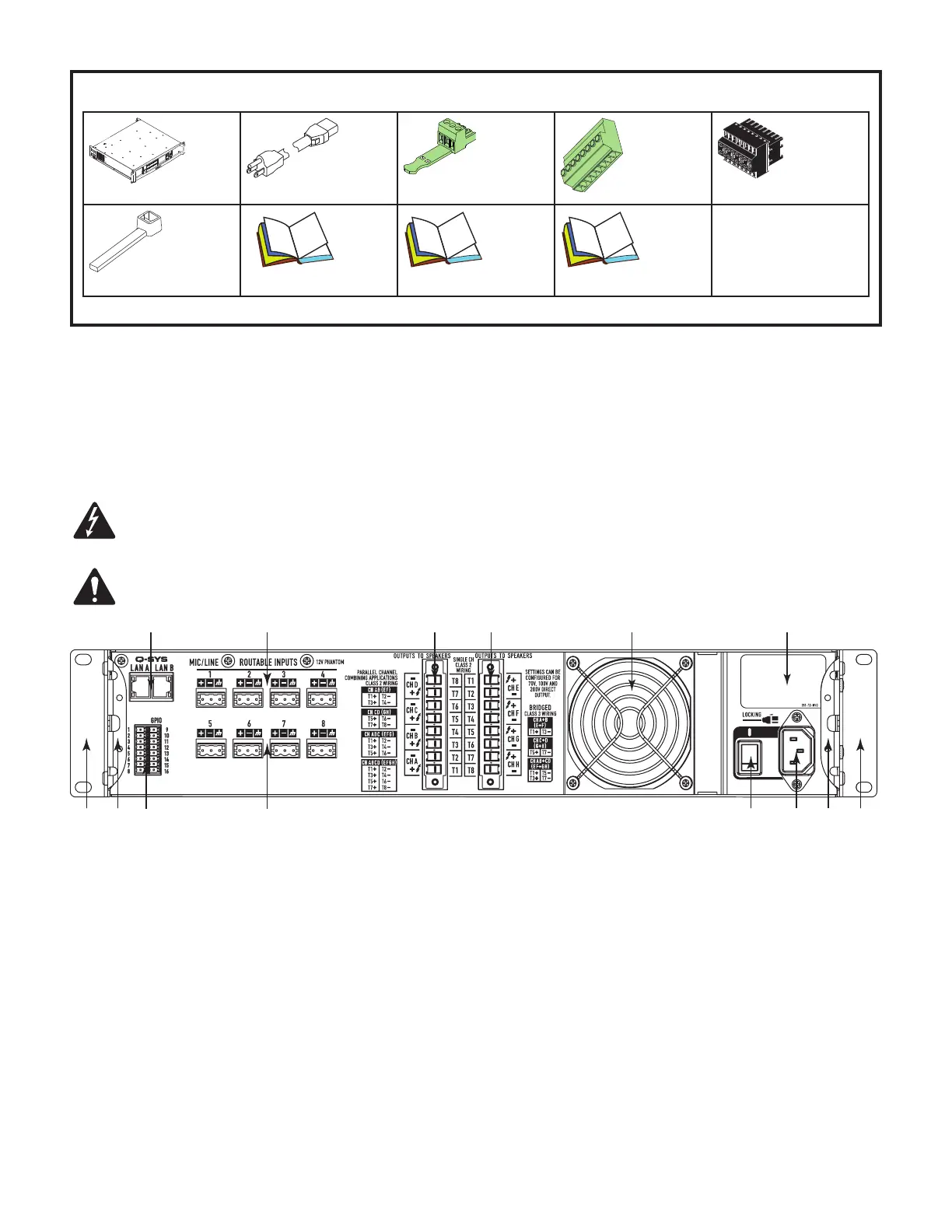

What's in the Box
(1x)
CX-Q or
CX-Qn
Amplifier
(1x)
AC Cord
CX-Q
(8x or 4x)
Inputs
(3-Pins)
(2x or 1x)
Outputs
(8-Pins)
(1x)
GPIO
(16-pins)
CX-Q
(16x or 8x)
Cable Tie
(1x)
Warranty
(1x)
Safety
Information
(1x)
Quick Start
Guide
Features
Amplifier Front Panel
Refer to
"Amplifier Controls and Indicators" on page 11.
Amplifier Rear Panel
Refer to
Figure 1
WARNING!
Dangerous voltage possible on output terminals. Disconnect AC Mains before connecting or disconnecting
output wiring.
NOTE: The CX-Qn models do not have the analog inputs (Item 2a / 2b below).
— Figure 1 —
CX-Q 8-Channel Model Shown
1 2a 3a 3b 4 5
6 2b 7 8 9 10
10 9
1. RJ-45 – Q-SYS Q-LAN A / B
2. Analog Inputs – Mic or Line level, 12V Phantom power, 3-pin Euro-
style Connectors
a. Inputs 1-4 All CX-Q Models
b. Inputs 5-8 Models: CX-Q 4K8, CX-Q 8K8
3. Outputs – Loudspeaker Connector, 8-pin Euro-style
a. Outputs A–D All Models
b. Outputs E–H 8-Channel Models only
4. Cooling fan inlet (do not block)
5. Product information:
a. Serial Number with manufacturer date code: Refer to
Figure 7
b. Country of origin, "Product of China".
6. GPIO Euro-style Connector, 16-pin
7. AC Power Switch
8. Locking IEC Power Connection
9. Rear Rack-mount Brackets
10. Front Rack-mount Brackets
