8
TD-001586-01-B

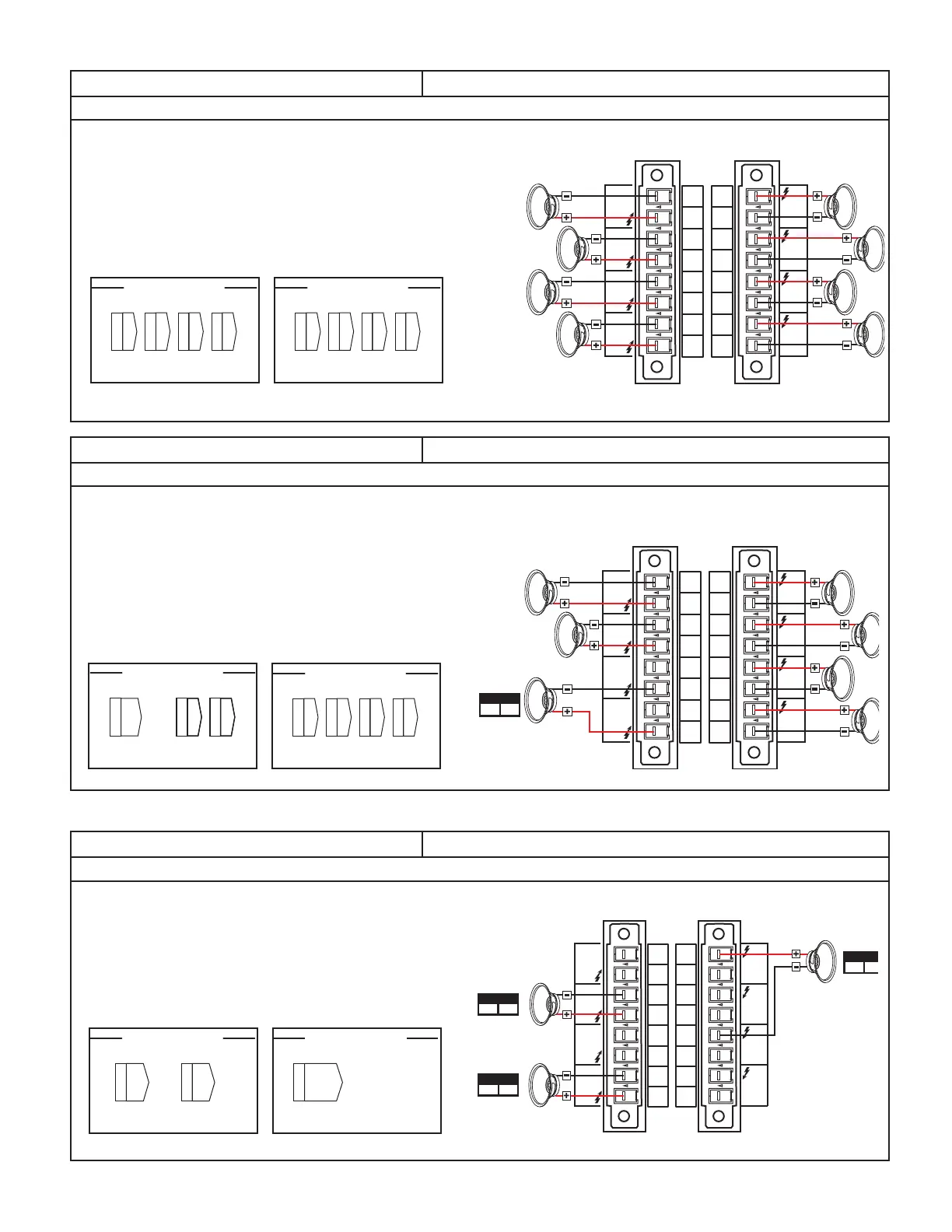

A B C D 4 Channel E F G H 4 Channel
Separate Channels (A B C D) and (E F G H)
— Figure 7 —
CH D
CH A
CH B
CH C
+
+
+
+
-
-
-
-
T8
T5
T6
T7
T4
T1
T2
T3
CH E
CH H
CH G
CH F
+
+
+
+
-
-
-
-
T1
T4
T3
T2
T5
T8
T7
T6
OUTPUTS TO SPEAKERS OUTPUTS TO SPEAKERS
CHANNEL CONFIGURATION
4 Channels: E F G H
Channel Configuration Locked to Design
Q E
Q F
Q G
Q H
CHANNEL CONFIGURATION
4 Channels: A B C D
Channel Configuration Locked to Design
Q A
Q B
Q C
Q D
A+B C D 3 Channel, A B Bridged E F G H 4 Channel
Bridged (A+B) and Separate (C D) and (E F G H) Channels
— Figure 8 —
AB CD 2 Channel, AB Parallel CD Parallel EF + GH 1 Channel, EF Parallel Bridged with GH Parallel
Two Pair of Parallel Channels (AB CD) and two Pair of Parallel Channels Bridged (EF + GH)
— Figure 9 —
For Separate Loudspeakers
Use eight 2-wire cables, connect to:
• T1+/T2- (Loudspeaker A / E)
• T3+/T4- (Loudspeaker B / F)
• T5+/T6- (Loudspeaker C / G)
• T7+/T8- (Loudspeaker D / H)
CH D
CH A
CH B
CH C
+
+
+
+
-
-
-
-
T8
T5
T6
T7
T4
T1
T2
T3
CH E
CH H
CH G
CH F
+
+
+
+
-
-
-
-
T1
T4
T3
T2
T5
T8
T7
T6
3 Channels: A+B C D
CHANNEL CONFIGURATION
Channel Configuration Locked to Design
Q A+B
Q C
Q D
BRIDGED
T1+ T3-
CH A+B
OUTPUTS TO SPEAKERS OUTPUTS TO SPEAKERS
CHANNEL CONFIGURATION
4 Channels: E F G H
Channel Configuration Locked to Design
Q E
Q F
Q G
Q H
For A+B (Bridged) One Loudspeaker
Use one 2-wire cable connect to:
• T1+/T3- (Loudspeaker A+B)
For C D (E F G H) (Separate) Two and Four Loudspeakers
Use six 2-wire cables, connect to:
• T1+/T2- (Loudspeaker E)
• T3+/T4- (Loudspeaker F)
• T5+/T6- (Loudspeaker C / G)
• T7+/T8- (Loudspeaker D / H)
CH AB
T1+ T2-
CH CD
T5+ T6-
CHANNEL CONFIGURATION
2 Pair of Paraller Channels: AB CD
Channel Configuration Locked to Design
CH D
CH A
CH B
CH C
+
+
+
+
-
-
-
-
T8
T5
T6
T7
T4
T1
T2
T3
CH E
CH H
CH G
CH F
+
+
+
+
-
-
-
-
T1
T4
T3
T2
T5
T8
T7
T6
OUTPUTS TO SPEAKERS OUTPUTS TO SPEAKERS
Q AB
Q CD
CHANNEL CONFIGURATION
1 Channel: EF+GH
Channel Configuration Locked to Design
Q EF+GH
CH EF+
T1
+
T5
AB (Parallel) CD (Parallel) For Two Loudspeakers
Use two 2-wire cables, connect to:
• T1+/T2- (Loudspeaker AB)
• T5+/T6- (Loudspeaker CD)
EF (Parallel) Bridged with GH (Parallel) For One Loudspeaker
Full power to one loudspeaker
Use one 2-wire cable, connect to:
• T1+/T5- (Loudspeaker EF+GH)
