Mixer – FX Channel
Mixer – FX Effect
The FX Channel is used to assign an effect to any of the
Input Channels used as inputs to the mixer. Each input
channel can have different levels of the effect applied. With
the exception of the amount, or level of the effect, all other
effect parameters are applied equally to the channels

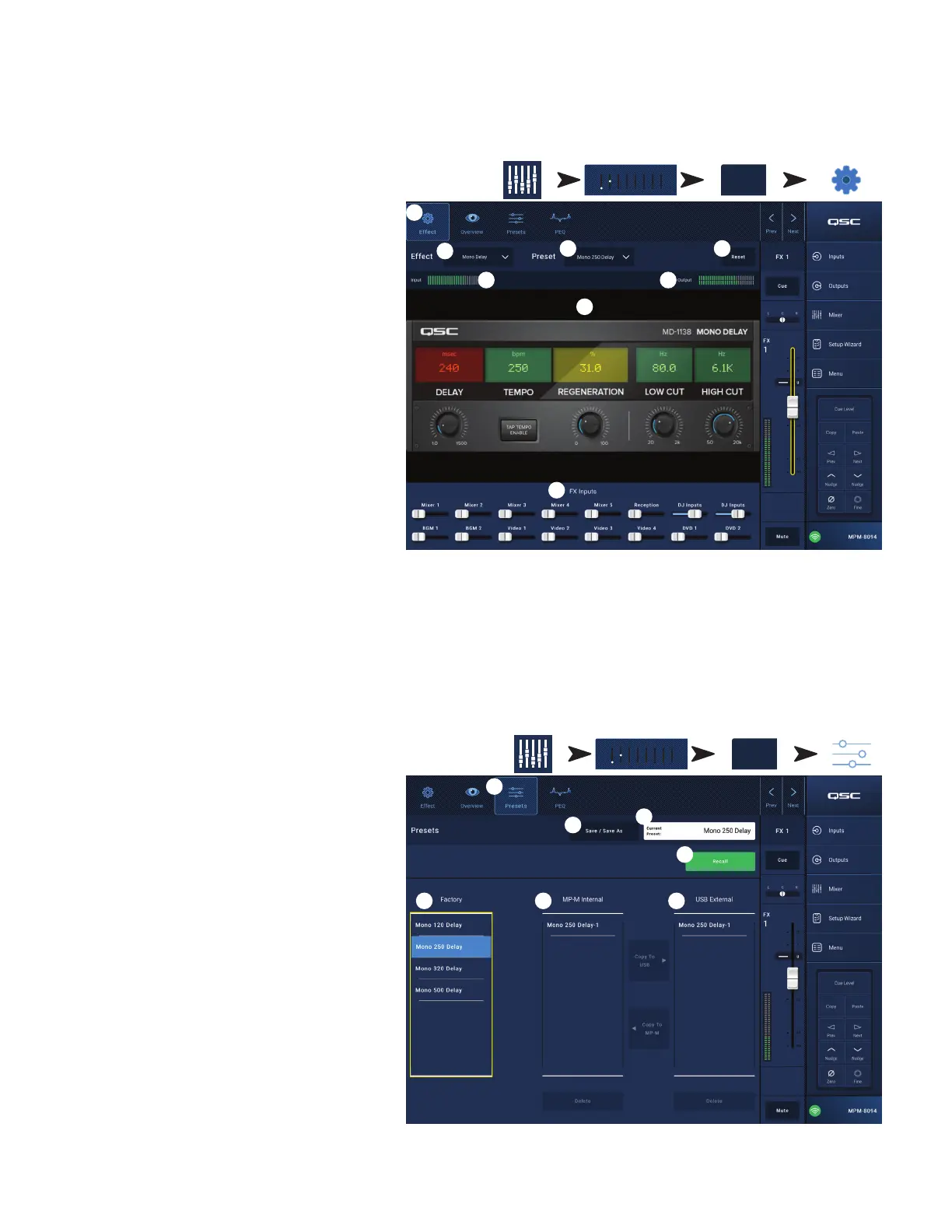

1. Effect button – Displays the Effect selection screen.
2. Effect select button – Touch to display a pop-up to make
an effect selection. The following selections are available:
• Mono Delay
• Stereo Delay
• Chorus
• Pitch Shift
• Dense Reverb
• Lush Reverb
• None
• Cancel
3.
Preset button – Touch to display the FX Presets
screen where preset selection can be made.
4. Reset button – Resets all Effect controls to the
factorydefault.
5. Input meter – Displays the input signal level.
6. Output meter – Displays the Output signal level after the effect has been applied.
7. Effect controls – These controls set the parameters for the effect. Each effect has its own controls to give its unique sound.
8. FX Inputs sliders – These control the amount of Input Channel signal going through the Effect. When the slider is at the left side, none of that
Input Channel goes through the effect processor. Far right gives that Input Channel the full effect of the Effect.
Mixer − FX Presets
The MP-M includes presets for each of the available Effects.
An FX Channel Preset consists of settings for the channel
EQ, Effect, and changes to the Effect that can be saved
and recalled.
Factory Presets
1. Presets button – Touch to display the Presets screen.
2. Save / Save As button – Touch to save the Current
Preset or save with a new name.
3. Current Preset field – Displays the name of the
currently active preset.
4. Recall button – Touch to recall the preset selected in
the Selection windows.
5. Factory window – Displays a list of presets for the
selected Effect. Touch one then touch Recall.
6. MP-M Internal window – Displays a list of presets
that have been saved or copied to the MP-M
Internalmemory.
7. USB External window – Displays a list of presets that
have been saved or copied to a USB device attached to
the MP-M.
