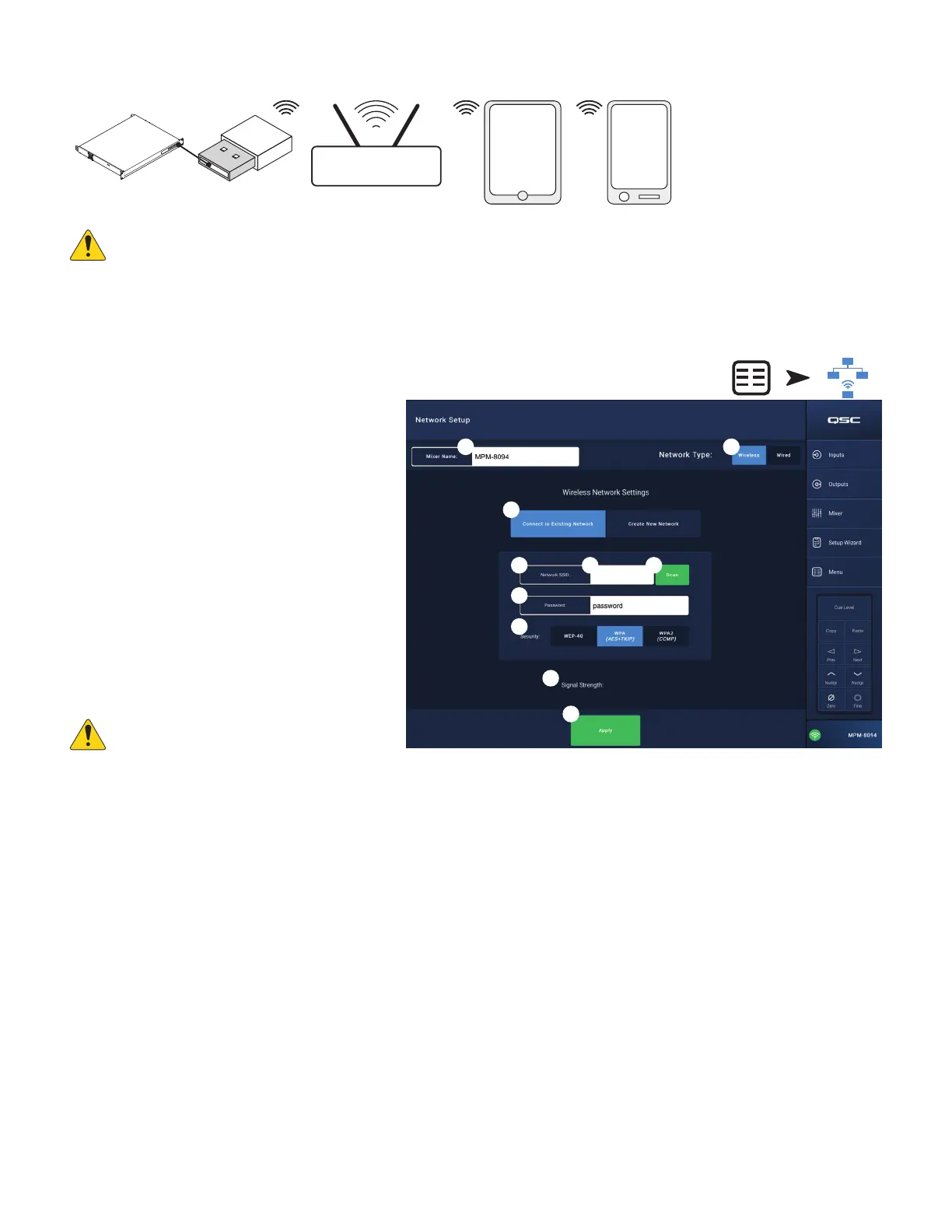

Menu – Wireless Network Setup: Connect to Existing Network
IMPORTANT: Requires an Ethernet Wi-Fi router and the USB Wi-Fi adapter (QSC Part # cp-000033-00).
Connect to Existing (Ethernet) Network using a USB Wi-Fi dongle provides short range wireless communication( 1 ) between an
MP-M mixer and a longer range wireless router. The Android and/or iOS remote devices with the apps, MP Install ( 3 ) or MP Manage ( 4 ) installed,
communicate ( 2 ) with the MP-M via the wireless router.
1. Mixer Name: – Enter a name for the MP-M Mixer.
Press Enter to confirm the change.
2. Network Type – Set to Wireless .
3. Select Connect to Existing Network .
4. Network SSID –
a. Enter a known SSID of an Ethernet wireless router.
Press Enter to confirm the choice.
OR
b. Scan – The mixer searches for, and displays, a
list of available wireless routers. Select the desired
wireless router.
5. Password – Enter the password for the wireless
router network being joined. Press Enter to confirm
thechange.
6. Security – Select the Security setting used by the
wireless router network.
7. Signal Strength – Displays an icon showing the
strength of the wireless router signal.
IMPORTANT: Make sure changes are
confirmed for all text fields by pressing Enter
while the cursor is in the field.
8. Apply – Touch to configure the mixer according to the network settings.
The devices can now connect to the mixer via the wireless router.
• A device connects to the wireless router in the device’s Wi-Fi settings using the router’s SSID (name) and password. Refer to the remote device
manufacturer’s instructions for joining networks.
• When the device is connected to the wireless router, follow instructions to logon to the MP-M.
