IMPORTANT!

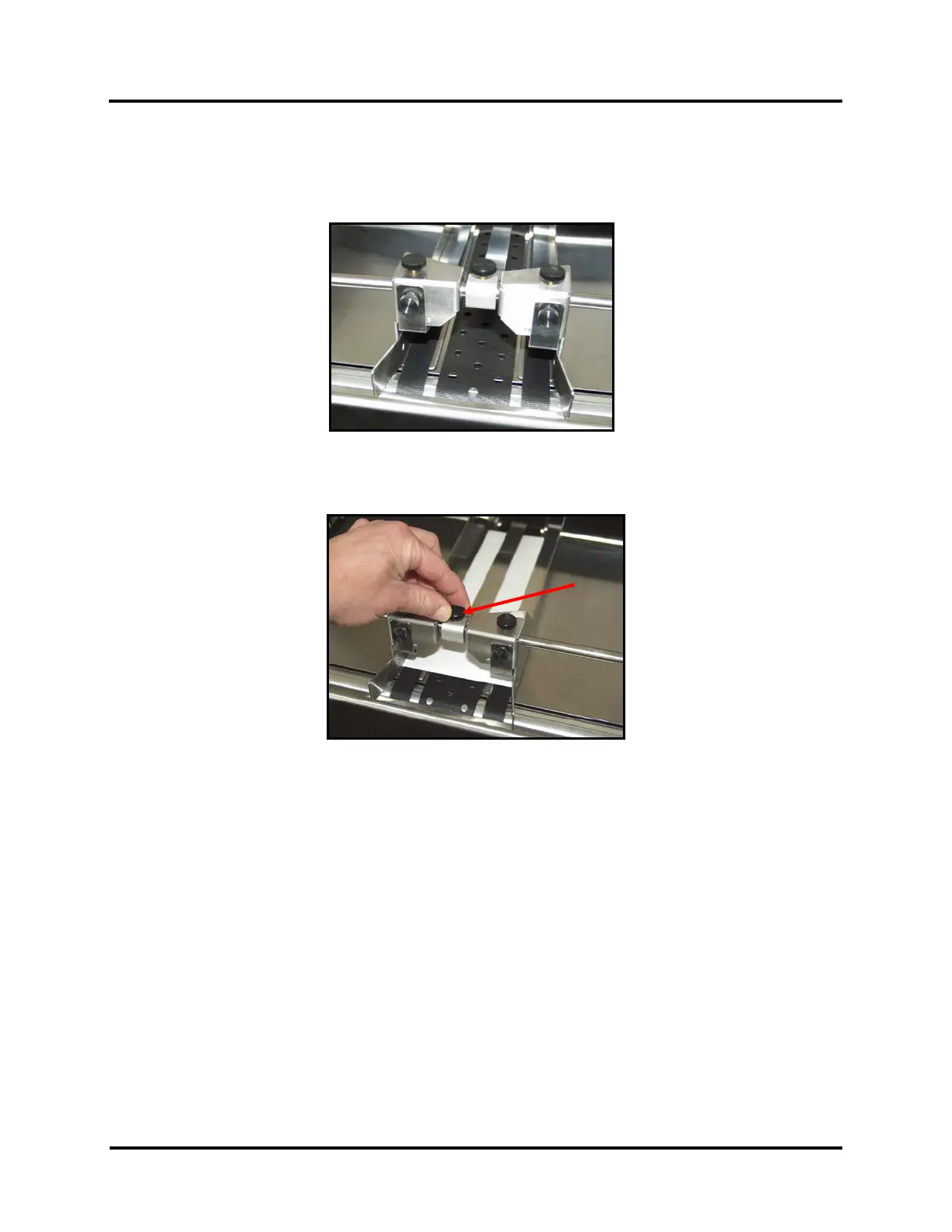

The two Outer Transport Belts should be adjusted so they ride over the bottom lip of the Media Side
Guides and are positioned very close the Media Side Guides, but not rubbing against them, as shown
below.
4. Position the Media Hold-Down Strap [2] so that it helps hold the media down, as shown below.
