SECTION 3
OPERATING PRINTER
20
AS-850R (R2L) MEDIA FEED DIRECTION
MAX PRINT RANGE: 12.75”
MEDIA 15” W x 17
” L
1” NO PRINT ZONE
1.25” NO PRINT ZONE
PRINT UNIT 3
12.75”
VERTICAL
RANGE
PRINT UNIT 2
11.75”
VERTICAL
RANGE
PRINT UNIT 1
11.75”
VERTICAL
RANGE
1
3
2
7
8
4
5
6

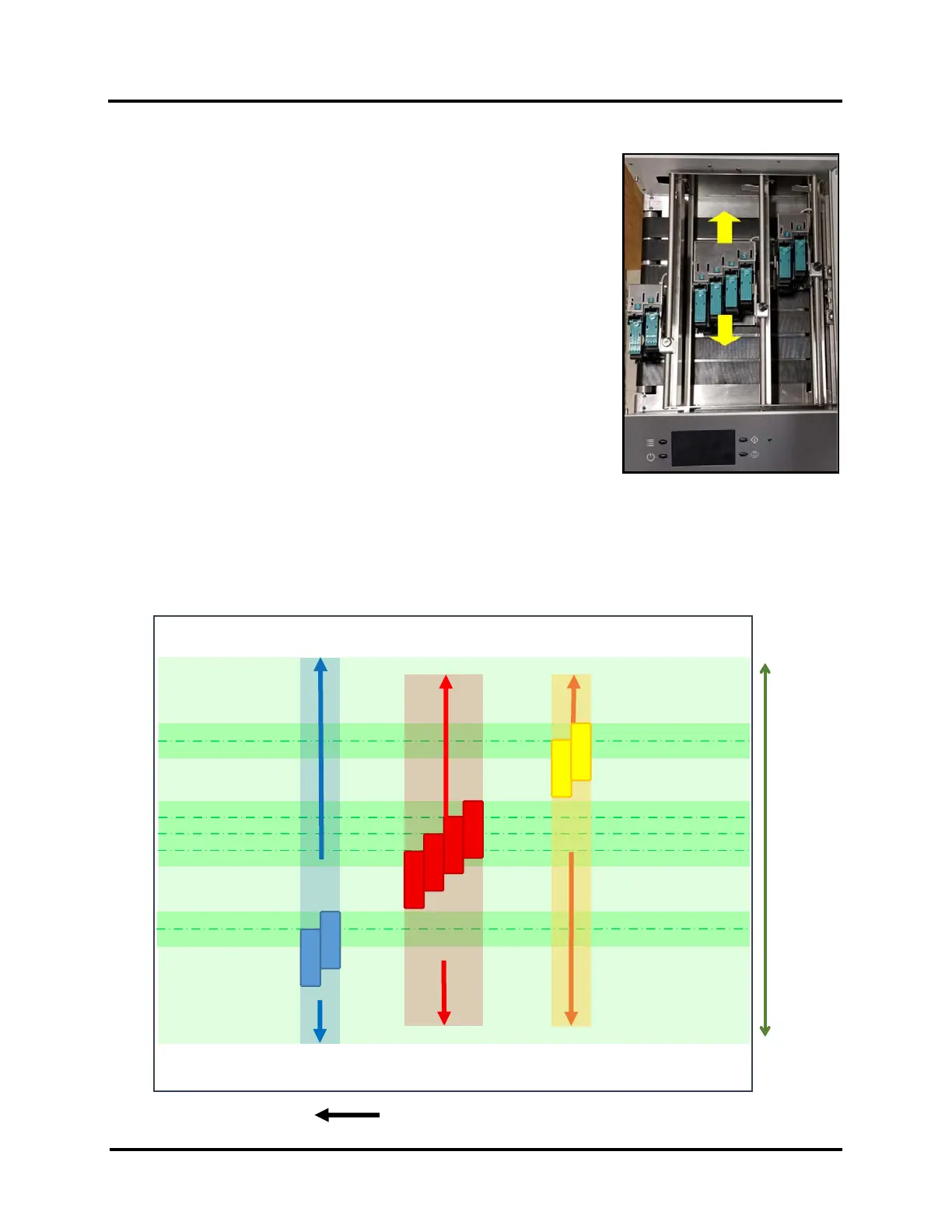

Print Range – AS-850R (R2L)
The sketch below shows the range of each Print Units movement on the
AS-850R (right to left feed) printer.
The example below represents a Media size of 15” Width x 17” Length (in direction of feed).
It also indicates the “No Print Zones” (unreachable print areas) when feeding Media that measures the maximum
Media width (15” W).
When feeding Media measuring 12.75” wide, or narrower, it is possible to position Print Unit 3 (Heads 7 & 8) to
print anywhere within the width of the Media.
NOTE: The maximum Media size for the AS-FDR14 (EasyFeed 140) Feeder is 14”W x 17”L.
