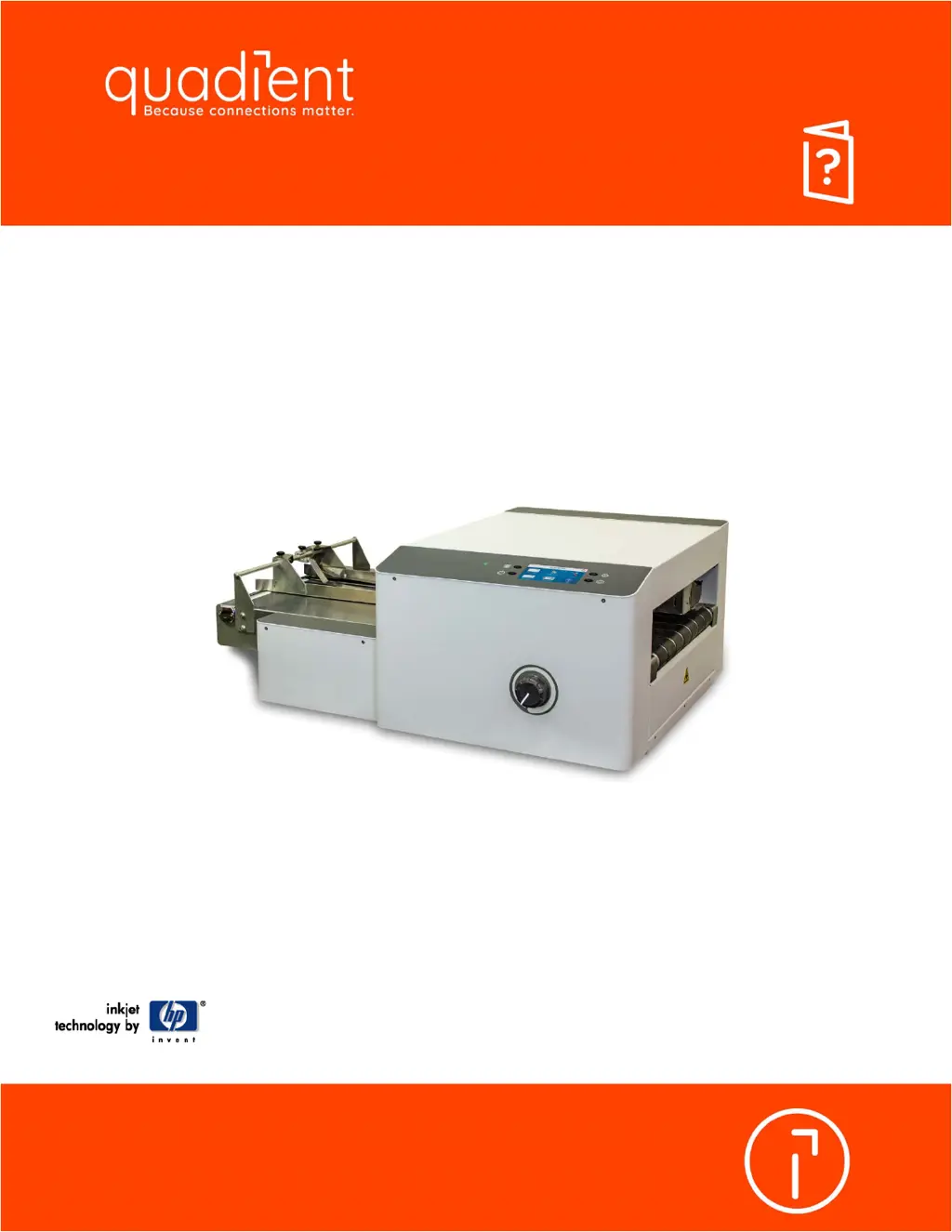

quadient AS-850 User Manual (English)

Questions and Answers:

J
Jeremy CobbAug 22, 2025
What to do if quadient AS-850 is not printing on media but counts pieces?
- J
  Jonathon MorrisAug 22, 2025
  If your Quadient Printer isn't printing on the media but is still counting pieces, it could be due to several reasons. Ensure the ink cartridges are installed correctly, and that they are compatible. Clean or replace clogged cartridges. Use the 'Ink Status' feature in the 'Quick Start' menu to verify cartridge recognition. Adjust the print unit's position and verify that the media runs properly under the printheads. Also, check your software settings for the correct paper size and margin adjustments. Finally, perform a proper shutdown and restart of the printer.
W
williamscynthiaAug 23, 2025
How to wake up quadient AS-850 when the touchscreen is black but the power light is on?
- R
  rhobbsAug 23, 2025
  If your Quadient Printer's touchscreen is black but the power indicator light is on, the printer might be in sleep mode. Try waking it by pressing any of the four mechanical keys or tapping the touchscreen. If that doesn't work, turn the main power switch off, wait 20 seconds, and then turn it back on.
M
Mark AcostaAug 25, 2025
How to fix black streaks in text from quadient AS-850?
- A
  Abigail LeeAug 26, 2025
  To resolve the issue of black streaks in text from your Quadient Printer, the likely cause is lint or paper dust on the printhead. You should clean and purge the cartridge nozzles as described in the section titled “Ink Cartridge (Printhead) Care”.
B
brussellAug 27, 2025
What to do if Quadient Printer touchscreen is white or showing splash screen?
- C
  Caitlin PowellAug 27, 2025
  If your Quadient Printer displays a white screen or the product brand splash screen and doesn't proceed, it could be due to a power-up issue caused by an improper shutdown. Allow it to sit for 60 seconds. If the white screen persists, turn off the main power switch, disconnect any communication cables (USB, Network), wait 20 seconds, and then power it back on.
R
Ryan KochAug 27, 2025
Why does my quadient AS-850 have white streaks in text or graphics?
- O
  Oscar RobinsonAug 27, 2025
  To address white streaks in text or graphics from your Quadient Printer, the issue may stem from clogged or damaged nozzles, lint or dust blocking the nozzles, or poor contact between the printhead and the printhead pen stall. You should clean and purge the cartridge nozzles as described in the section titled “Ink Cartridge (Printhead) Care”. Also, try removing and reinserting the ink cartridge into the pen stall. Clean and dry the cartridge contacts. If the problem persists, swap positions with a known-good cartridge to determine if it's a cartridge issue. If the problem follows the cartridge, insert a new print cartridge; otherwise, contact technical support.
J
Jacqueline StevensAug 29, 2025
What to do if quadient AS-850 is not printing on media and does not count pieces?
- A
  Ashley MejiaAug 29, 2025
  If your Quadient Printer is not printing on the media and does NOT count the pieces being fed, it is likely that the media is not passing through the media sensor or the sensor is dirty. Try adjusting the media feed position (side guides) to ensure the media is centered in the printer. Also, clean the media sensor.
M
Melinda ValentineAug 30, 2025
Why did one or more cartridges stop printing during a quadient AS-850 print job?
- N
  Norma SmithAug 30, 2025
  If one or more cartridges in your Quadient Printer stop printing during a print job, it could be due to a cartridge issue, an empty cartridge, or a static discharge issue. Try checking, cleaning, or replacing the ink cartridge. You can also pause the printing, select the records to reprint, and then resume printing.
B
Brian CamposSep 1, 2025
What to do if one or more quadient AS-850 cartridges are not printing from the start?
- W
  William ThorntonSep 1, 2025
  If one or more cartridges are NOT printing from the start of a print job on your Quadient Printer, this could be due to a cartridge issue, an empty cartridge, or a recognition issue during the 'wake' process. Try checking, cleaning, or replacing the ink cartridge. Pause the job, then open and close the latch lever. If the cartridge is recognized, reprint the records and resume printing. If the issue continues, swap the cartridge positions; if the problem follows the cartridge, replace it. Also, ensure you wake the printer before sending jobs.
T
Taylor MillsSep 2, 2025
How to resolve blurry address issue on quadient AS-850?
- K
  kathrynlindseySep 2, 2025
  To resolve a blurry address issue with your Quadient Printer, the image may not be sharp. Adjust the printhead closer to the media by adjusting the media thickness setting. You may also need to install a new ink cartridge.
J
Jeffrey KeithSep 4, 2025
How to fix a paper jam (ERROR 01) on my Quadient Printer?
- J
  Jonathan WardSep 4, 2025
  If your Quadient Printer displays 'PAPER JAM (ERROR 01)', it's due to a paper jam. This can happen if the media is curled, bent, too thin, too thick, sticking together, overlapping, or if there's no gap between pieces. Clear the media from the feeder and/or print transport area. Ensure media thickness is within the range of 0.008" (0.2 mm) to 0.5" (12.7 mm), or a maximum of 0.375” thick for AS-FDR14 feeders. Adjust the feeder's sheet separators, check/adjust media thickness, and reduce feeder speed to create a 1-2” gap between pieces. Press OK to continue. Use Reprint (on Quick Menu screen) to retrieve/restore any missing or misprinted pages in the print job.
