Position Print Units
1. Loosening locking screw(s) [A].
2. Position Print Unit(s) as needed to achieve the desired print
locations on Media being fed.
TIP: Raise the Print Carriage (Media Thickness) to make it
easier to move the Print Unit.
3. Secure locking screw(s) [A]
Tip: A Print Area Indicator is attached to the exit side of
each Print Unit. These are useful when trying to achieve the
desired print position for each Print Unit.

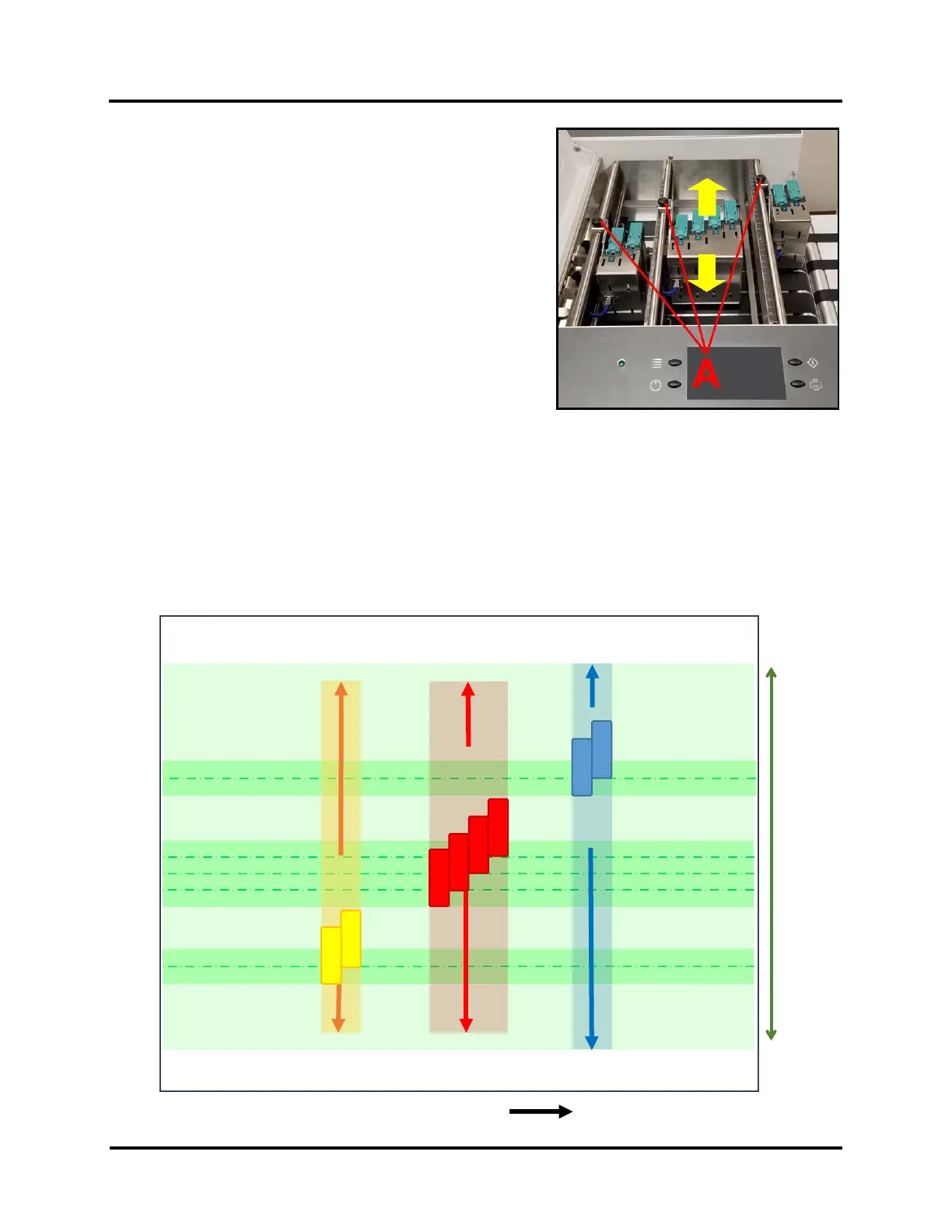

Print Range – AS-850 (L2R)
The sketch below shows the range of each Print Units movement on the AS-850 (left to right feed) printer.
It also indicates the “No Print Zones” (unreachable print areas) when feeding Media that measures the maximum
Media width (15” W).
The example below represents a Media size of 15” Width x 17” Length (in direction of feed).
When feeding Media measuring 12.75” wide, or narrower, it is possible to position Print Unit 3 (Heads 7 & 8) to
print anywhere within the width of the Media.
NOTE: The maximum Media size for the AS-FDR14 (EasyFeed 140) Feeder is 14”W x 17”L.
MEDIA 15” W x 17
” L
1” NO PRINT ZONE
1.25” NO PRINT ZONE
AS-850 (L2R) MEDIA FEED DIRECTION
MAX PRINT RANGE: 12.75”
PRINT UNIT 1
11.75”
VERTICAL
RANGE
PRINT UNIT 3
12.75”
VERTICAL
RANGE
PRINT UNIT 2
11.75”
VERTICAL
RANGE
6
5
4
3
8
7
2
1
