QUANTA QuantaGrid Series User Manual

ABOUT THE SYSTEM A TOUR OF THE SYSTEM
1-5
1.3 A Tour of the System
System Overview

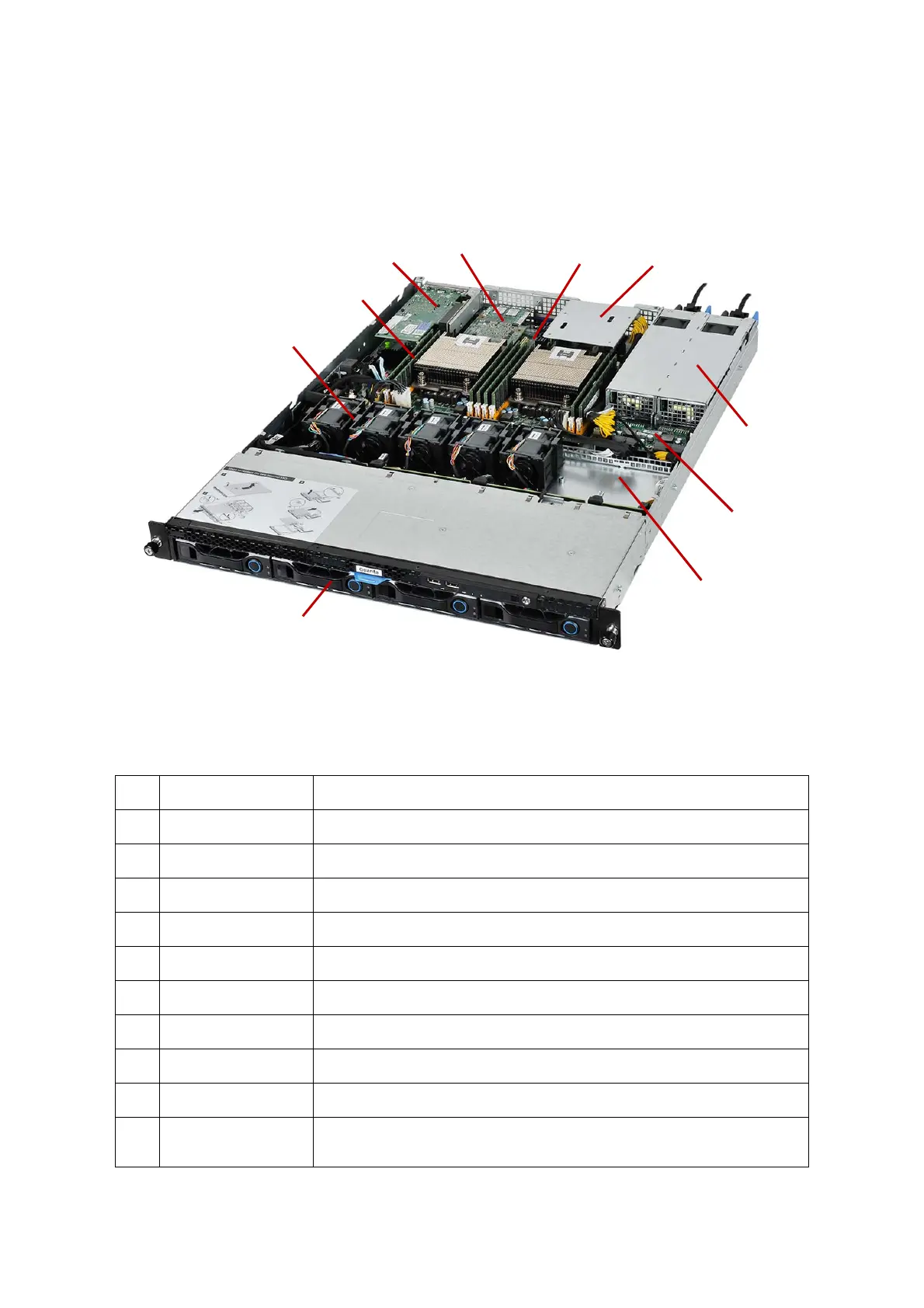

Figure 1-1. System Component Overview
Table 2: Component Overview
NO.ITEM DESCRIPTION
1 Fan module (5) System fan modules
2 DIMM slots (8) DDR4 DIMM slots
3 Expansion slot Supports x8 PCIe 3.0 LP MD-2 PCIe card only
4 Expansion slot Supports OCP mezzanine only
5 Mainboard System mainboard
6 Expansion slot Supports Quanta mezzanine only
7 PSU assembly Redundant power supply unit assembly
8 PCB Power Distribution Board
9 Backup battery Backup battery for mezzanine card
10 HDD assembly
 3.5” model: 4 x hard disk drive assemblies + 2 x 2.5” SSD
 2.5” model: 10 x hard disk drive assemblies
2
6
8
1
7
5
4
10
9
3
