LED Status Definitions
Front Control Panel LED
For further information and location of the FCP LEDs, see Front Control Panel LED on
page 1-10.

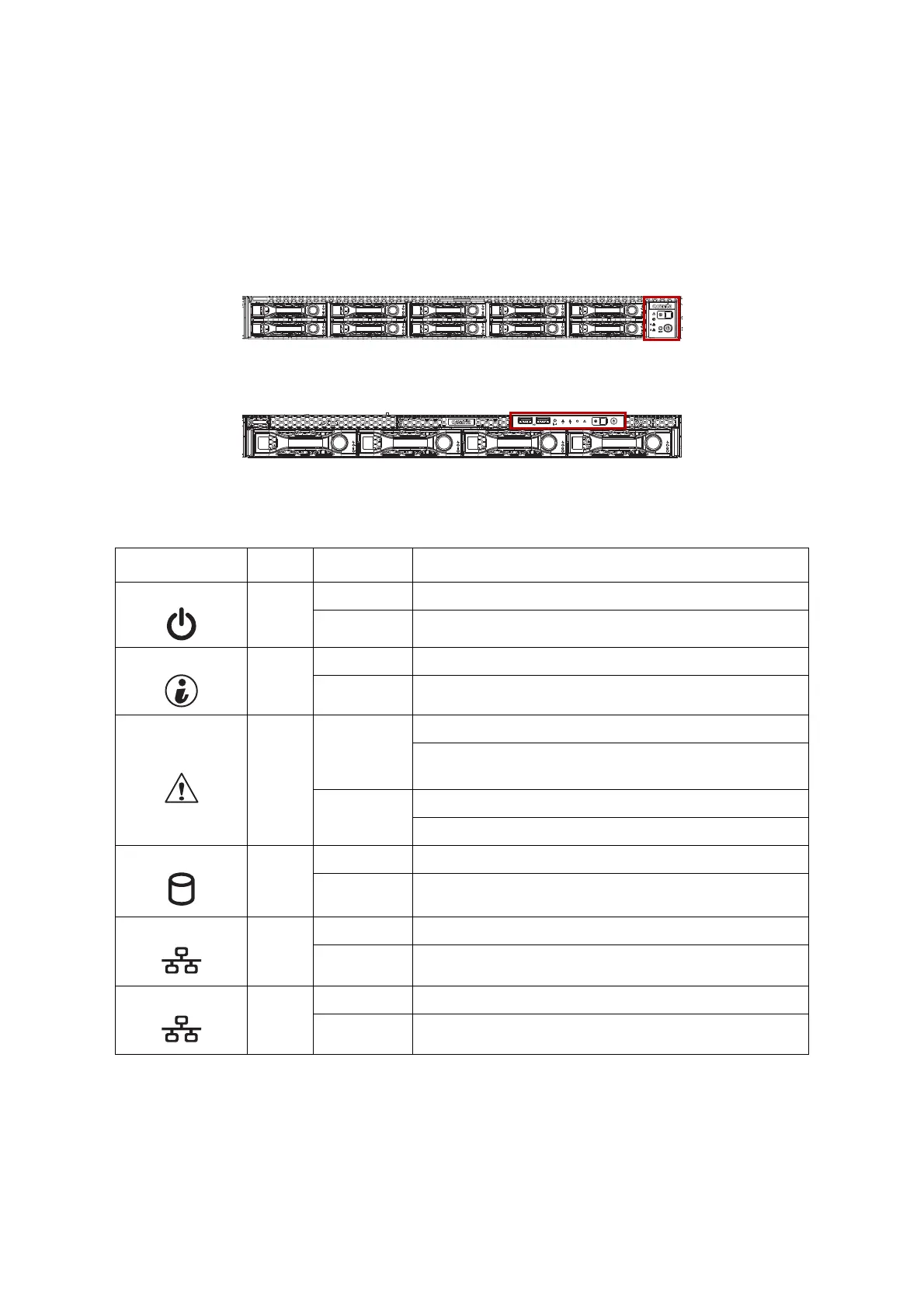

Figure 1-9. 2.5” System Front Control Panel LEDs
Figure 1-10. 3.5” System Front Control Panel LEDs
Table 8: Front Control Panel LED Behavior
NAME COLOR CONDITION DESCRIPTION
Power LED
Blue
On System power on
Off System power off
Identification
Blue
On Unit selected for identification
Off No identification request
Fault LED
Amber
Blinking
Critical Failure: critical fan, voltage, temperature state.
Non-Critical Failure: non-critical fan, voltage, temperature
state, CPU thermal trip, DC off.
Off
SEL cleared
Last pending warning or error has been de-asserted.
HDD activity
Blue
Blinking Hard disk drive access (only on board SATA port)
Off No access (non-SAS)
LAN1 LED
Blue
On Link
Blinking LAN access (off when there is traffic)
LAN2 LED
Blue
On Link
Blinking LAN access (off when there is traffic)
