ABOUT THE SYSTEM SYSTEM REAR VIEW
1-9
Power Sub-System

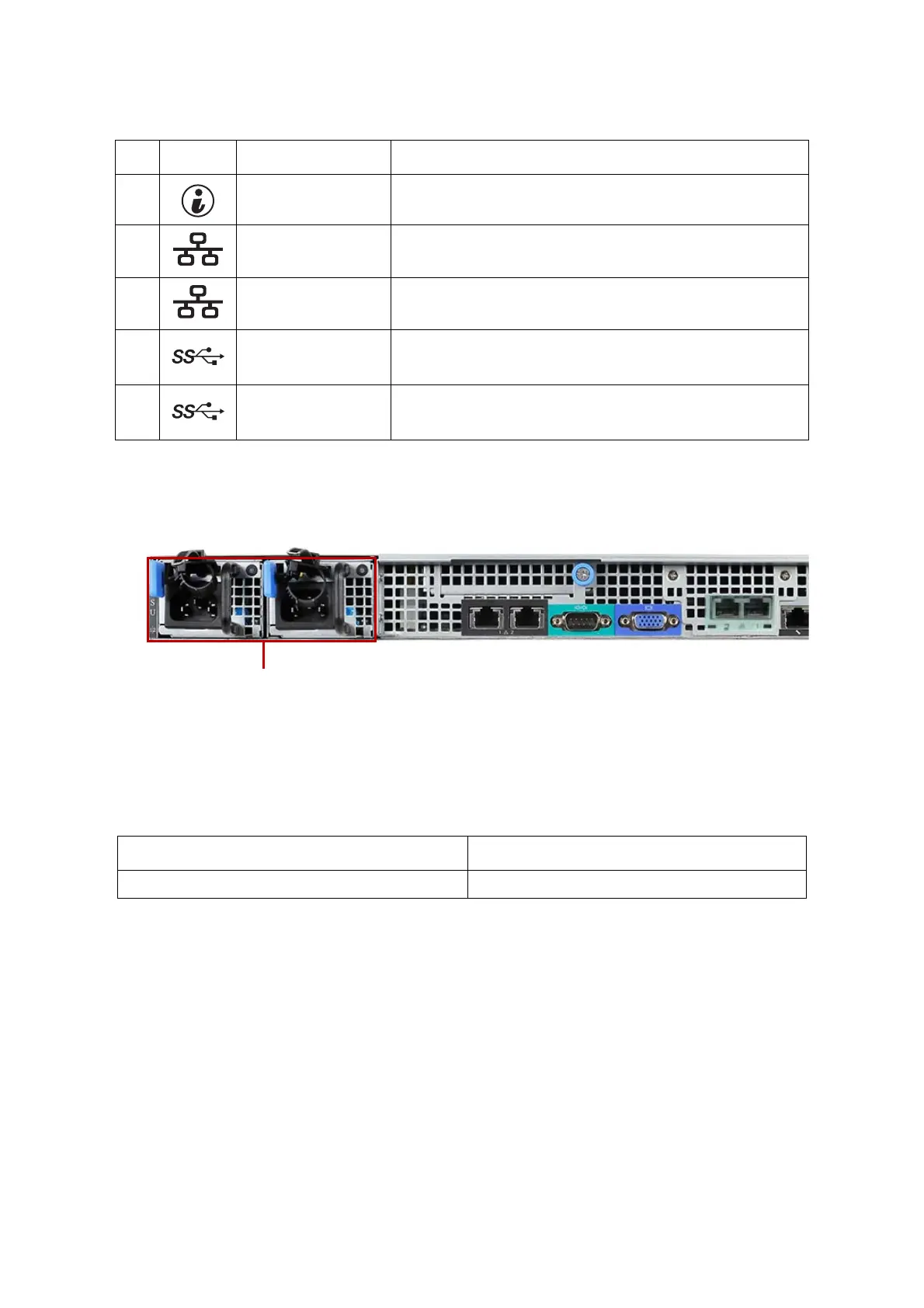

Figure 1-8. PSU to Mainboard Module Description
A single power supply unit (default) and power distribution board (PDB) are supplied in
the system. A secondary PSU is available for redundacy functionality.
6 ID button with LED
Press to light up blue to identify the system. Press again to turn
the ID LED off.
7NIC3 RJ45 connector
8NIC4 RJ45 connector
9 USB port USB 3.0 port 0
10 USB port USB 3.0 port 1
Table 7: Power Supply Units by Model
PSU AC INPUT
1+1 High efficiency redundant hot-plug PSU 100-240Vac, 50-60Hz, 10-5A
Table 6: System Rear I/O Defintition (Continued)
NO.ICON NAME DESCRIPTION
