664 Appendix B Image Reference

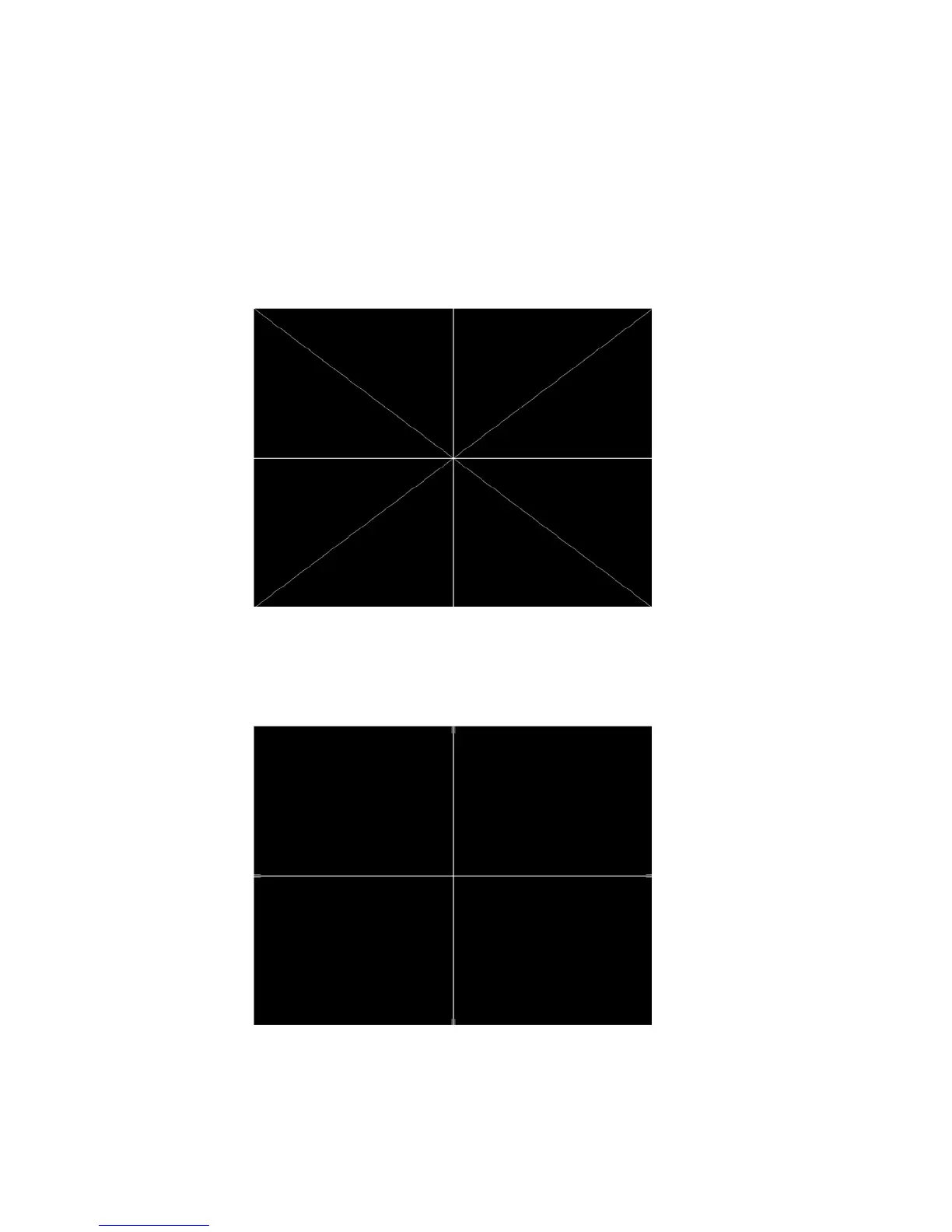

Description The primary version of the Outline0 image consists of a rectangular white border on a
black background. The border is one (1) pixel wide and defines the active video area. Two
(2) diagonal lines join the opposite corners. A-full size cross is centered in the image. The
horizontal line of the cross is one (1) pixel thick for formats with an odd number of active
lines and two (2) pixels thick for formats with an even number of active lines. The vertical
line of the cross is one (1) pixel thick for formats with an odd number of active pixels per
line and two (2) pixels thick for formats with an even number of active pixels.
The secondary version of these images draw black lines on a white background.
In the Outline1 version, the two diagonal lines are removed and short marker lines are
added to the border lines near to where the cross lines meet the border lines. The markers
appear at both sides of the cross lines. The distance between the marker lines and the
cross lines is the greater of either two (2) pixels or one (1) millimeter.
