Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 17
Note: The additional hard drives are not keyed to a particular slot. You may install any hard drive in
any slot, as long as it is installed in slot 6–11.
Caution: Use only the Quantum-supplied hard drives in the DXi4700 Node. Do not use any other
drive (not even one taken from another DXi).
a. On the drive carrier, press the release button to extend the handle (see Figure 10 below).

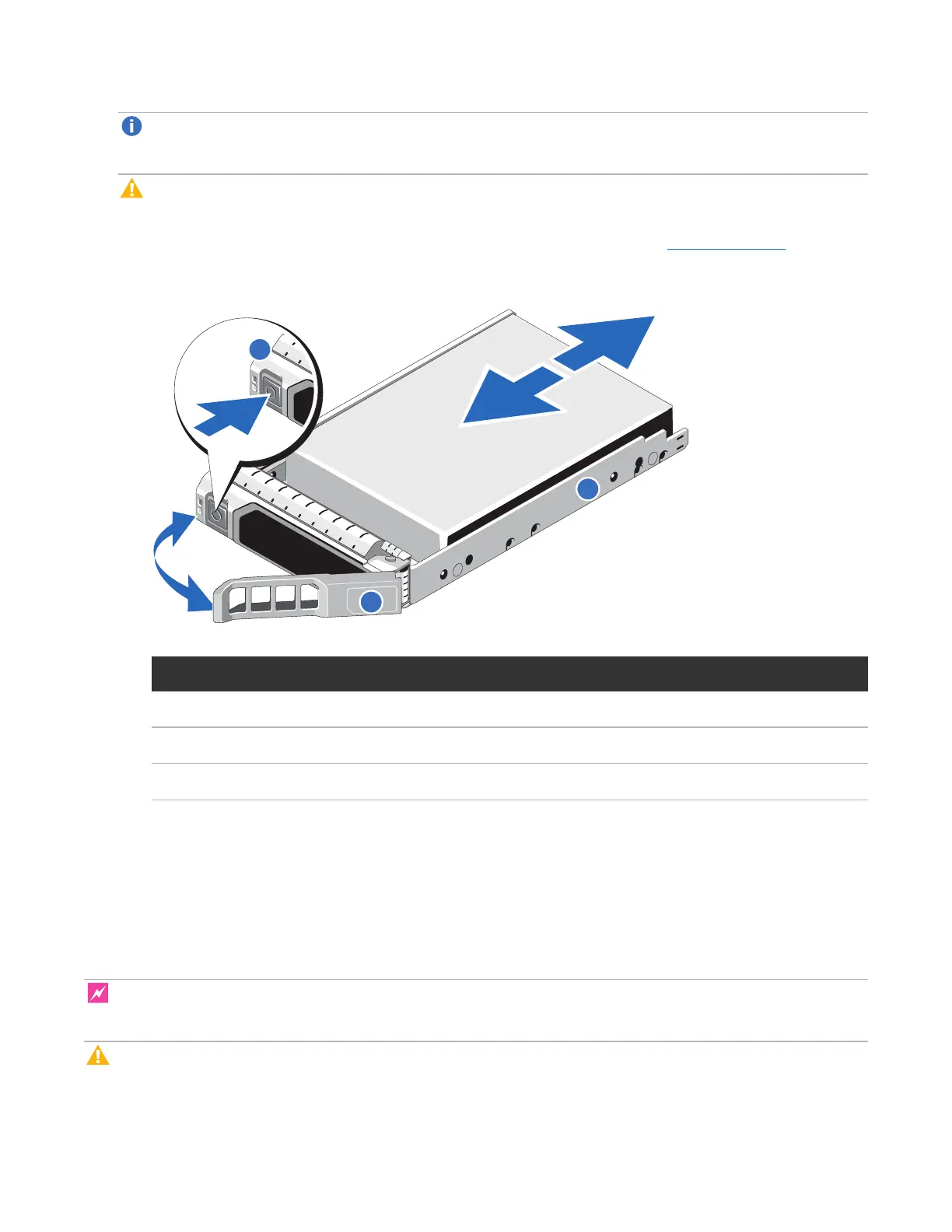

Figure 10: Installing a Node Hard Drive
Item Description
1 Hard drive carrier
2 Hard drive handle
3 Release button
b. Insert the drive carrier into the drive slot and push it in all the way.
c. Close the drive carrier handle to lock the drive in place.
Opening the Node Cover
To remove the DXi4700 Node from the rack and remove the top cover:
WARNING: Opening or removing the system cover when the system is on may expose you to a risk of
electric shock.
Caution: Use appropriate ESD precautions, including the use of a grounding strap, when working
inside the Node.
