Quantum DXi6900

Chapter 1: System Description
Drive Storage
Quantum DXi6900 User’s Guide 26

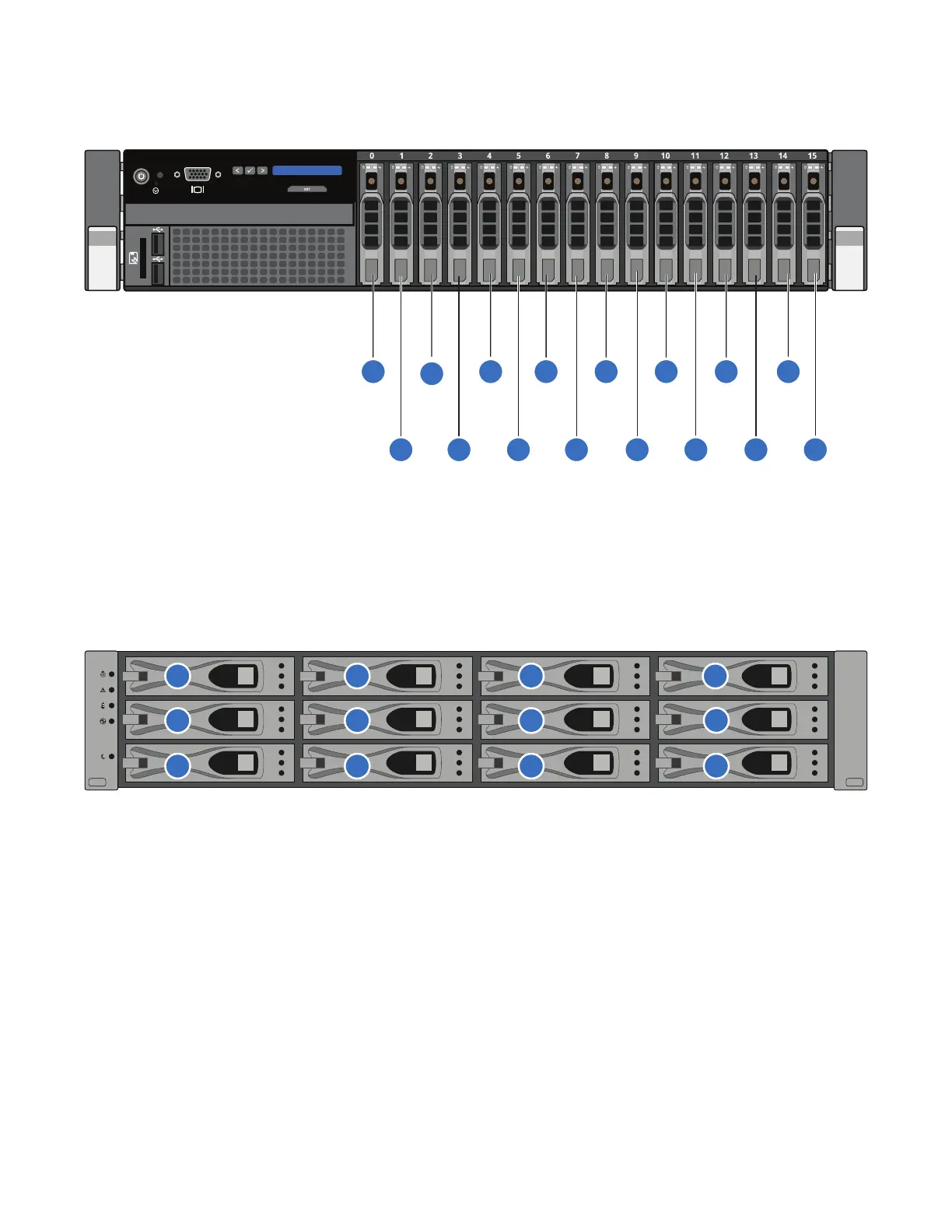

Figure6:DXi6900 G1/G2 Node Drive Slot Numbering
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1-HDDSlot0 5-HDDSlot4 9-HDDSlot8 13-HDDSlot12
2-HDDSlot1 6-HDDSlot5 10-HDDSlot9 14-HDDSlot13
3-HDDSlot2 7-HDDSlot6 11-HDDSlot10 15-HDDSlot14
4-HDDSlot3 8-HDDSlot7 12-HDDSlot11 16-HDDSlot15
Figure7:DXi6900 Array and Expansion Module Drive Slot Numbering
1 2
3
4
5
6
7
8
9 10 11 12
1-HDDSlot1 4-HDDSlot2 7-HDDSlot3 10-HDDSlot4
2-HDDSlot5 5-HDDSlot6 8-HDDSlot7 11-HDDSlot8
3-HDDSlot9 6-HDDSlot10 9-HDDSlot11 12-HDDSlot12
