Quantum DXi6900

Chapter 2: Basic Operations
DXi6900 Node
Quantum DXi6900 User’s Guide 46

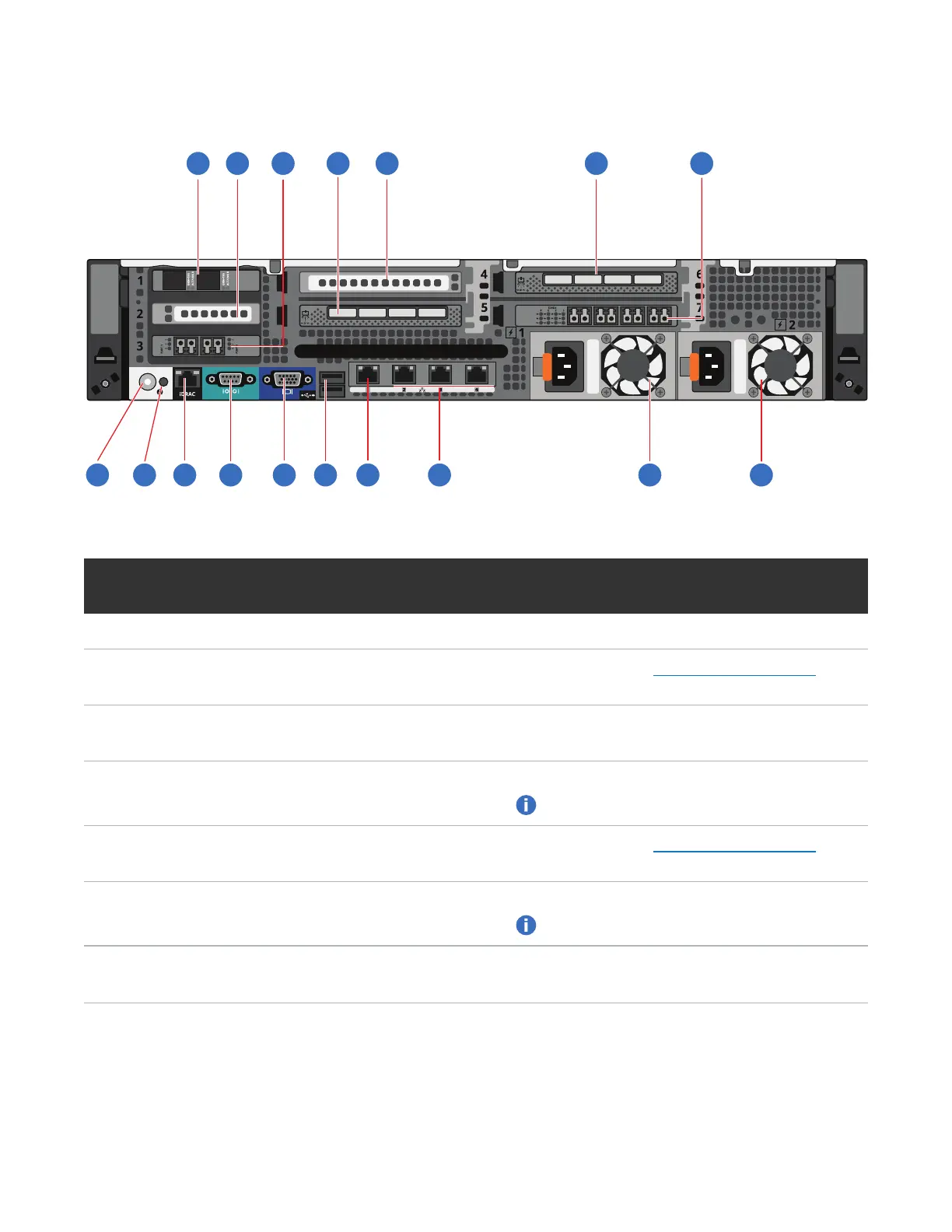

Figure19:Node Rear View - DXi6900 G1
1
1
2
3 4
5 6
7
8
9 10 11 12 13 14 15 16 17
Table1:Rear Panel Connectors - DXi6900 G1
Item

Indicator,Button,orConnector Icon Description
1 2 x 10 GbE (SFP+) Ethernet ports For data ingest/read.
2 (Optional) 2 x 10 GbE (SFP+) Ethernet
ports or 4 x 1 GbE Ethernet ports
For data ingest/read. Table 2 on the next page lists
all DXi6900 G1 configuration options.
3 2 x 8 Gb or 2 x 16 Gb Fibre Channel
ports
For path to tape or VTL ingest/read.
4 4 x 6 Gb SAS ports For connection to Array modules (RBOD)s.
Note:The rightmost two ports are not used.
5 (Optional) 2 x 10 GBase-T Ethernet port For data ingest/read. Table 2 on the next page lists
all DXi6900 G1 configuration options.
6 4 x 6 Gb SAS ports For connection to Array modules (RBOD)s.
Note:The rightmost two ports are not used.
7 4 x 8 Gb or 2 x 16 Gb Fibre Channel
ports
For path to tape or VTL ingest/read.
