Quantum DXi6900

Chapter 2: Basic Operations
DXi6900 Node
Quantum DXi6900 User’s Guide 49

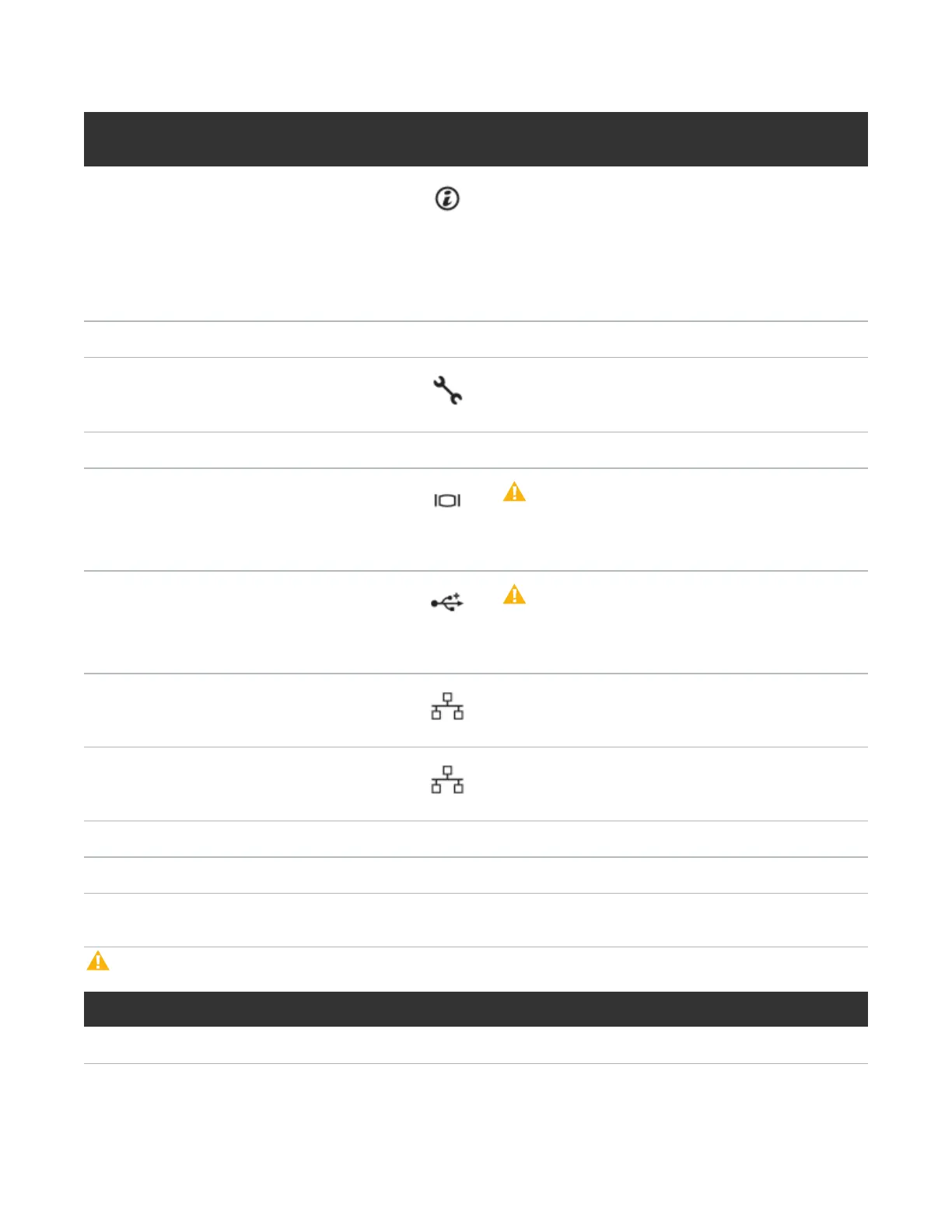

Item

Indicator,Button,orConnector Icon Description
6 System identification button Press to toggle the system ID on and off. The
identification buttons on the front and back panels
can be used to locate a particular system within a
rack. When one of these buttons is pressed, the LCD
panel on the front and the system status indicator on
the back flashes until one of the buttons is pressed
again.
7 System identification connector Not used.
8 iDRAC port For Quantum use only.
9 Serial connector For Quantum use only.
10 VGA connector
Caution:Use of connected peripheral devices,
such as a USB or PS/2 keyboard and mouse or
a VGA display, is not supported and may cause
incorrect system operation.
11 USB 2.0 connectors (2)
Caution:Use of connected peripheral devices,
such as a USB or PS/2 keyboard and mouse or
a VGA display, is not supported and may cause
incorrect system operation.
12 Service port For Quantum use only.
13 3 x 1 GbE Ethernet ports For data ingest/read.
14 Power supply (PSU1) 750 watt hot-swappable power supply.
15 Power supply (PSU2) 750 watt hot-swappable power supply.
Table4:DXi6900 G2 and DXi6900-S PCI Slot Configuration Options
Caution:The PCI slot location for each card must be followed in each configuration option.
PCISlot4 PCISlot5 PCISlot7
2 x 16 Gb Fibre Channel
