GV200 User Manual
3.2. Antenna Interface
3.2.1. Install Antennas
There are two Fakra antenna connectors on GV200, the blue one for GPS and the purple one
for GSM. Please find the GPS antenna and GSM antenna in package box. Install them to the
correct Fakra connector as following.

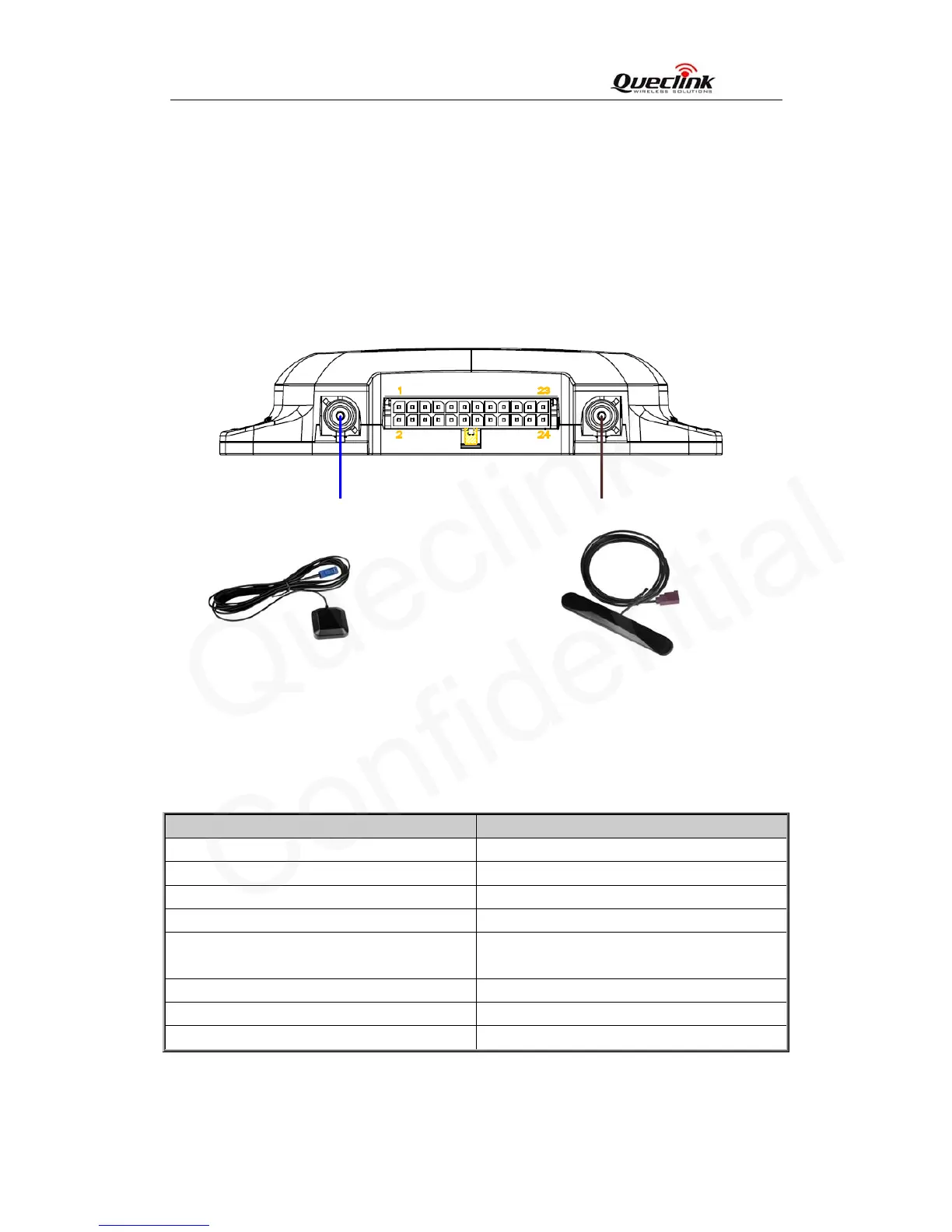

Figure 4: The Antennas of GV200
3.2.2. GPS antenna specification
Table 4: GPS antenna specification
GPS antenna: Frequency: 1575.42MHz
Bandwidth: >5MHz
Beamwidth: >120 deg
Supply voltage: 3.3V
Polarization: RHCP
Gain: Passive: 0dBi minimum
Active: 15dB
Impedance: 50Ω
VSWR: ﹤2
Noise figure: ﹤3
TRACGV200UM001 - 10 -
