Quectel 5G Series User Manual

5G Module Series
5G EVB User Guide
5G_EVB_User_Guide 11 / 36
J0901
EARPHONE
J2002
J2003
USIM2
card
SD
card
J1301
DBG_UART
MAIN_UART
J0303
5V/3A
J1402
J0801
SPK
ADAPTER

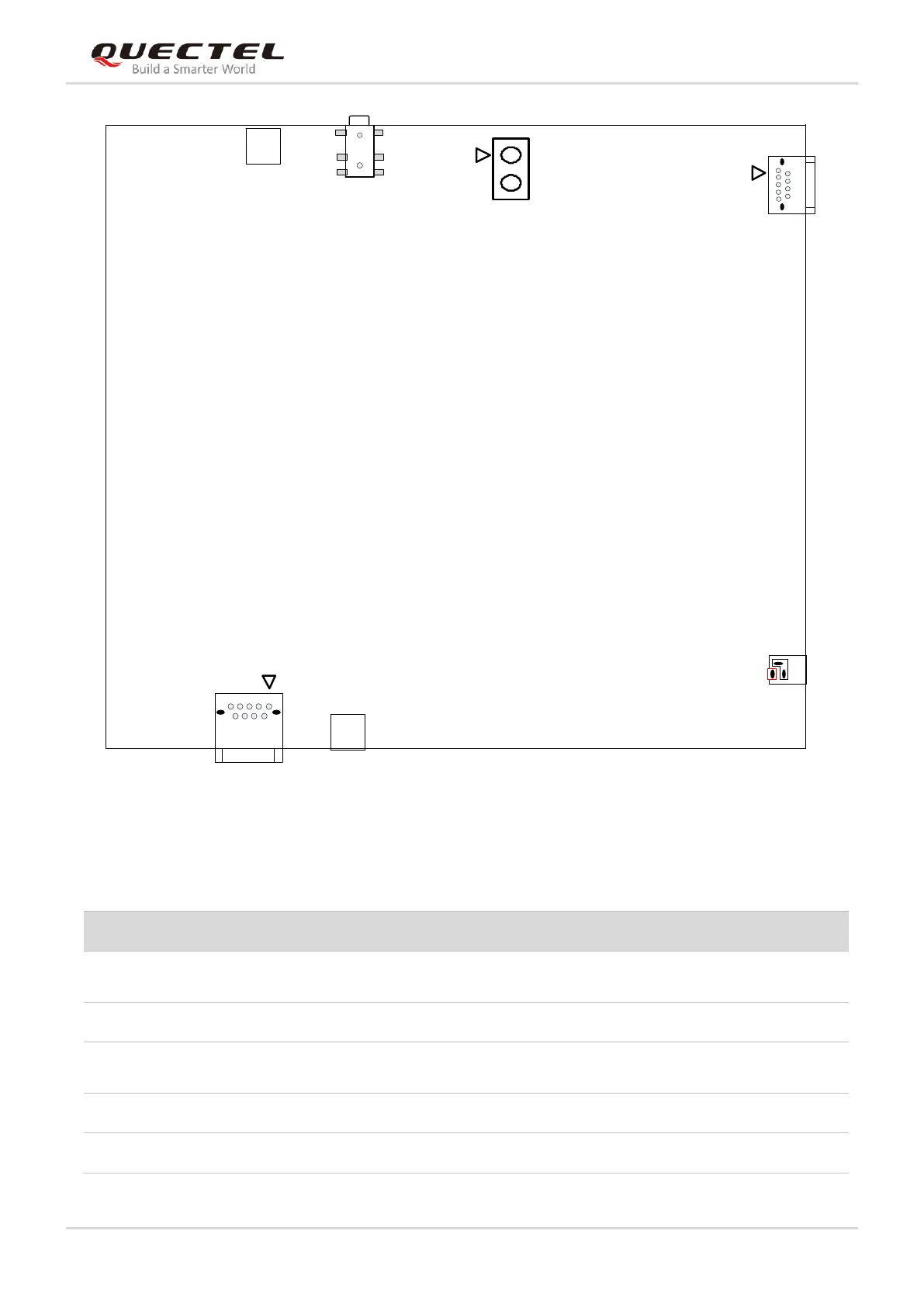

Figure 2: Bottom View for Component Placement of the EVB
Table 2: Interfaces of 5G EVB
Interface
Reference No.
Description
Power Supply
J0303
The power jack on the EVB
Typical supply voltage: +5 V/ 3 A
Power Switch
S0301
VBAT ON/OFF control
PWRKEY
S0202
Power key (push button)
Used to turn on/off the module
PON
J0203
Auto-power on control
USB_BOOT
J0201
Emergency download
