3.12. Wi-Fi Interfaces (J0701/J0702)
The Wi-Fi TE-A interface is designed to accommodate the TE-A of Wi-Fi (FG50V) modules. The TE-A is
connected to the EVB via BTB connectors J0701 and J0702. The interface allows customers to easily test
the Wi-Fi function of the module or to develop applications with Wi-Fi function.
The following two figures show the connection between FG50V-TE-A and EVB.
J0701 FG50V-TE-A
PCM
BT_UART
COEX_UART
GND
WLAN_EN
WLAN_PWR_EN2
WLAN_PWR_EN1
VDD_1V8
BT_EN
WLAN_SLEEP_CLK
PCM
BT_UART
COEX_UART
WLAN_EN
WLAN_PWR_EN2
WLAN_PWR_EN1
BT_EN
WLAN_SLEEP_CLK
VDD_3V3
WL_LAA_AS_EN
WL_PA_MUTING
WL_LAA_RX
WL_LAA_TX_EN
WL_TX_EN
WL_LAA_AS_EN
WL_PA_MUTING
WL_LAA_RX
WL_LAA_TX_EN
WL_TX_EN
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
J0702
GND
PCIe
PCIe
S2_1.2V S2_1.2V
S3_0.8V
S3_0.8V
S4_1.9V S4_1.9V
38.4MHz 38.4MHz

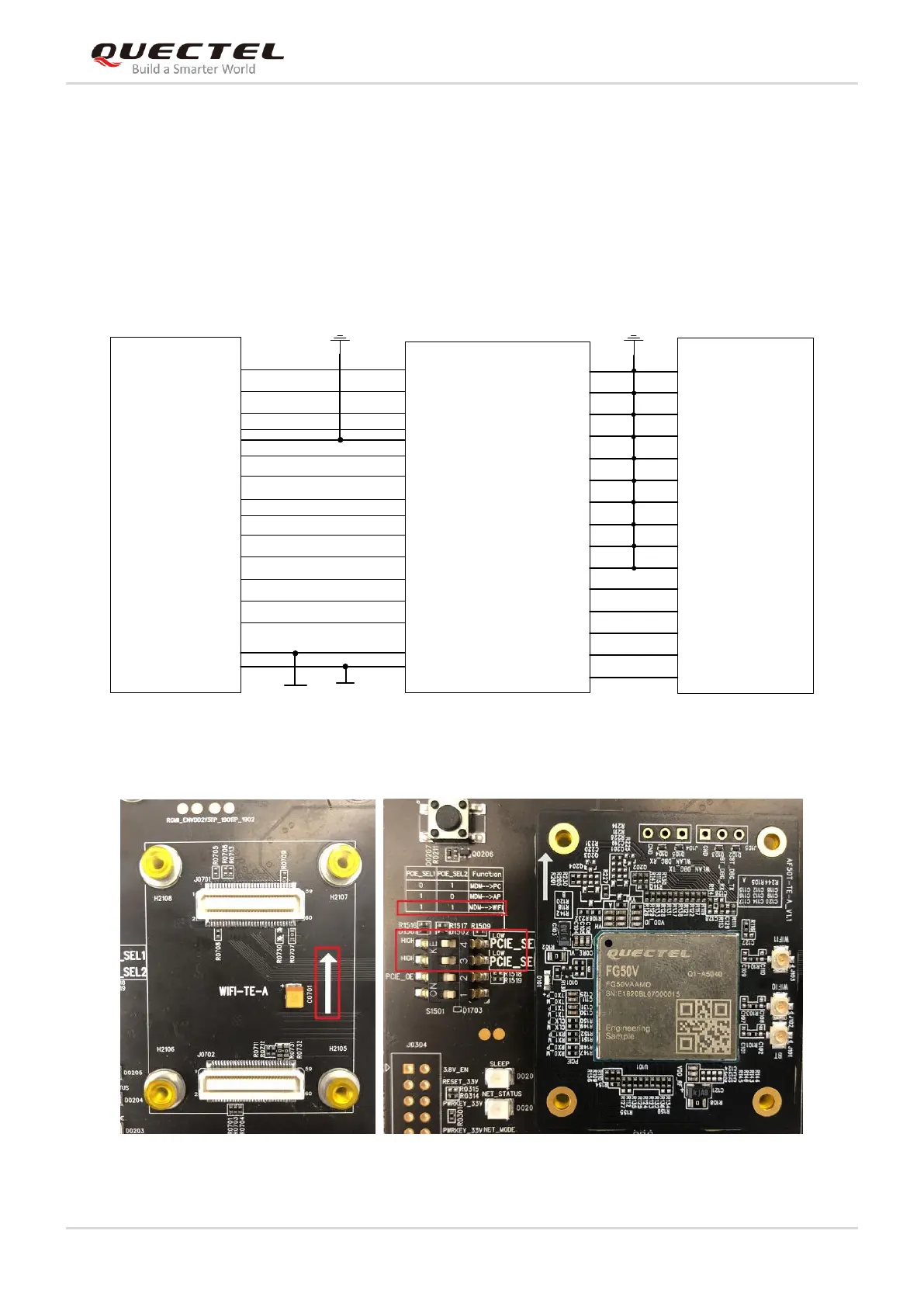

Figure 25: Simplified FG50V-TE-A Interface Schematic
Figure 26: Connection between FG50V-TE-A and the EVB
