5G Module Series
5G EVB User Guide
5G_EVB_User_Guide 19 / 36
3.3. PHY TE-A Interface (J1901/J1902)
The PHY TE-A interface is designed to accommodate the PHY TE-A (AR8035-TE-A). The PHY TE-A is
mounted onto and connected to the EVB via BTB connectors J1901 and J1902.
The following two figures displays the connection between AR8035-TE-A and EVB.

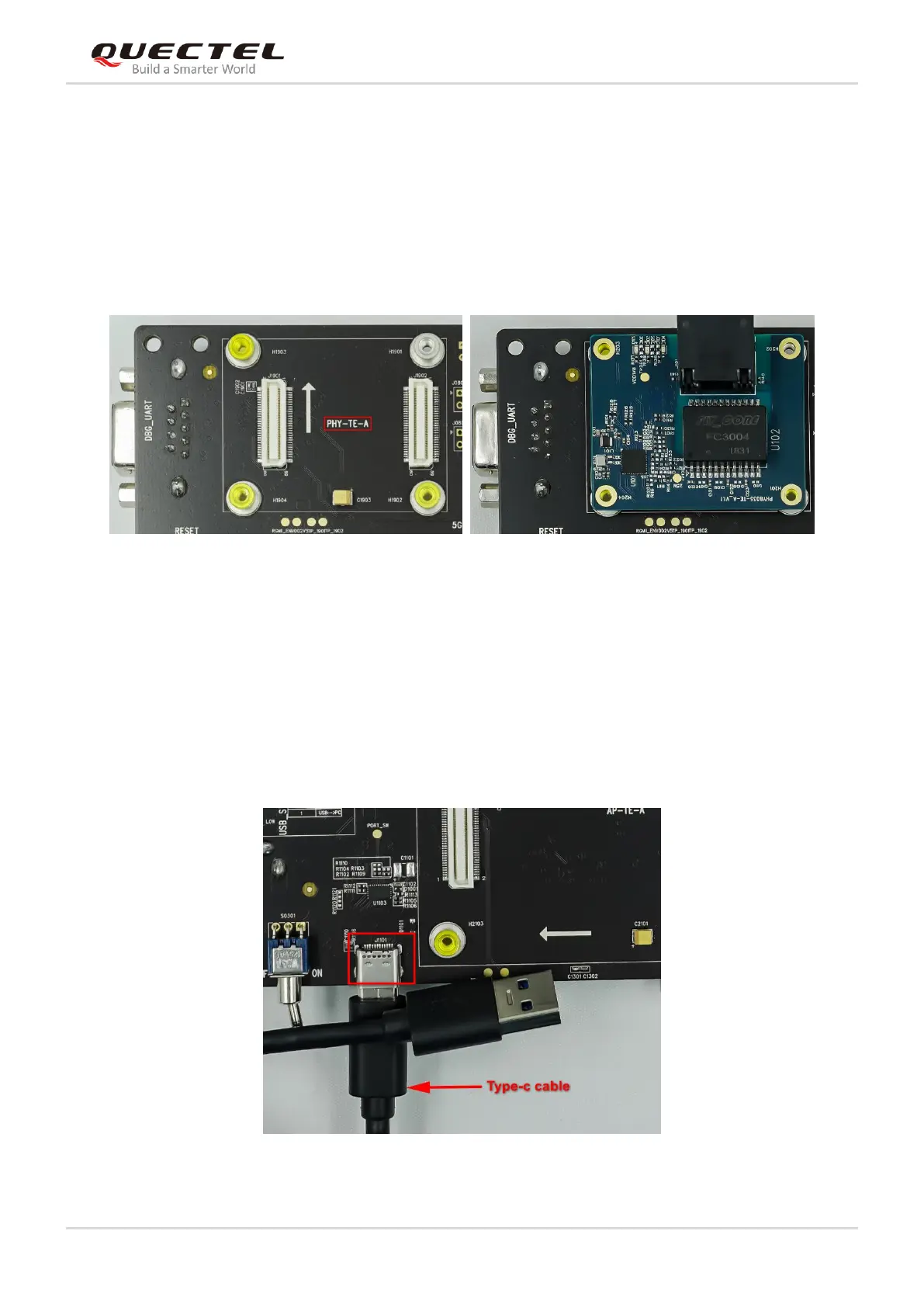

Figure 8: Connection Between AR8035-TE-A and the EVB
3.4. USB Interface (J1101)
A USB Type C connector, which complies with USB 3.0/3.1 and USB 2.0 standard, is provided. This USB
interface is used for AT command communication, data transmission and firmware upgrade.
Figure 9: USB Interface Connection
