5G Module Series
5G EVB User Guide
5G_EVB_User_Guide 27 / 36

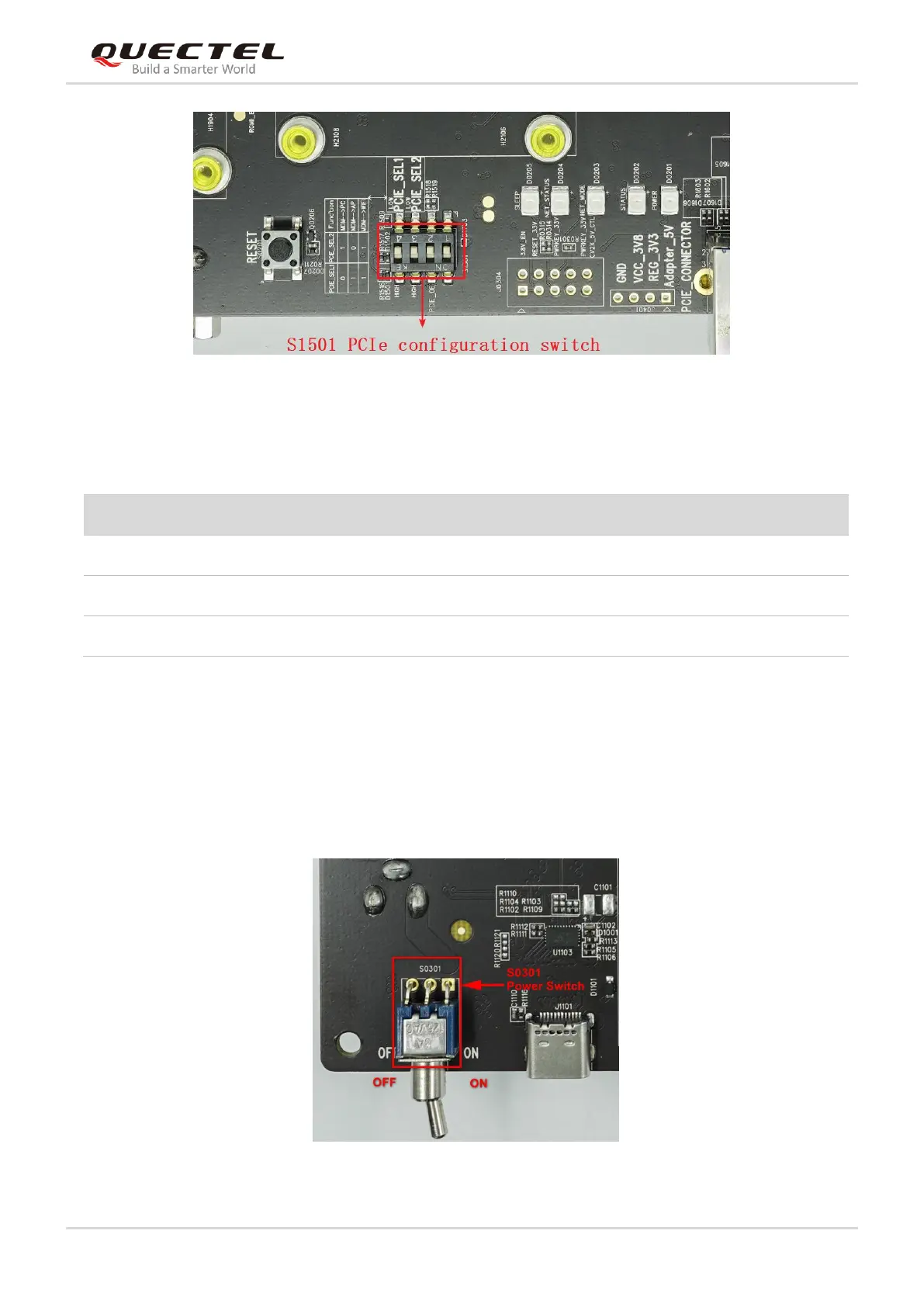

Figure 21: S1501 Switch
Table 6: PCIe Connection Truth Table
3.10. Switches and Buttons (S0301/S1501/S0201/S0202)
The 5G EVB includes two switches (S0301 and S1501) and two buttons (S0201 and S0202), as shown in
the following figures.
Figure 22: Power Switch
PCIE_SEL1
PCIE_SEL2
Function
0
1
Module PC
1
0
Module AP
1
1
Module Wi-Fi
