5G Module Series
5G EVB User Guide
5G_EVB_User_Guide 29 / 36
3.11. Status Indicators (D0201/D0202/D0203/D0204/D0205)
There are five status indication LEDs on the EVB. The following figure manifests the positions of these
LED indicators.

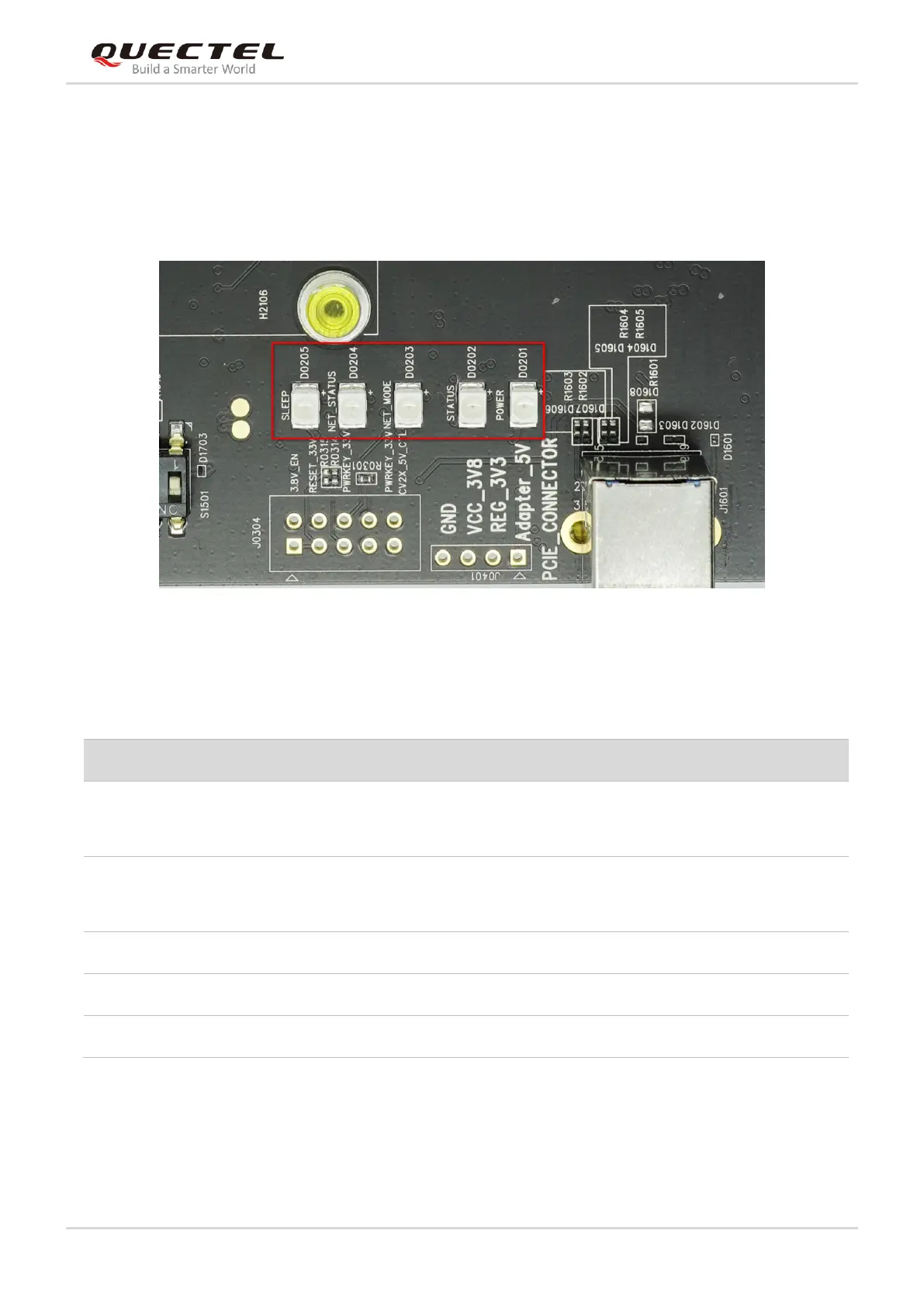

Figure 24: Status Indicator
Table 8: Description of Status Indication LEDs
Indicates whether the power supply for module is ready.
On: VBAT ON
Off: VBAT OFF
Indicates the operation status of the module
On: the module is powered on
Off: the module is powered off
Indicate the module’s NET_MODE status.
Indicate the module’s NET_STATUS status.
Indicate the module’s SLEEP status.
