3.13. Antenna Interfaces
The 5G EVB includes twelve antenna interfaces. The following figure shows the assembly of these
antenna interfaces.

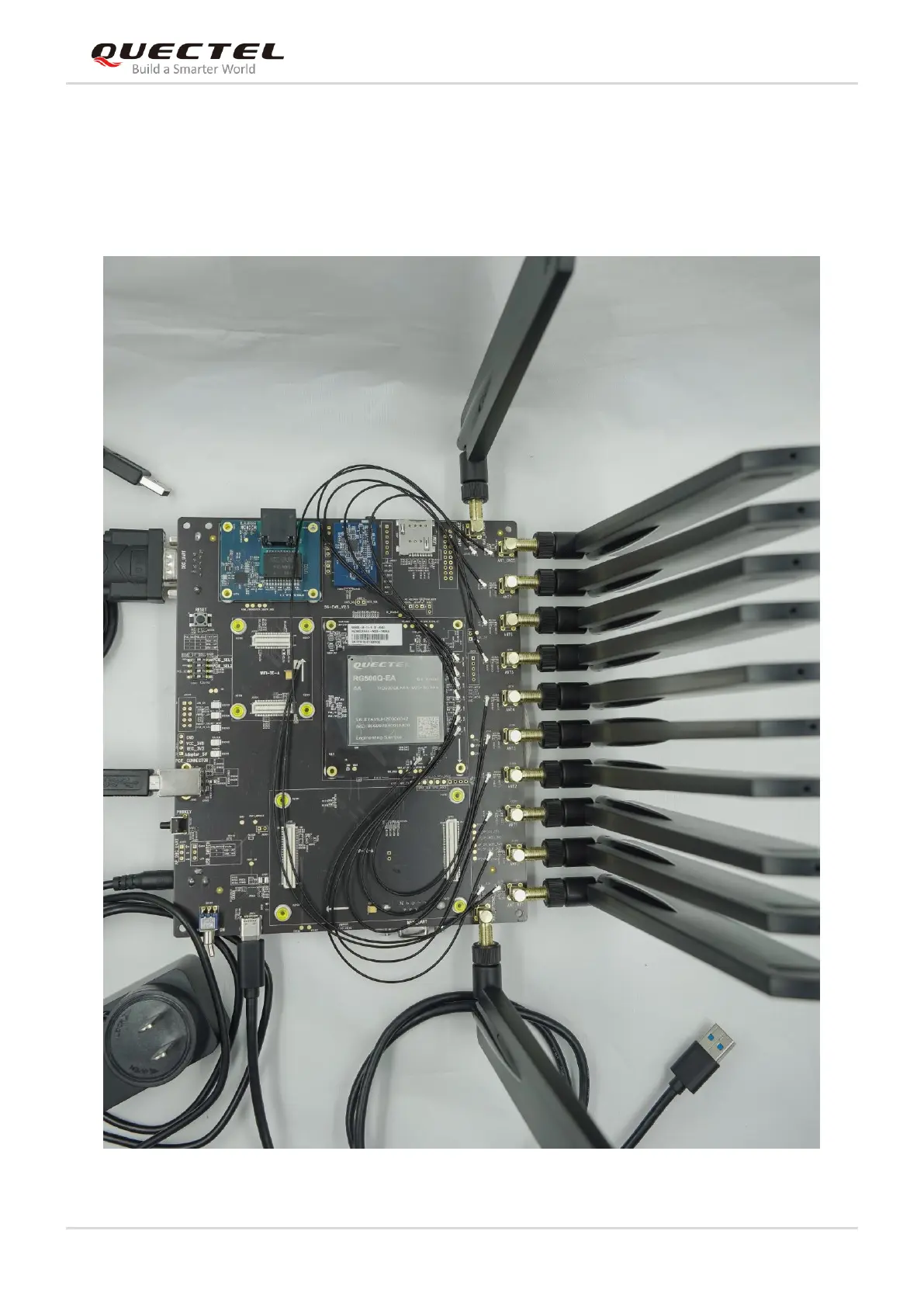

Figure 27: Antenna Interfaces
