5G Module Series
5G EVB User Guide
5G_EVB_User_Guide 13 / 36
2.3. Top and Bottom Views of 5G EVB
The following figures shows the top and bottom views of the 5G EVB.

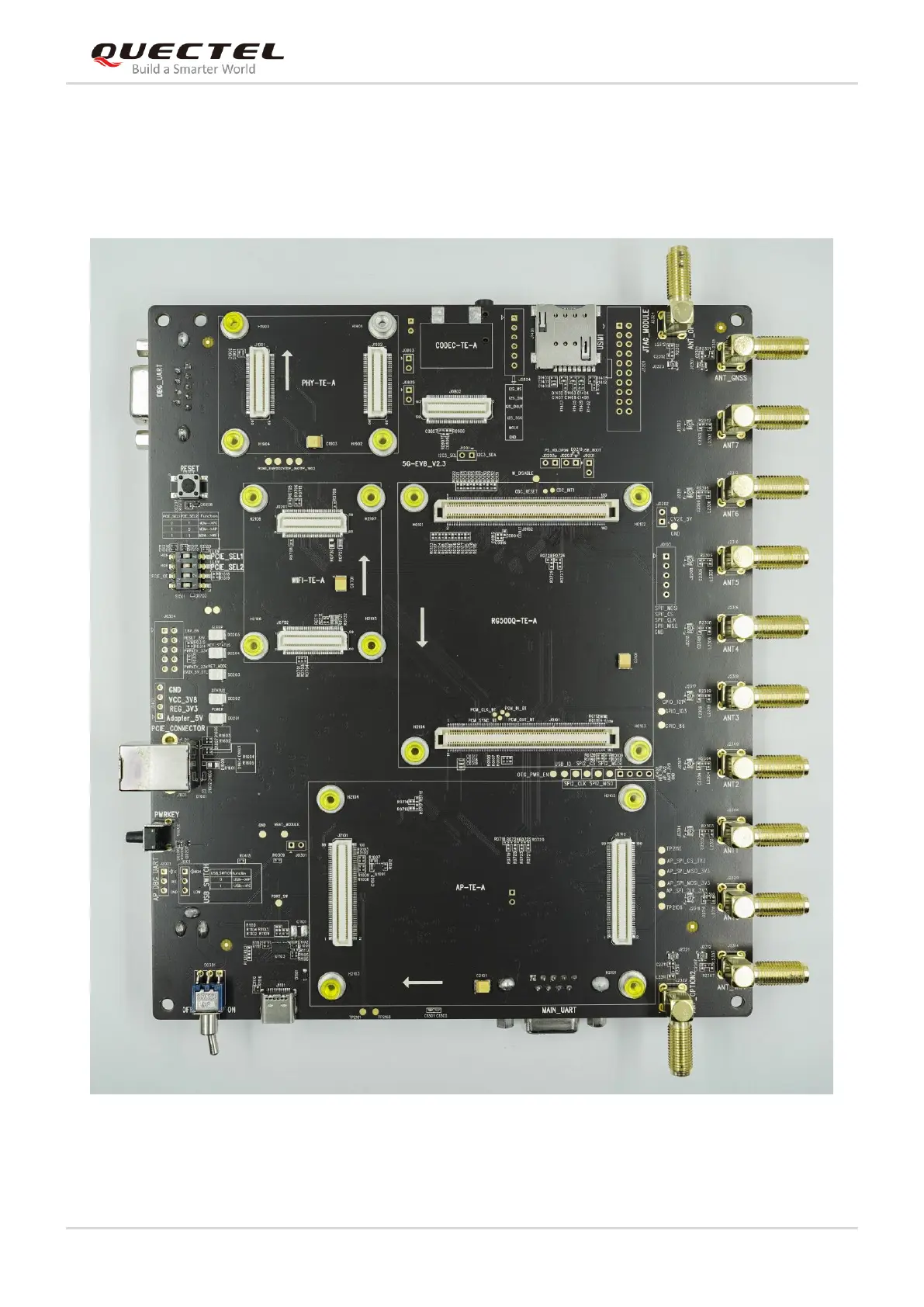

Figure 3: 5G EVB Top View
