7 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm,
and the dimensional tolerances are ±0.05mm unless otherwise specified.
7.1. Mechanical Dimensions of the Module
32.0±0.15
29.0±0.15
0.8
2.4±0.2

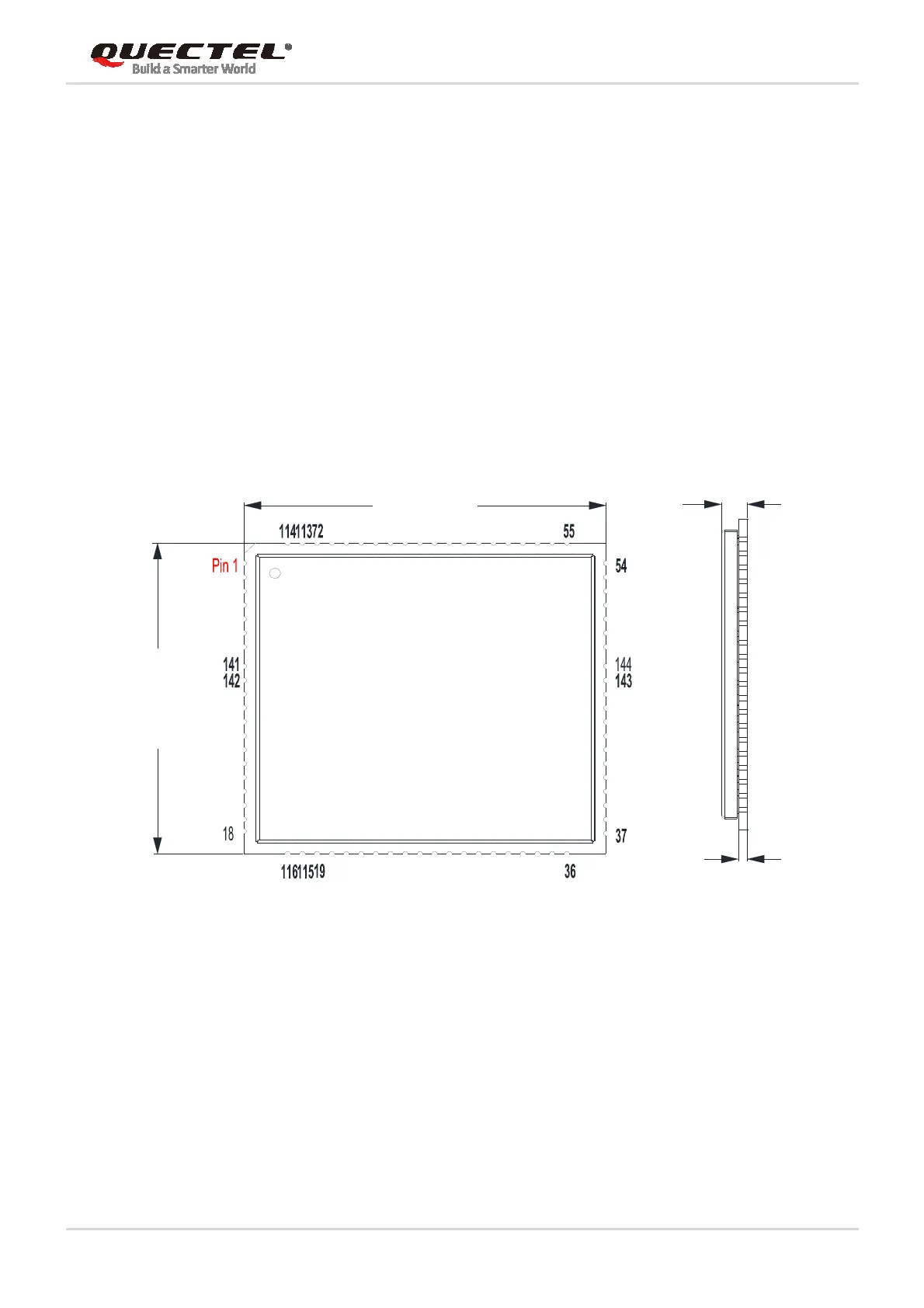

Figure 44: Module Top and Side Dimensions
