7.2. Recommended Footprint

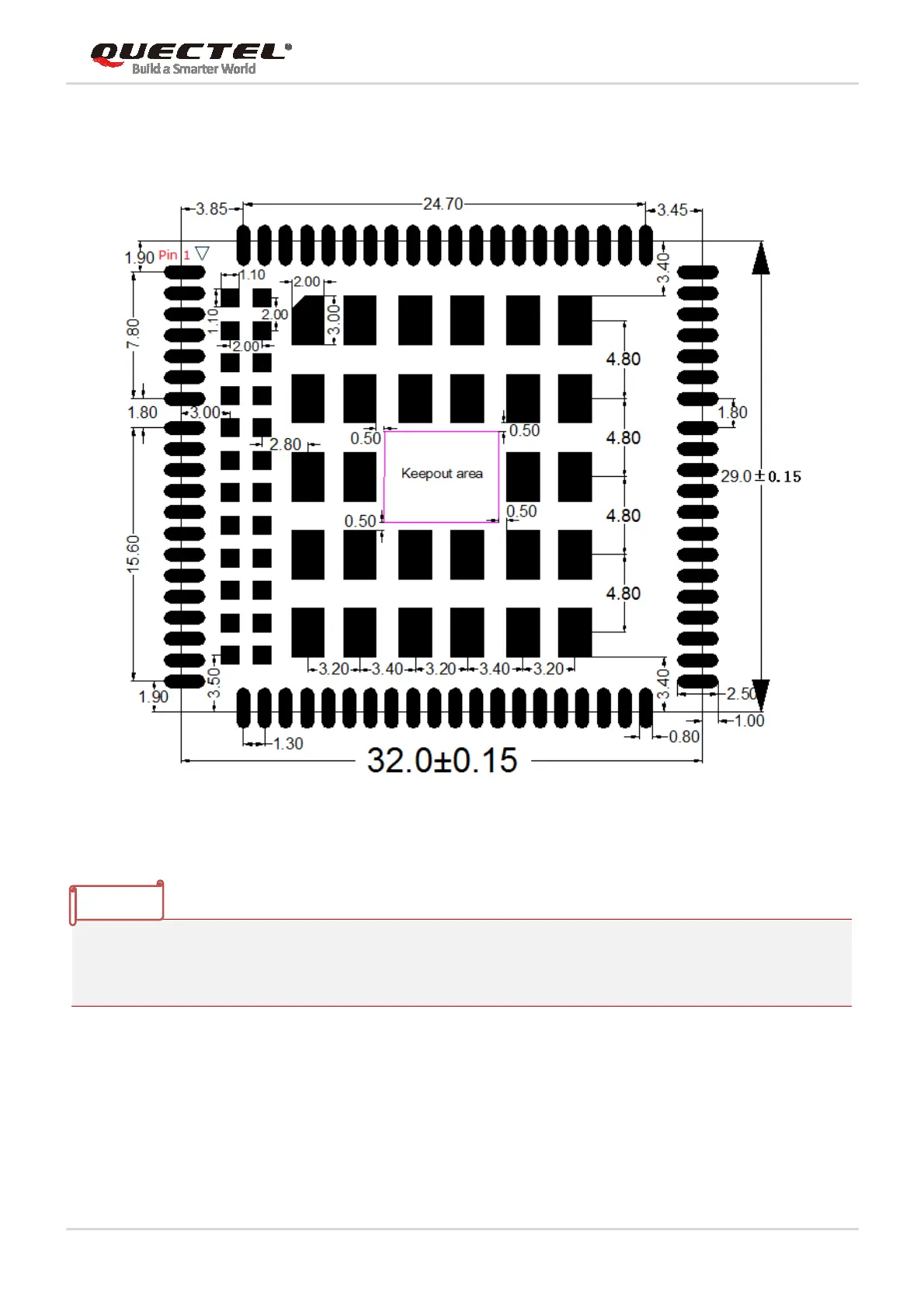

Figure 46: Recommended Footprint (Top View)
1. The keepout area should not be designed.
2. For easy maintenance of the module, please keep about 3mm between the module and other
components in the host PCB.
