Table 20: Pin Definition of Network Connection Status/Activity Indicator
Table 21: Working State of Network Connection Status/Activity Indicator

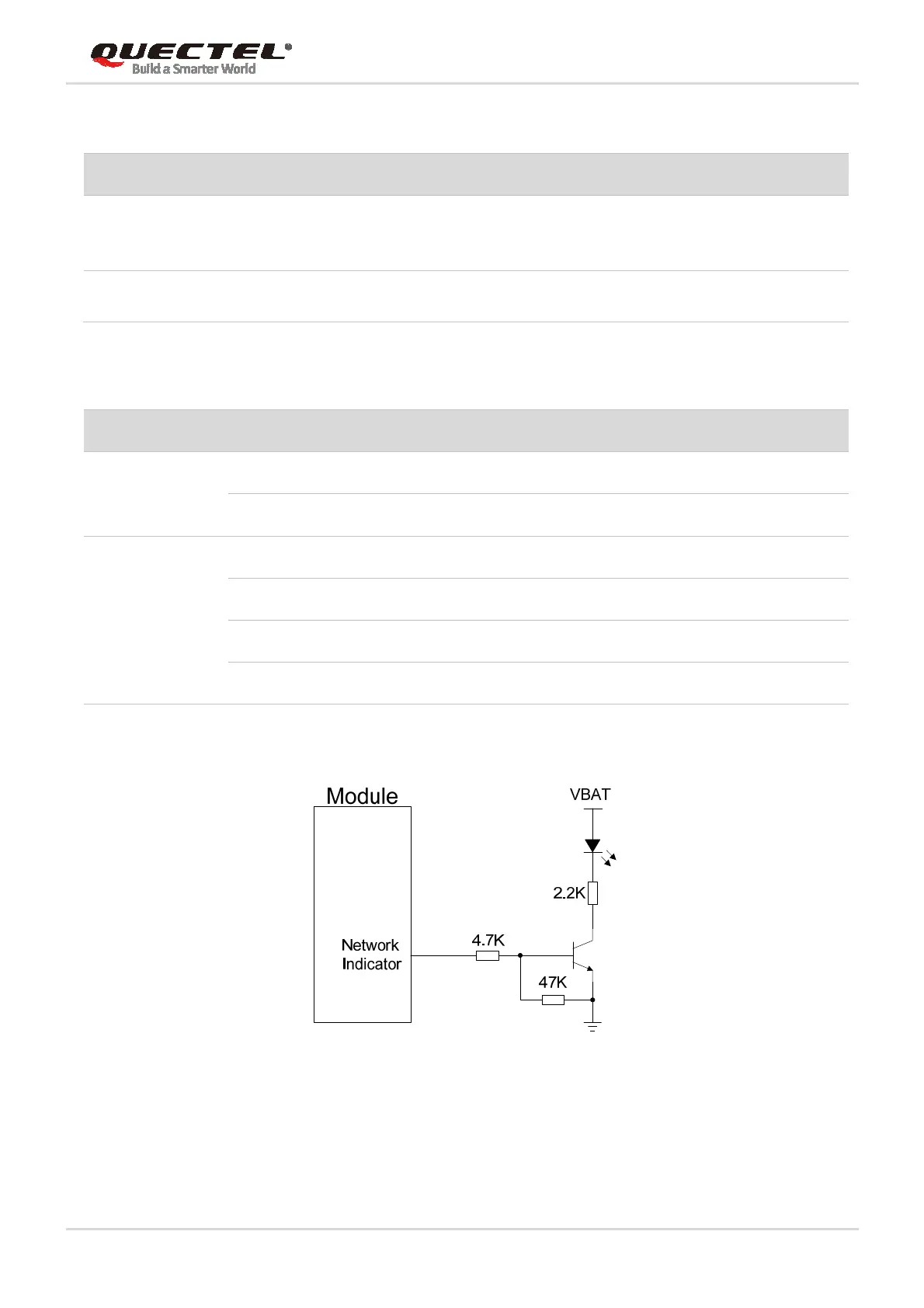

A reference circuit is shown in the following figure.
Figure 29: Reference Circuit of the Network Indicator
Pin Name Pin No. I/O Description Comment
NET_MODE 5 DO
Indicate the module’s network
registration mode
1.8V power domain
Cannot be pulled up
before startup
NET_STATUS 6 DO
Indicate the module’s network activity
status
1.8V power domain
Pin Name Logic Level Changes Network Status
NET_MODE
Always High Registered on LTE network
Always Low Others
NET_STATUS
Flicker slowly (200ms High/1800ms Low) Network searching
Flicker slowly (1800ms High/200ms Low) Idle
Flicker quickly (125ms High/125ms Low) Data transfer is ongoing
Always High Voice calling
