LTE Standard Module Series
EC25 Hardware Design
EC25_Hardware_Design 79 / 130

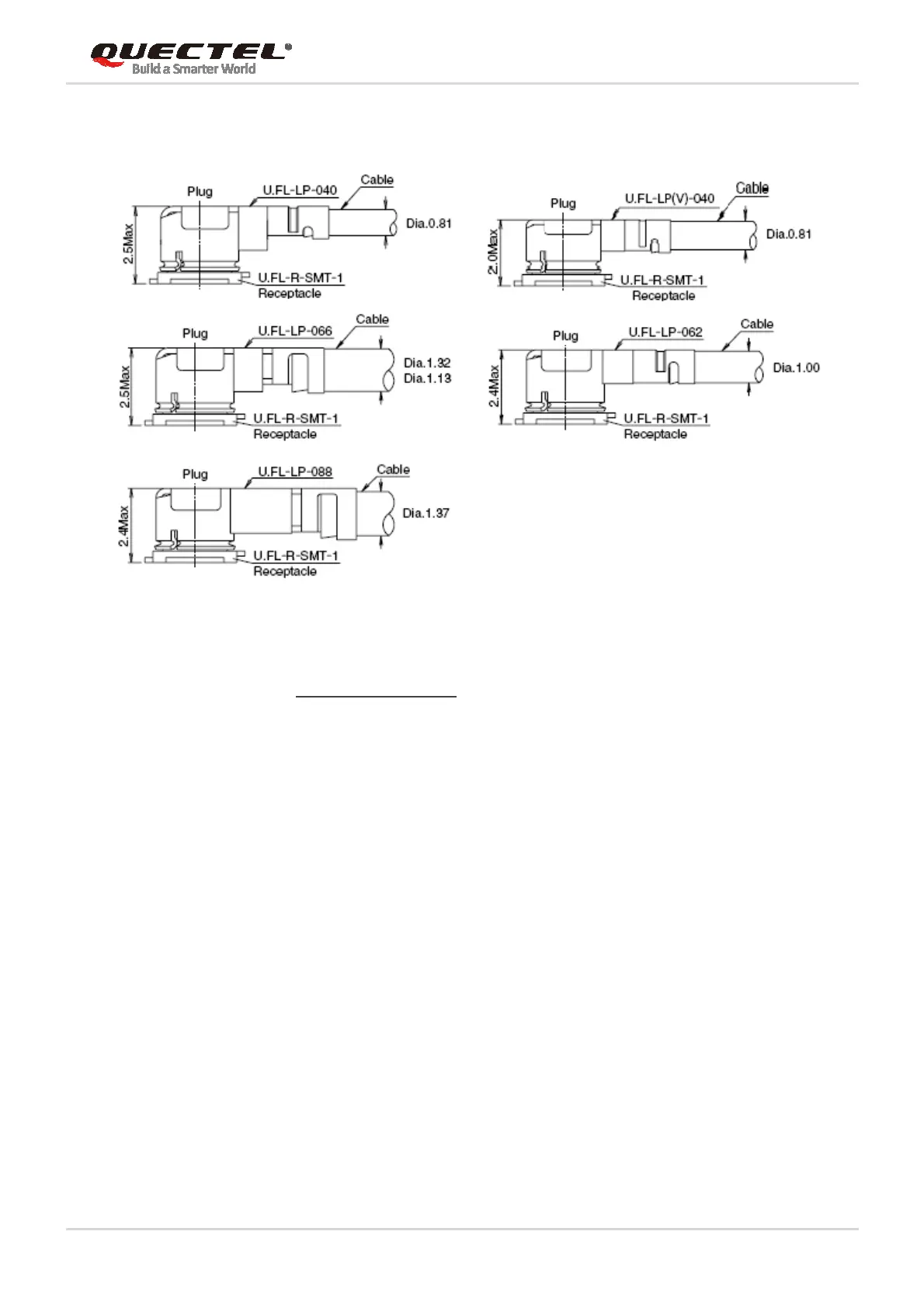

The following figure describes the space factor of mated connector.
Figure 41: Space Factor of Mated Connector (Unit: mm)
For more details, please visit http://www.hirose.com
.
