LTE Module Series
EC25-V User Manual
EC25-V_User_Manual Confidential / Released 51 /
69
You can use U.FL-LP serial connector listed in the following figure to match the UF.L-R-SMT.

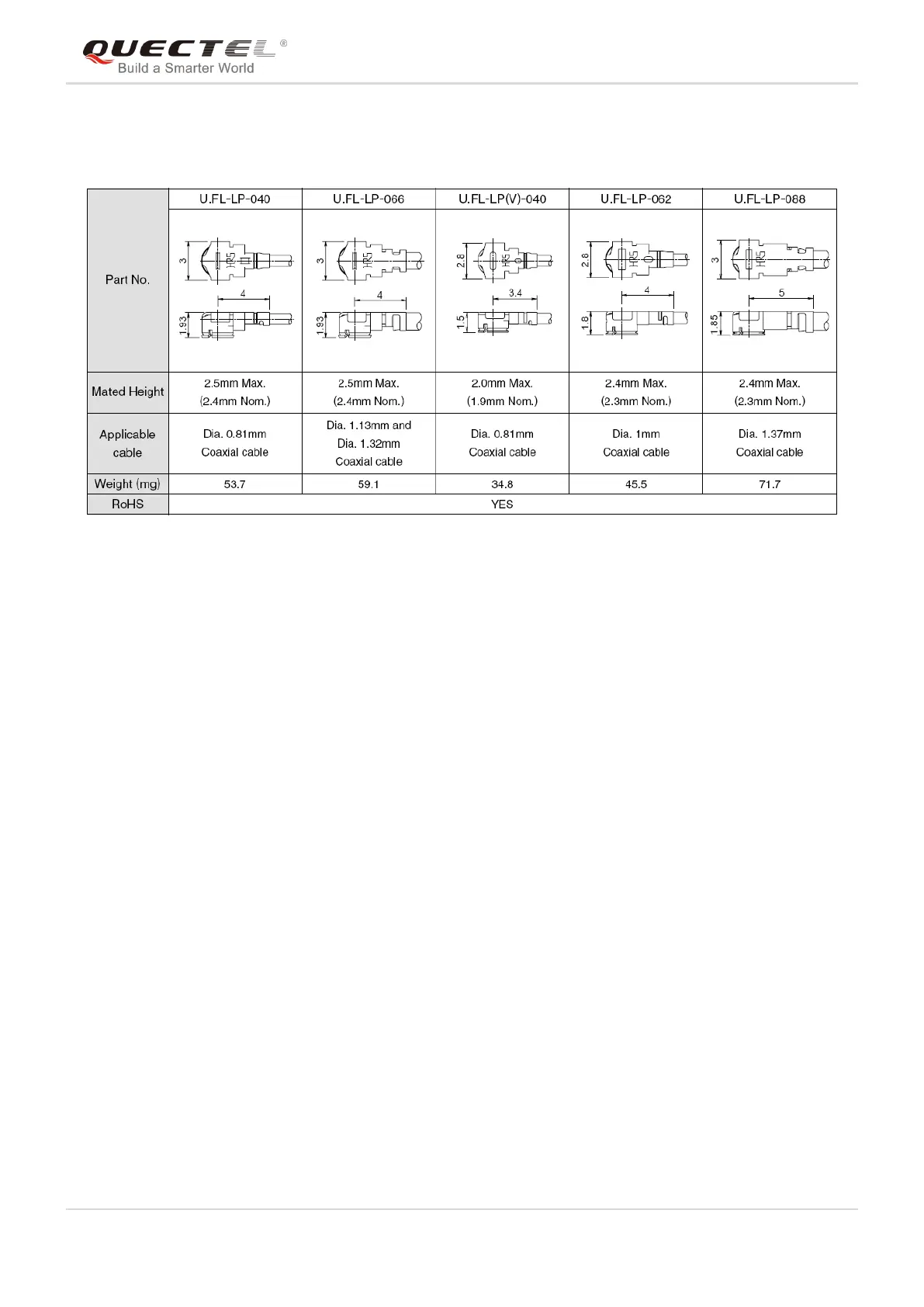

Figure 30: Mechanicals of UF.L-LP Connectors
