Quectel EC25-V - Footprint of Recommendation

LTE Module Series
EC25-V User Manual
EC25-V_User_Manual Confidential / Released 58 /
69
7.2. Footprint of Recommendation
Keepout area
29.0
32.0

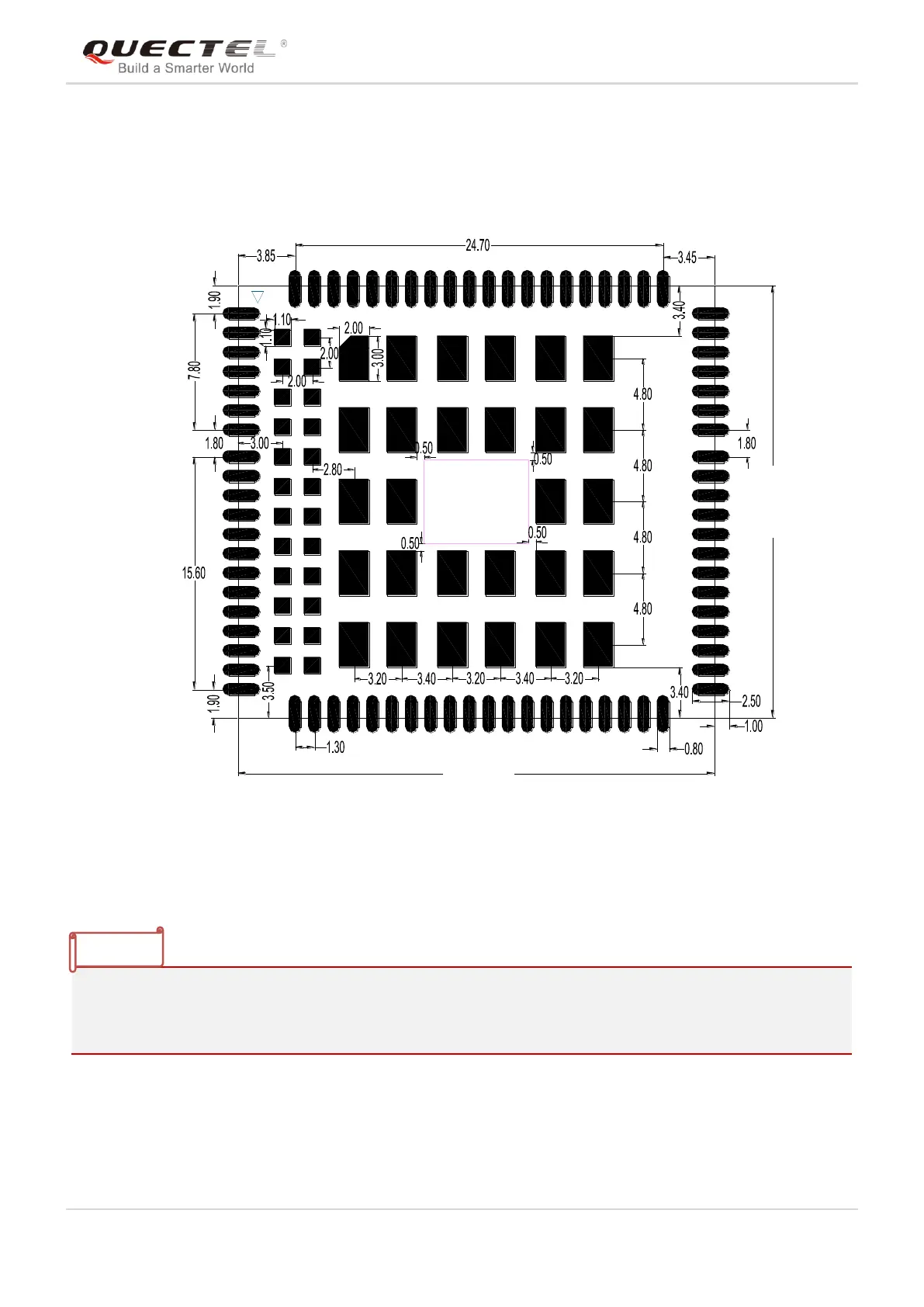

Figure 34: Recommended Footprint (Top View)
1. Pads 73~84 should not be designed.
2. In order to maintain the module, keep about 3mm between the module and other components in the
host PCB.
NOTES
